System Diagram

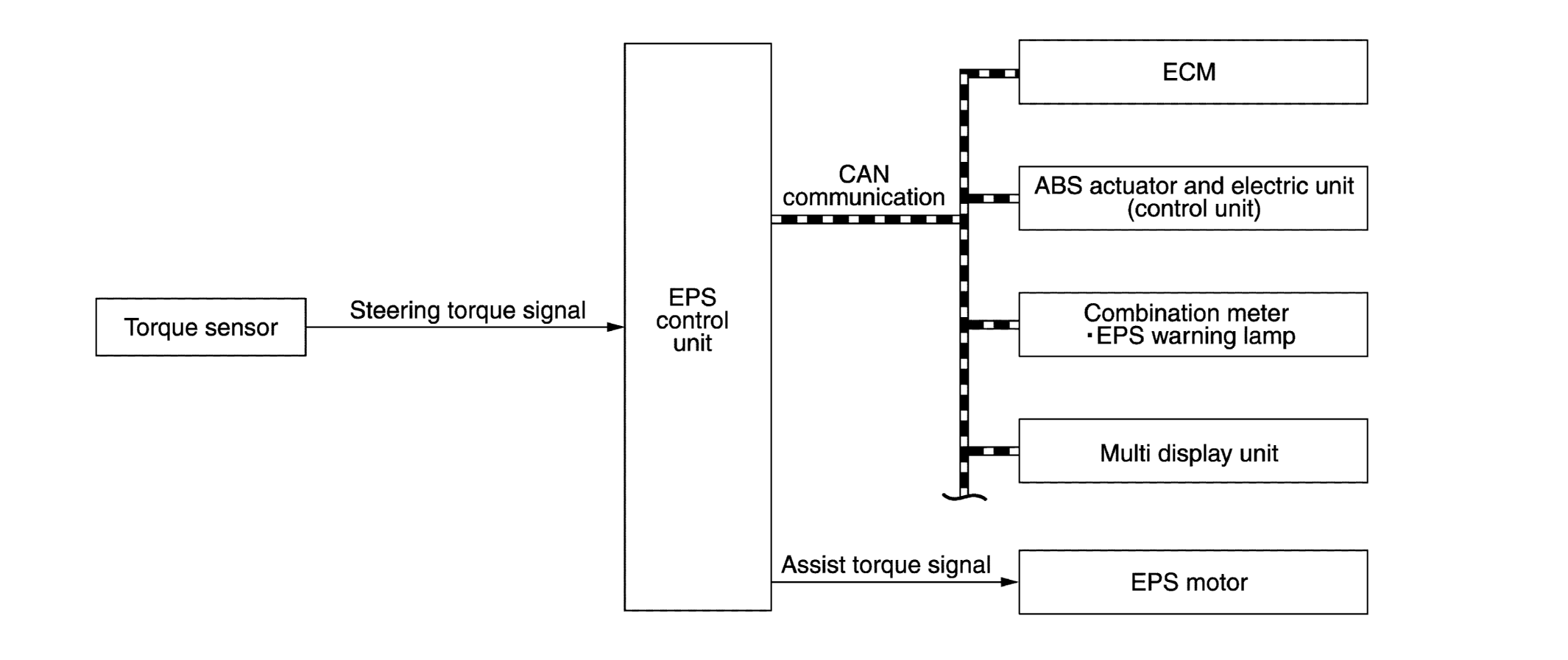

Fig 1: EPS System Diagram
G06933784Courtesy of NISSAN MOTOR CO., U.S.A.

Multi display unit is applied to models with Integrated Control System.
