Control Assembly: Service and Repair

A/C CONTROL (A/C AUTO AMP.)

Removal and Installation


REMOVAL

1.Remove cluster lid C. Refer to "Removal and Installation" Removal And Installation.

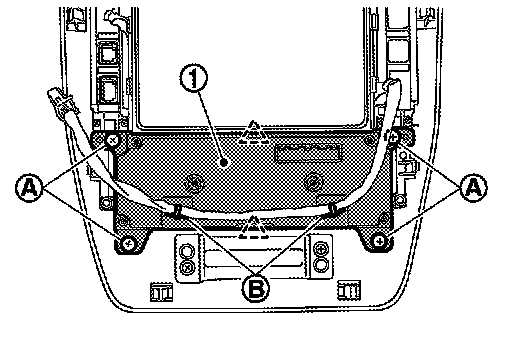

2.Remove fixing screws (A) and harness clips (B).
3.Disengage fixing pawls, and then remove A/C control (1) from cluster lid C.


INSTALLATION

Install in the reverse order of removal.
