Specification




DESCRIPTION

Specification

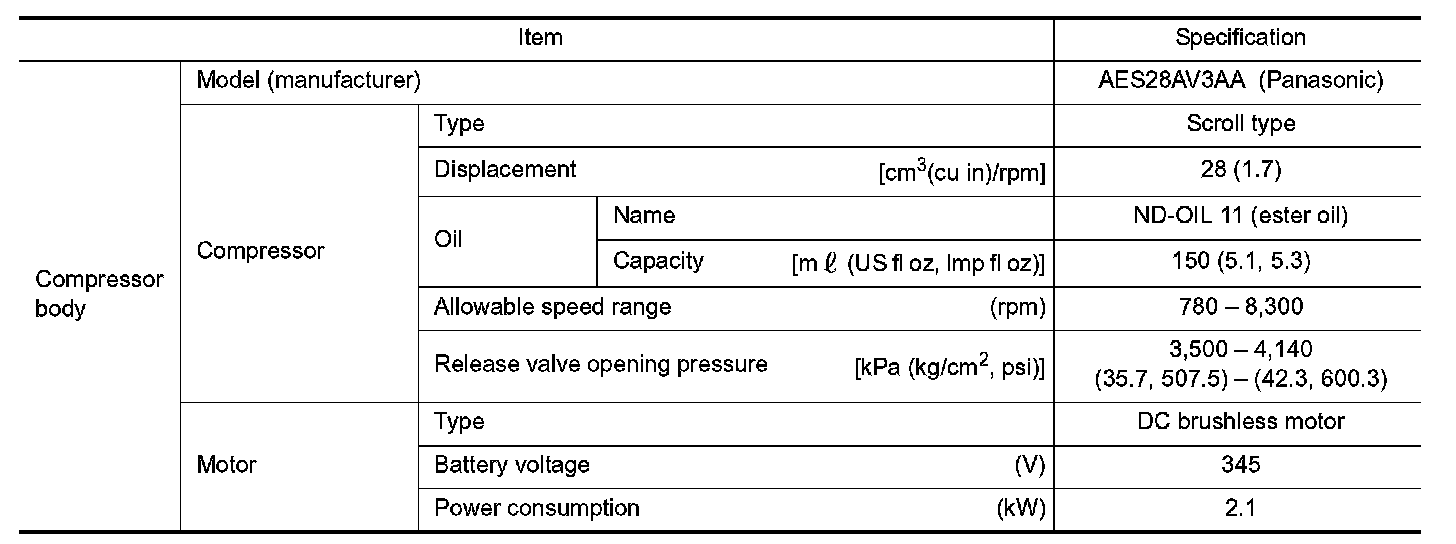

COMPRESSOR

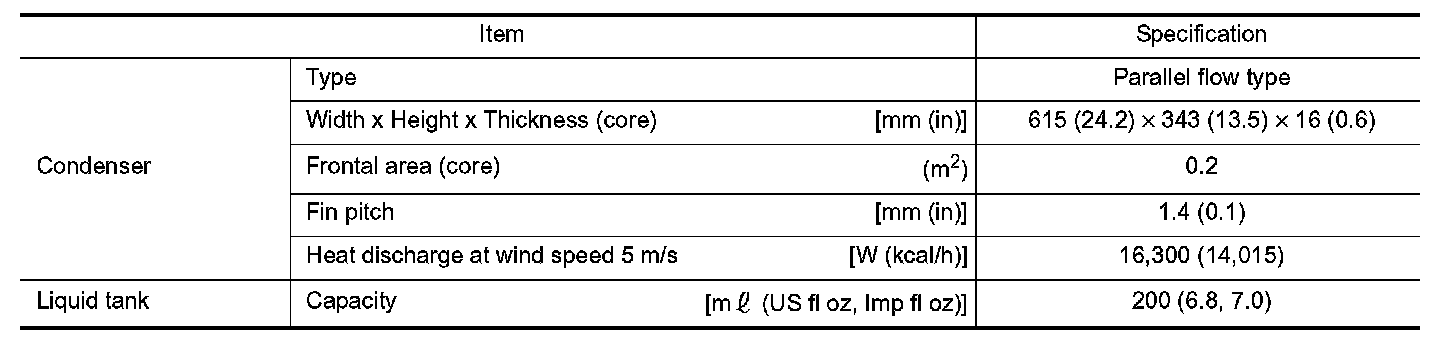

CONDENSER & LIQUID TANK

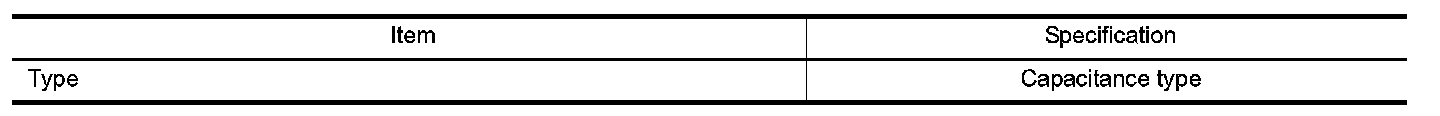

REFRIGERANT PRESSURE SENSOR

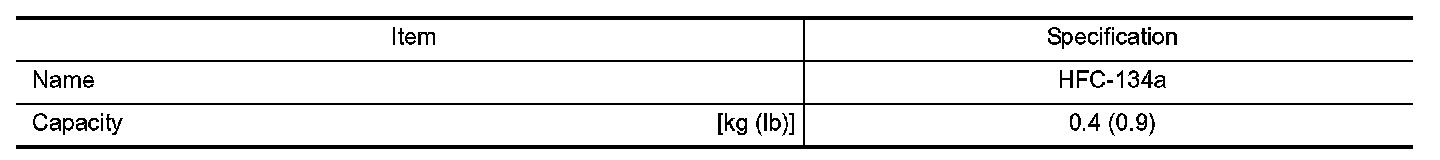

REFRIGERANT

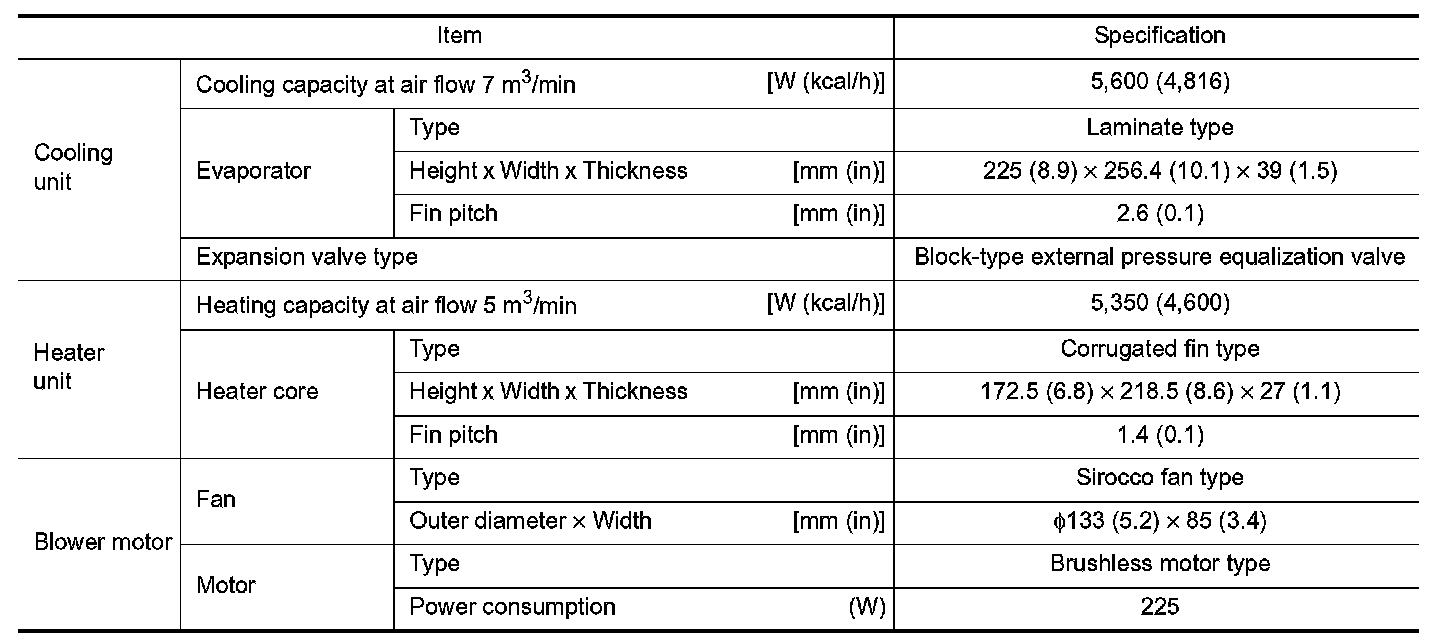

A/C UNIT

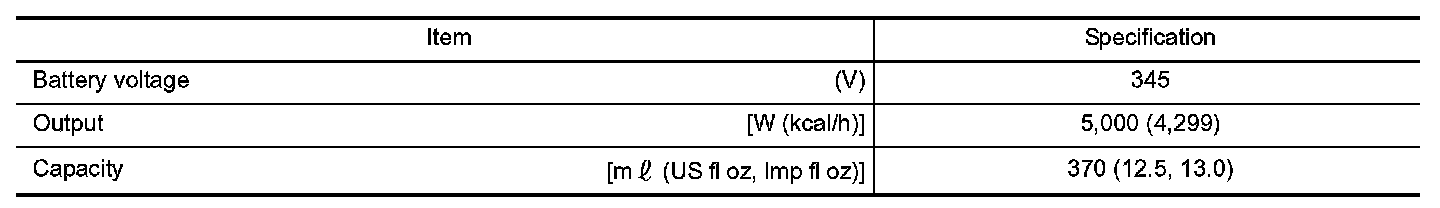

PTC ELEMENT HEATER

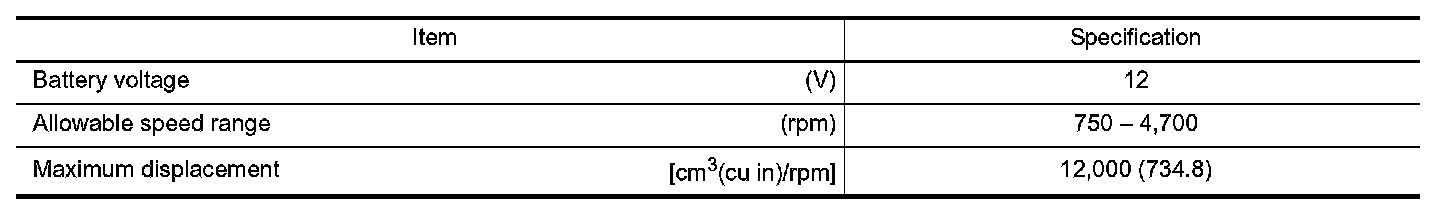

HEATER PUMP
