CONSULT Function




DIAGNOSIS SYSTEM (BCM)

INT LAMP : CONSULT Function (BCM - INT LAMP)

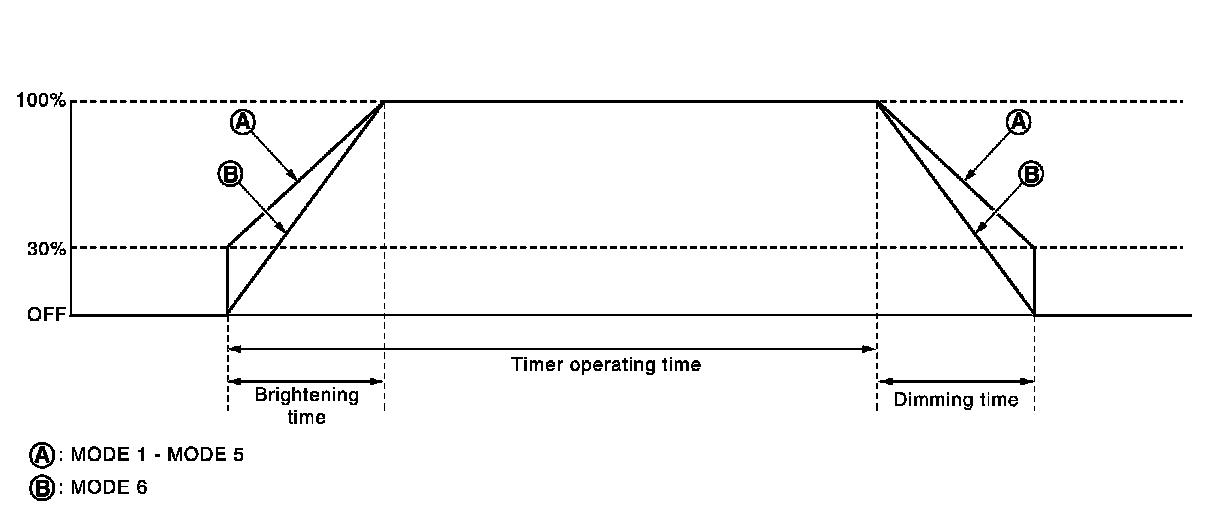

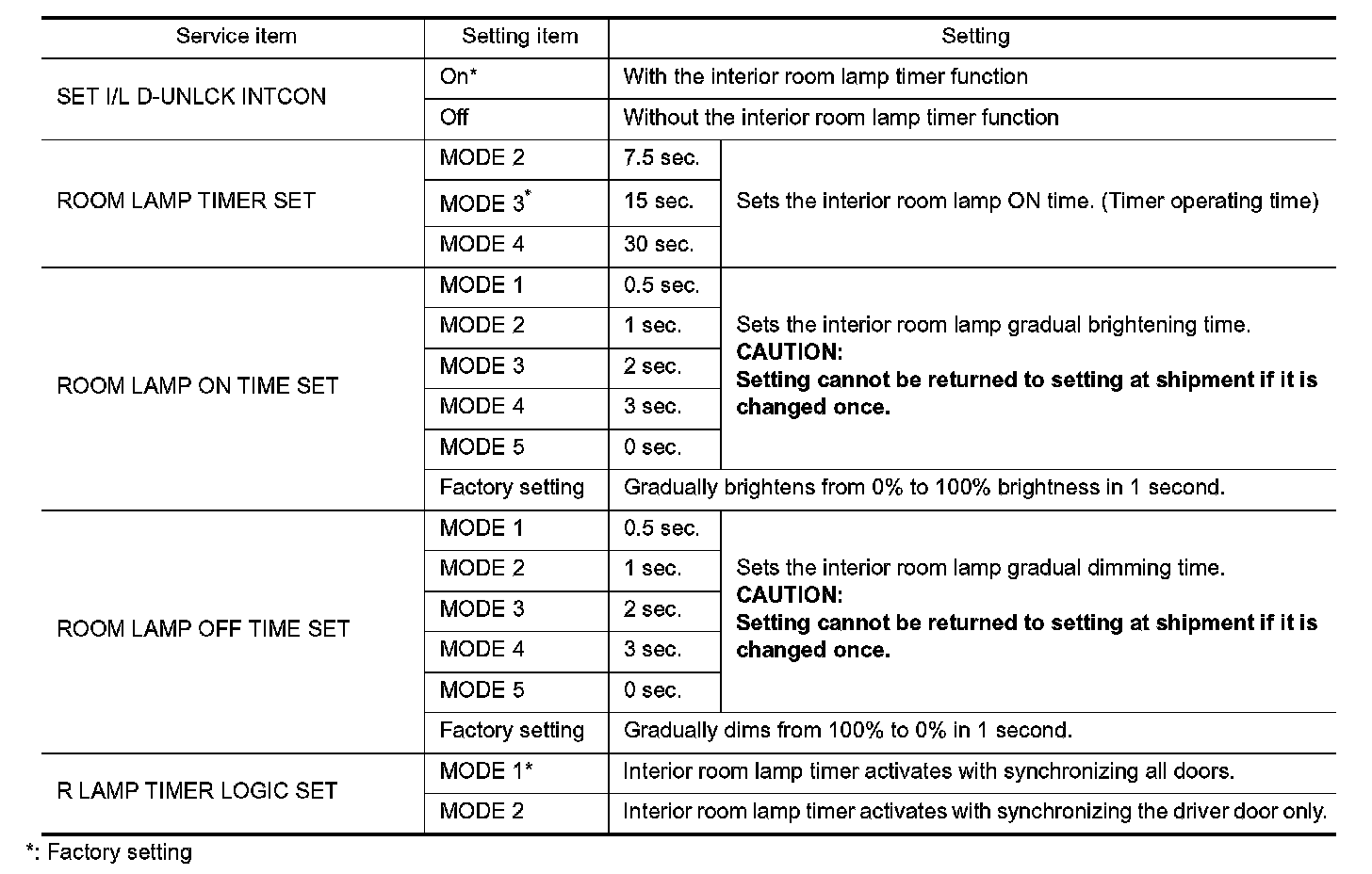

WORK SUPPORT

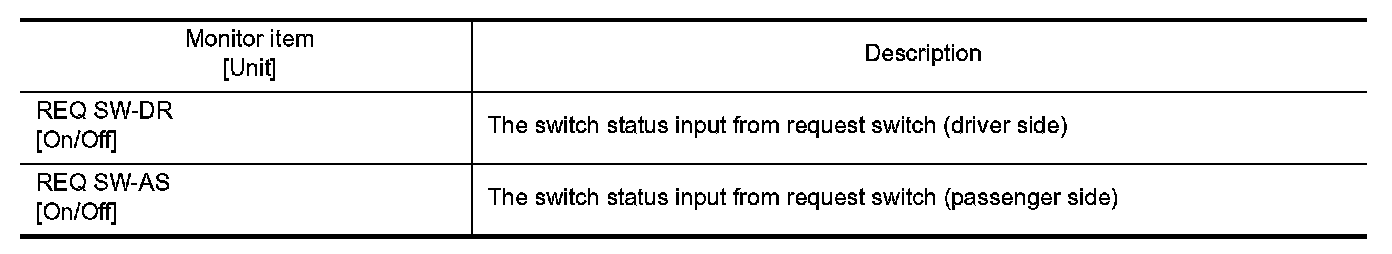

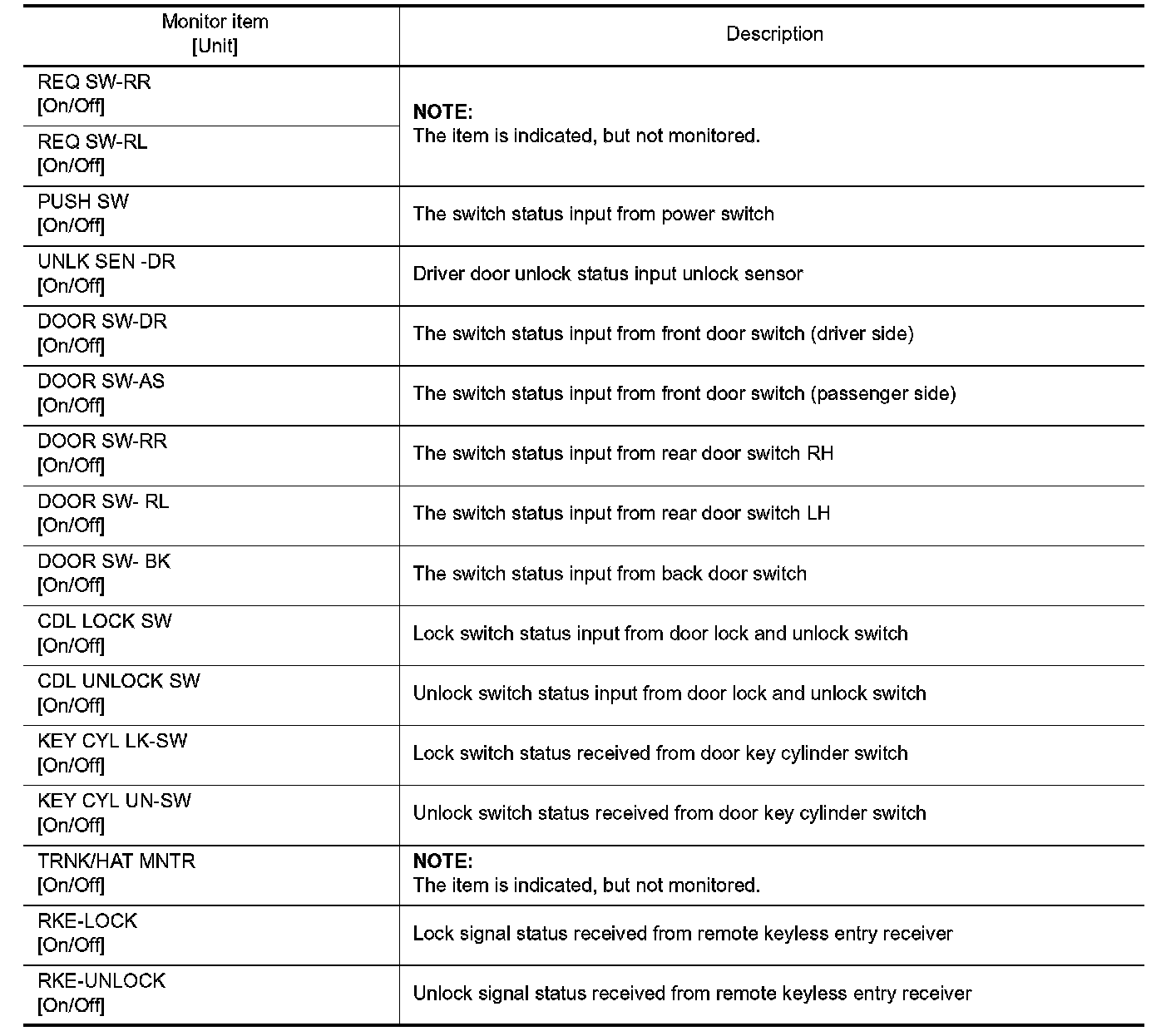

DATA MONITOR

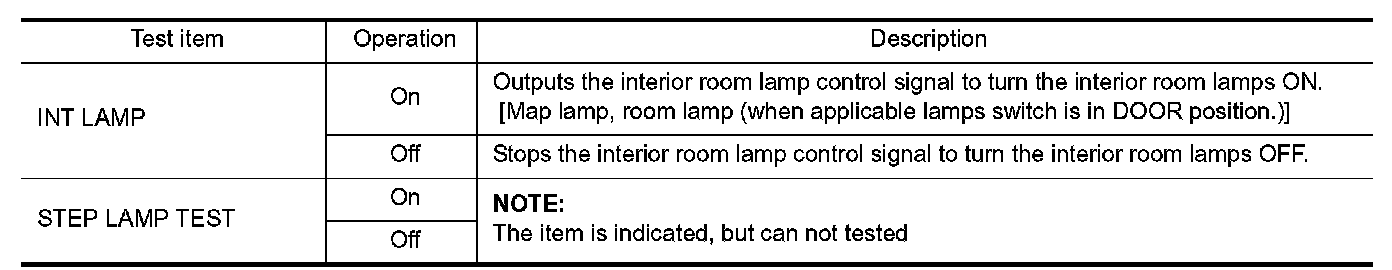

ACTIVE TEST
