CONSULT Function (IPDM E/R)

DIAGNOSIS SYSTEM (IPDM E/R)

CONSULT Function (IPDM E/R)

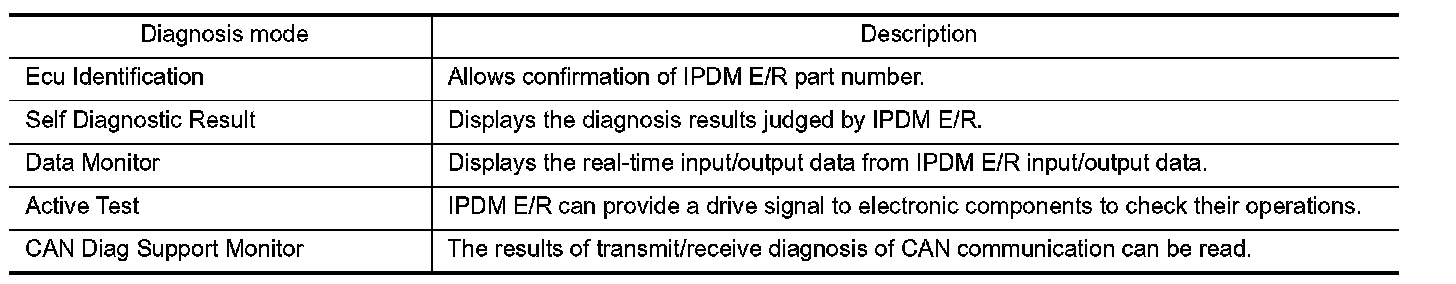

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with IPDM E/R.






SELF DIAGNOSTIC RESULT

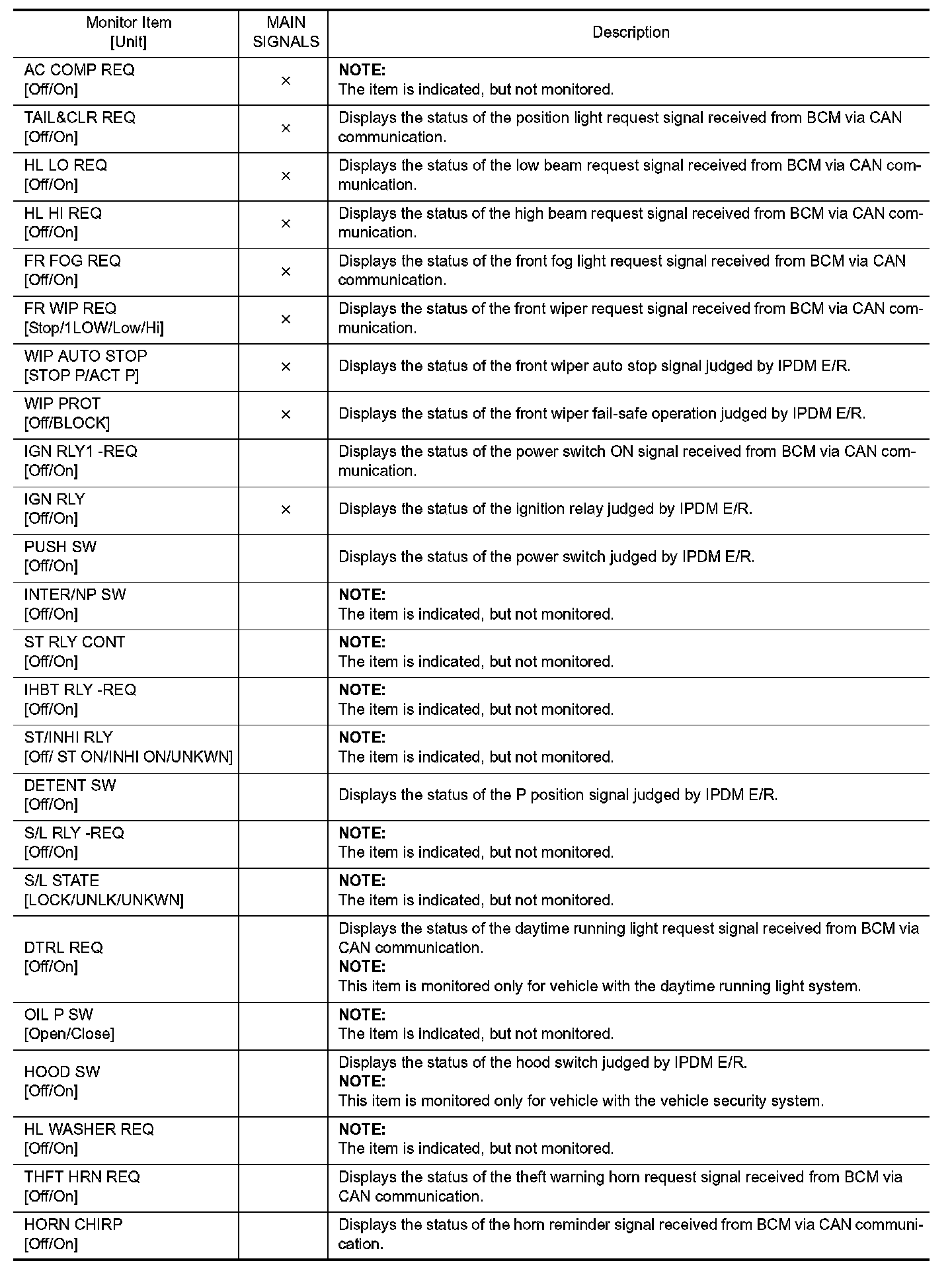

DATA MONITOR

Monitor item

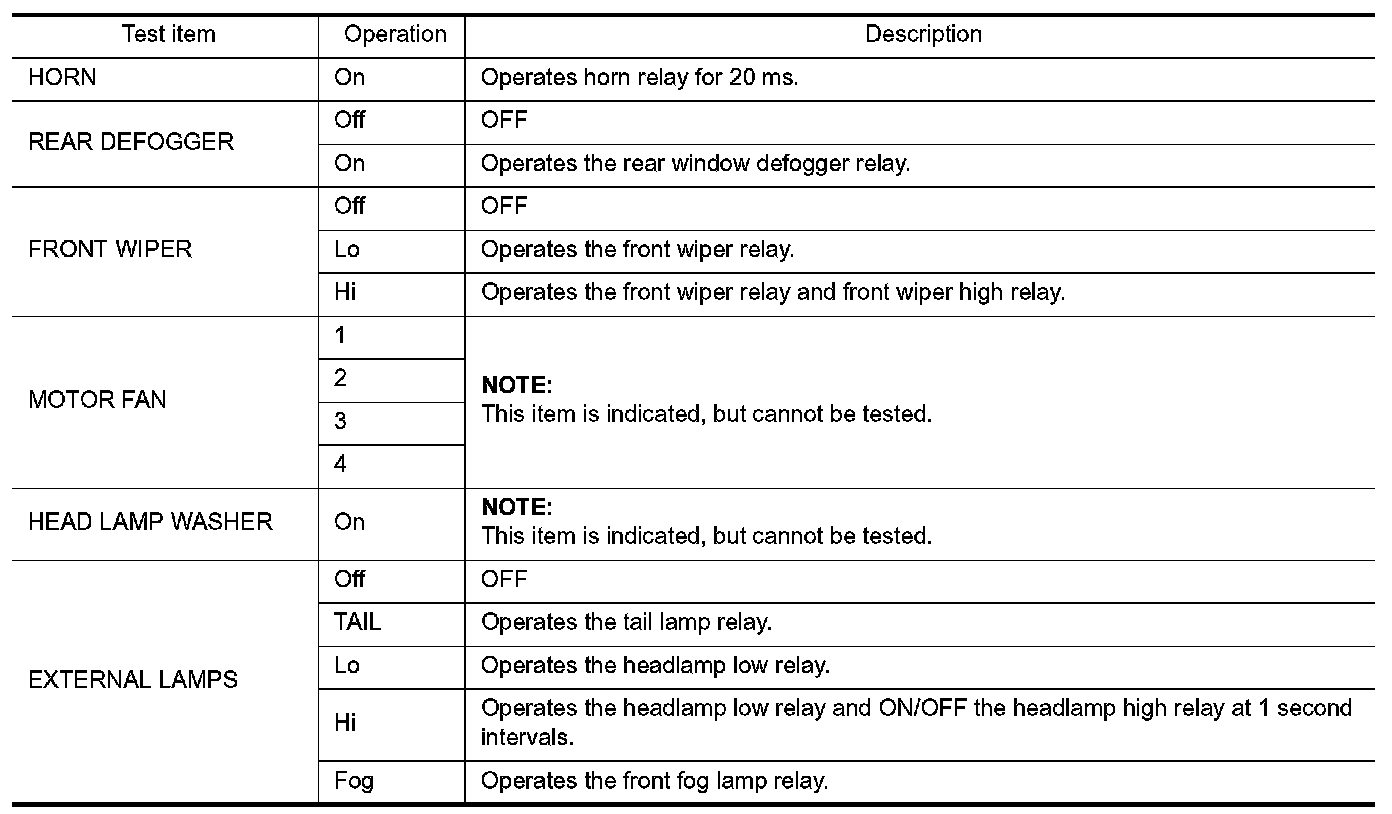

ACTIVE TEST

Test item
