CAN System Specification Chart




SYSTEM

CAN COMMUNICATION SYSTEM : CAN System Specification Chart

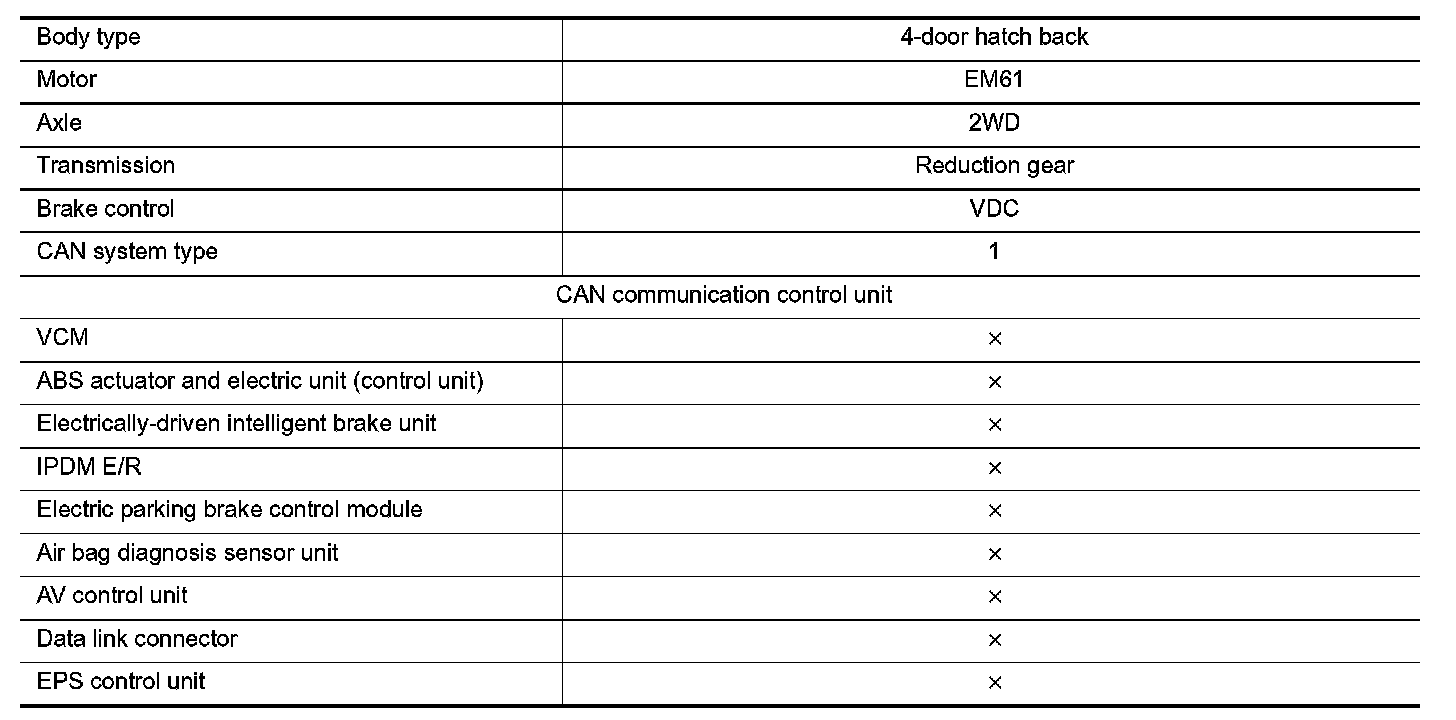

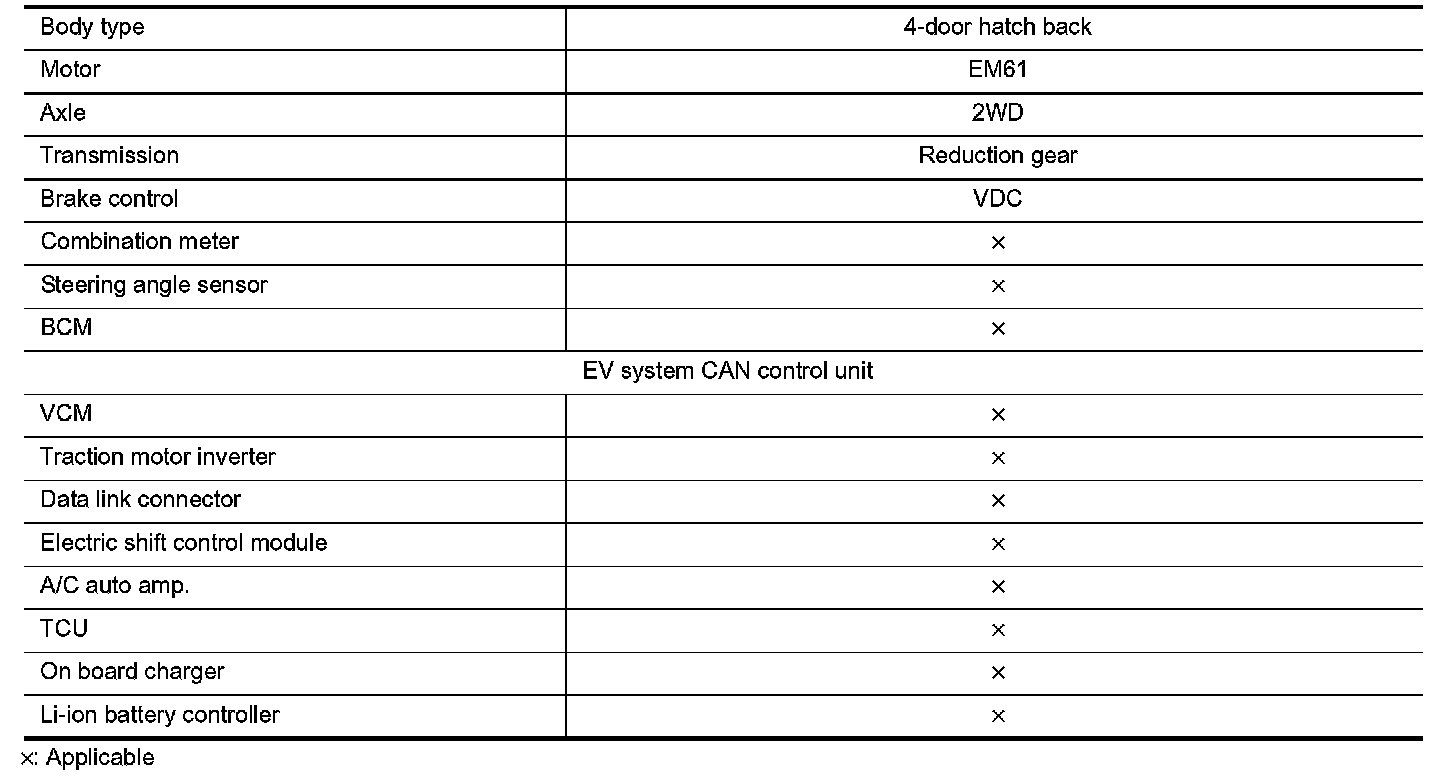

Determine CAN system type from the following specification chart.
NOTE:
Refer to "Trouble Diagnosis Procedure" Trouble Diagnosis Procedure for how to use CAN system specification chart.
