System Description: System: Schematic

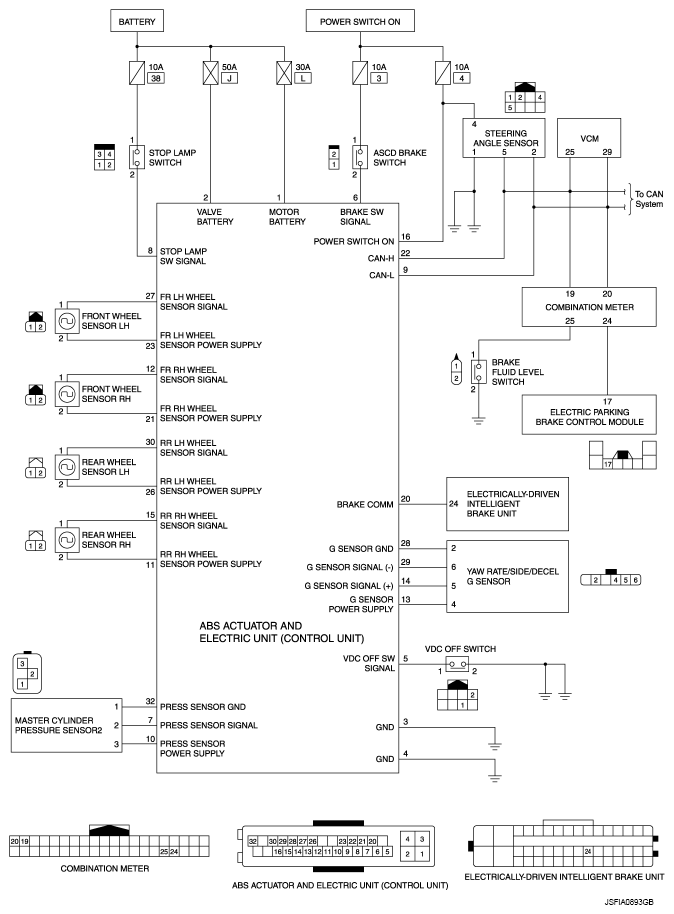

Fig 1: ABS Actuator And Electric Unit (Control Unit) Schematic
G07086913Courtesy of NISSAN MOTOR CO., U.S.A.
