TCS FUNCTION : System Description
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

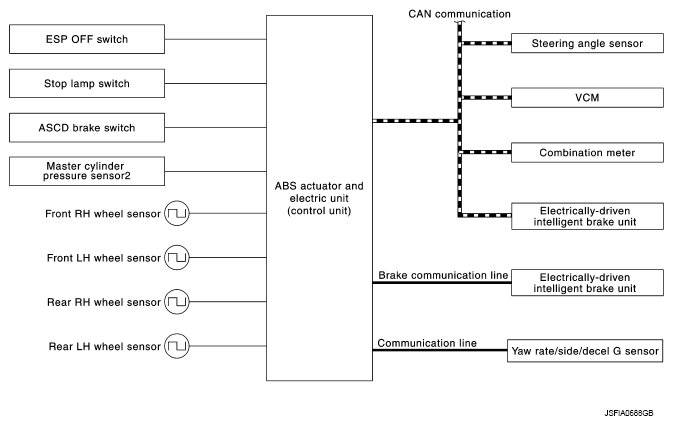

Fig 1: CAN Communication Diagram Of ABS Actuator And Electric Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
