Lubrication System: Schematic

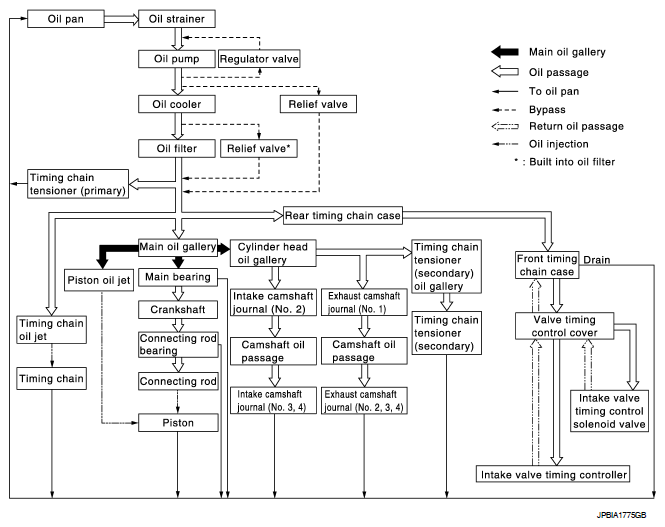

Fig 1: Lubrication System Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
