Component Inspection

CHECK BATTERY CURRENT SENSOR

Turn ignition switch OFF.
Reconnect harness connectors disconnected.
Disconnect battery negative cable (1).

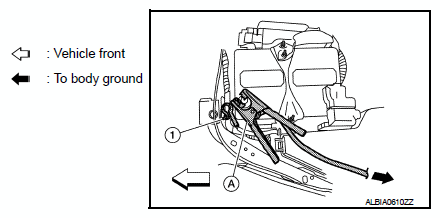

Fig 1: Disconnecting Battery Negative Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
Install jumper cable (A) between battery negative terminal and body ground.
Turn ignition switch ON.

Check the voltage between ECM harness connector terminals under the following conditions.

Fig 2: Checking Voltage Between ECM Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

VOLTAGE REFERENCE CHART

ECM			Voltage (V)
Connector	+	-
Connector	Terminal	Terminal
F13	42 (Battery current sensor signal)	44 (Sensor ground)	Approx. 2.5

Before measuring the terminal voltage, confirm that the battery is fully charged.

Is the inspection result normal?

YES >> INSPECTION END

NO >> Replace battery negative cable assembly.
