Overall Sequence

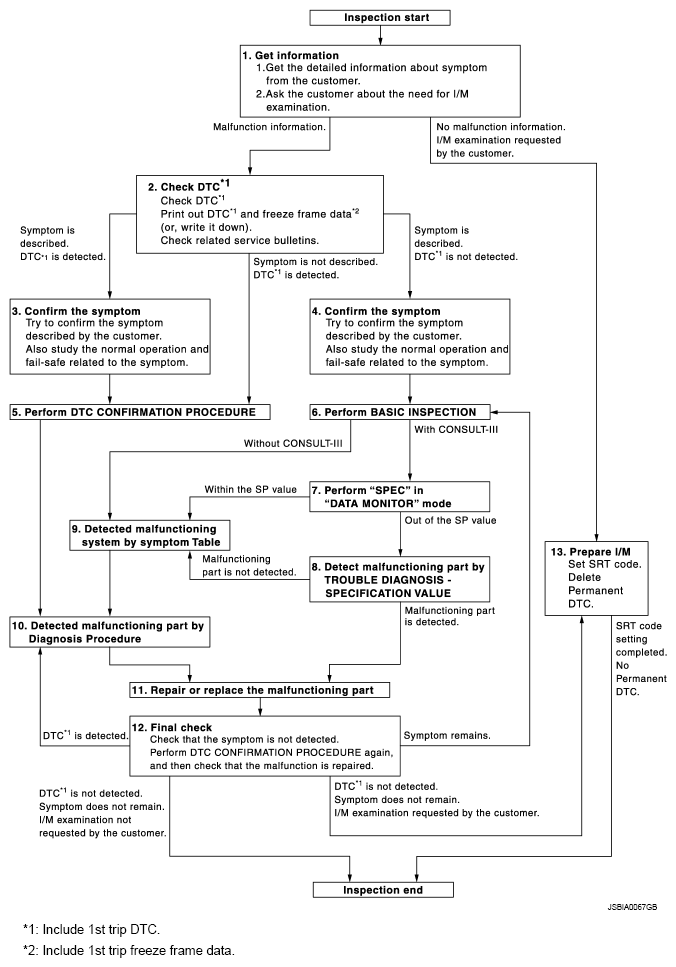

Fig 1: Diagnosis And Repair Workflow
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
