Component Parts Location

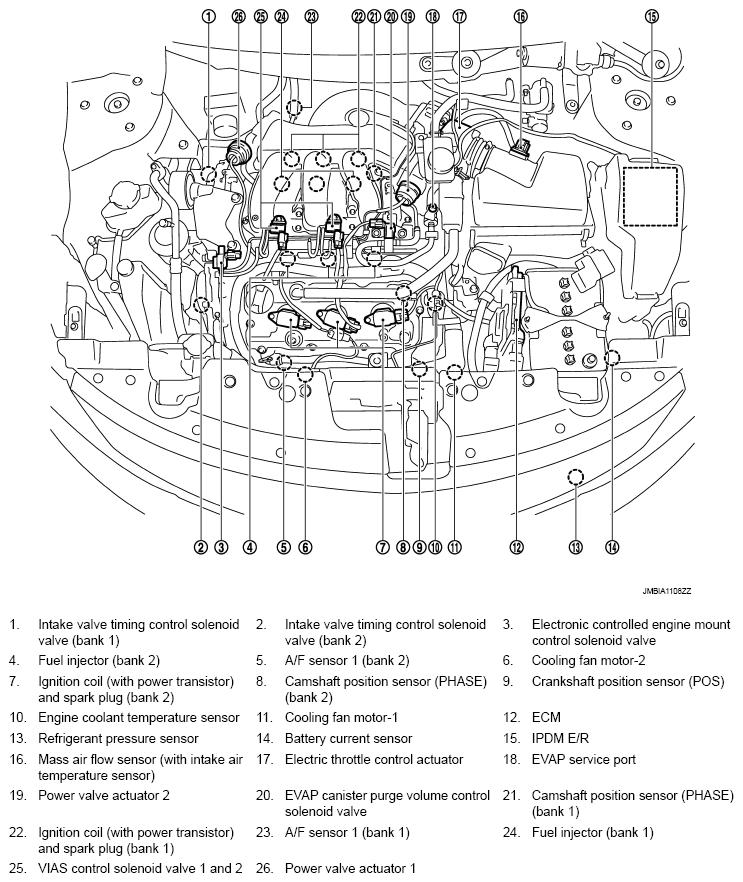

Fig 1: Location Of Engine Control System Components (1 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

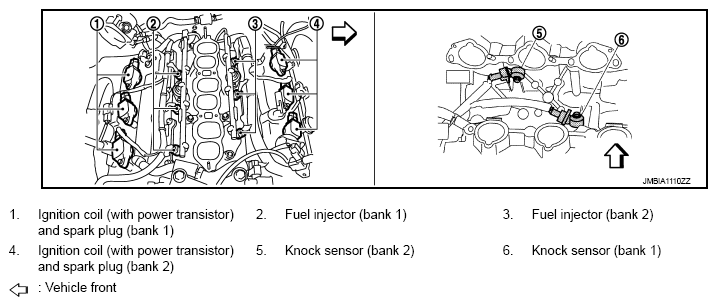

Fig 2: Location Of Engine Control System Components (2 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

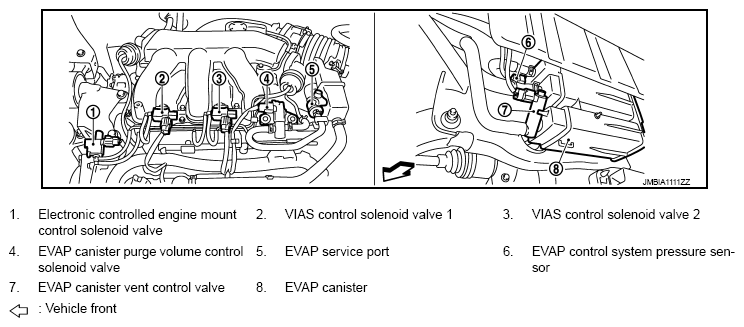

Fig 3: Location Of Engine Control System Components (3 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

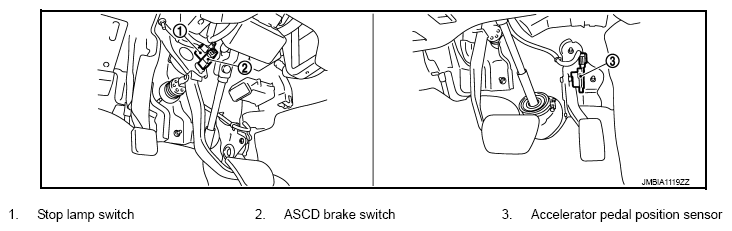

Fig 4: Location Of Engine Control System Components (4 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

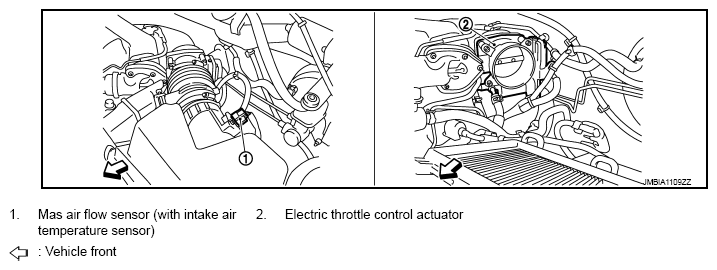

Fig 5: Location Of Engine Control System Components (5 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

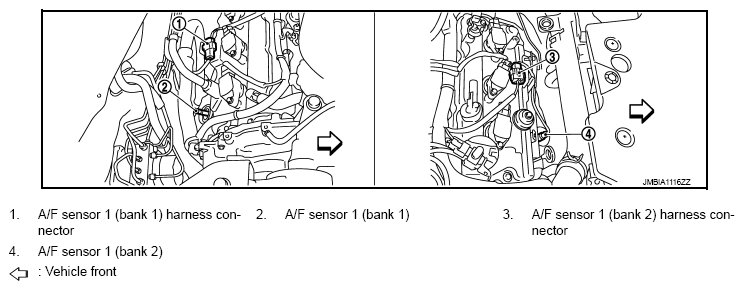

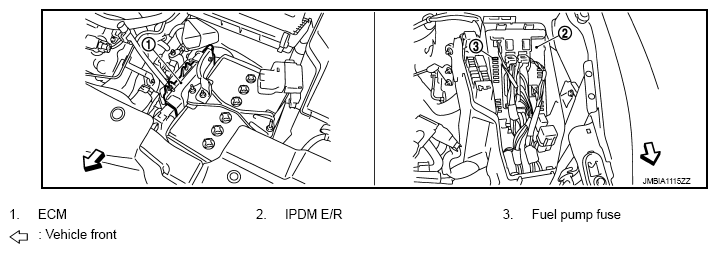

Fig 6: Location Of Engine Control System Components (6 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

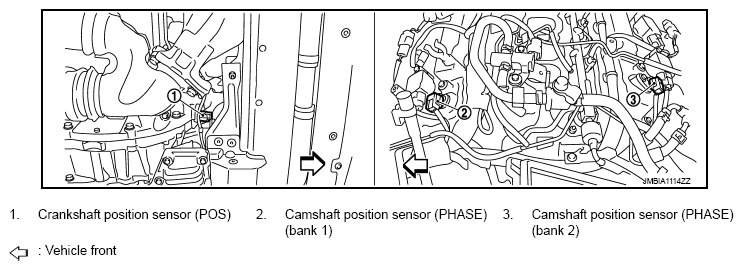

Fig 7: Location Of Engine Control System Components (7 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

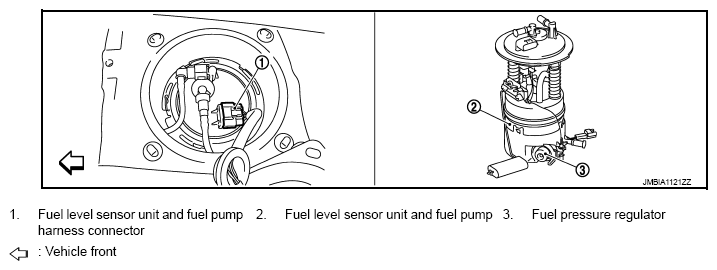

Fig 8: Location Of Engine Control System Components (8 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

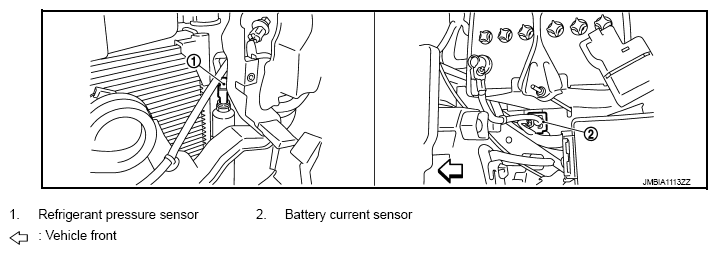

Fig 9: Location Of Engine Control System Components (9 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

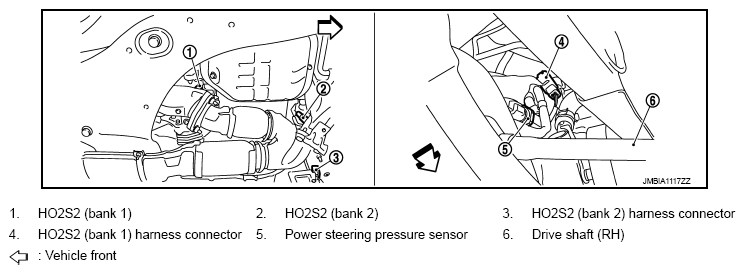

Fig 10: Location Of Engine Control System Components (10 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

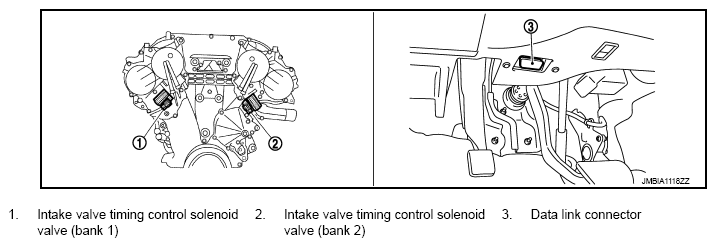

Fig 11: Location Of Engine Control System Components (11 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

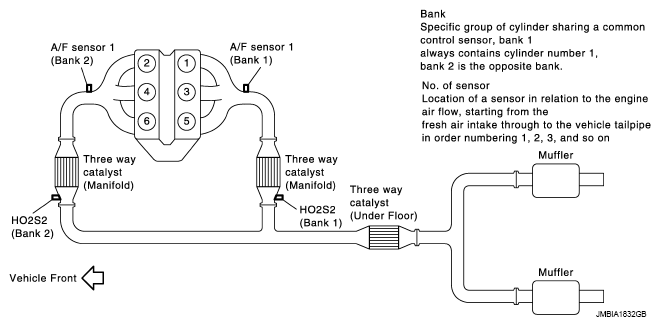

Fig 12: Location Of Engine Control System Components (12 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

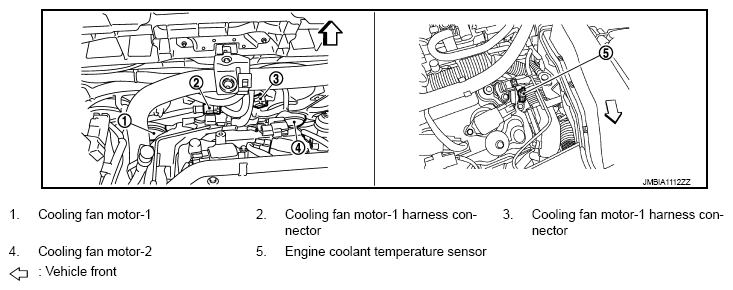

Fig 13: Location Of Engine Control System Components (13 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

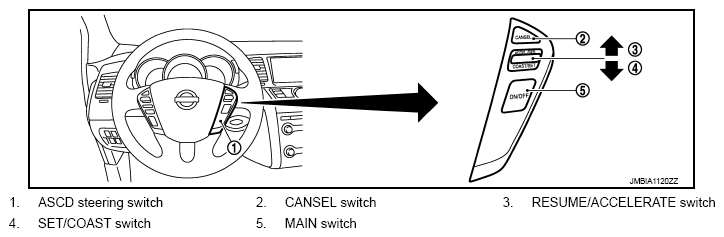

Fig 14: Location Of Engine Control System Components (14 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Location Of Engine Control System Components (15 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.
