DISPLAY AUDIO SYSTEM : System Diagram

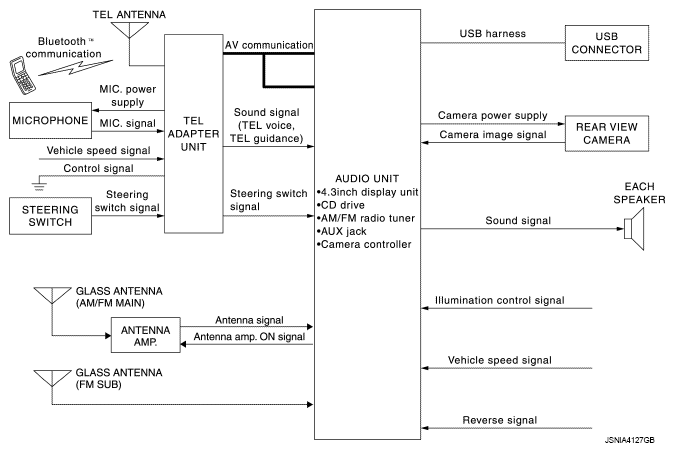

Fig 1: Display Audio System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
