MULTI AV SYSTEM : System Diagram

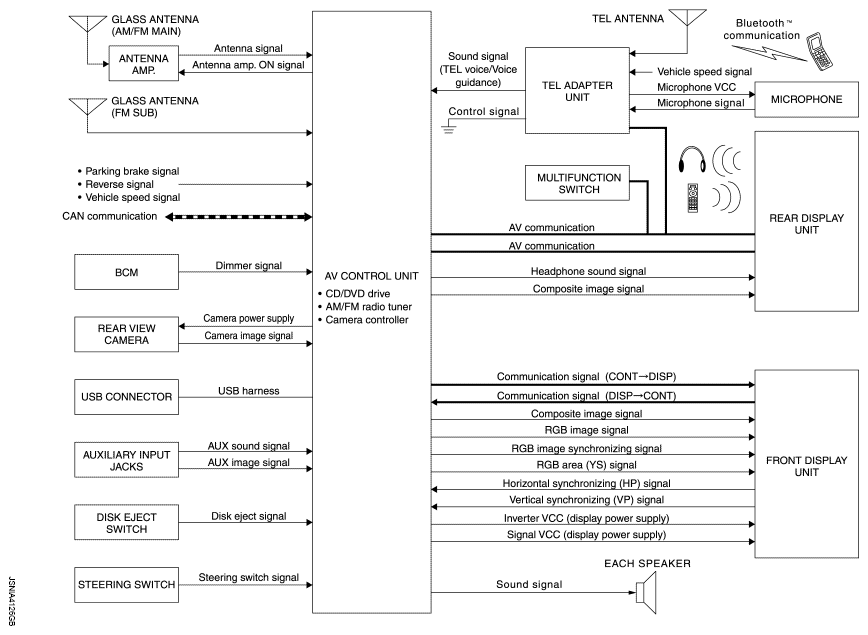

Fig 1: Multi AV System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.

CAN COMMUNICATION

AV control unit Input Signal

TRANSMIT UNIT INPUT SIGNAL REFERENCE CHART

Transmit unit	Signal name
ECM	Engine status signal
ECM	Fuel consumption monitor signal
Steering angle sensor	Steering angle sensor signal
Combination meter	Vehicle speed signal
	Distance to empty signal
	Fuel level low warning signal
BCM	System setting signal
