ACCS (ADVANCED CLIMATE CONTROL SYSTEM) : Switch Name and Function

OPERATION AND DISPLAY OF ACCS (ADVANCED CLIMATE CONTROL SYSTEM)

Display: Display in front A/C control

Plasmacluster™ ion

Automatic intake control (exhaust gas/outside odor detecting mechanism)

Ambient atmosphere status is indicated on display in front A/C control while exhaust gas or unpleasant odor is detected by exhaust gas/outside odor detecting sensor.

Fig 3: Display Of Ambient Atmosphere Status
Courtesy of NISSAN MOTOR CO., U.S.A.

Operation: Front A/C control

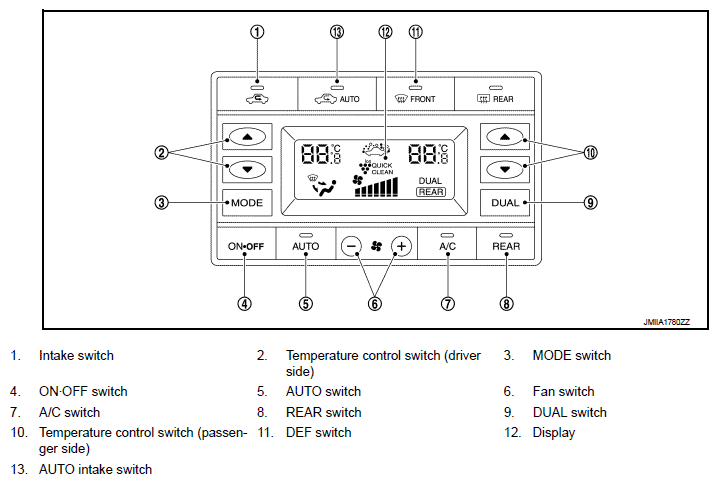

Fig 4: Front Automatic Air Conditioning System Button Function And Operation Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

SWITCH FUNCTION CHART

Switch name	Function
AUTO intake switch	Automatic intake control (exhaust gas/outside odor detecting mechanism) (switch indicator) changes between ON <=> OFF each time when AUTO intake switch is pressed while front blower motor is activated. Front air conditioning becomes the following status when AUTO intake switch is turned ON. Air inlet: Recirculation [After approximately 5 minutes, air inlet is switched to automatic intake control (exhaust gas/outside odor detecting mechanism).] A/C switch: ON Front air conditioning becomes the following status when AUTO intake switch is turned OFF. Air inlet: Fresh air intake A/C switch: Stays ON NOTE: Interlocking condition of A/C switch can be changed. Refer to "AUTO INTAKE SWITCH INTERLOCKING MOVEMENT CHANGE FUNCTION ". AUTO intake switch operation is not accepted when the following status. Air outlet: D/F or DEF Ambient temperature: 0°C (32°F) or less

Switch name

Function

AUTO intake switch

Automatic intake control (exhaust gas/outside odor detecting mechanism) (switch indicator) changes between ON <=> OFF each time when AUTO intake switch is pressed while front blower motor is activated.
Front air conditioning becomes the following status when AUTO intake switch is turned ON.
- Air inlet: Recirculation [After approximately 5 minutes, air inlet is switched to automatic intake control (exhaust gas/outside odor detecting mechanism).]
- A/C switch: ON
Front air conditioning becomes the following status when AUTO intake switch is turned OFF.
- Air inlet: Fresh air intake
- A/C switch: Stays ON
  NOTE: Interlocking condition of A/C switch can be changed. Refer to "AUTO INTAKE SWITCH INTERLOCKING MOVEMENT CHANGE FUNCTION ".
AUTO intake switch operation is not accepted when the following status.
- Air outlet: D/F or DEF
- Ambient temperature: 0°C (32°F) or less

NOTE: The following switches are not necessary for ACCS (Advanced Climate Control System) operation.

SWITCH FUNCTION CHART

Intake switch	Refer to "FRONT AUTOMATIC AIR CONDITIONING SYSTEM : SWITCH NAME AND FUNCTION ".
Temperature control switch (driver side)
MODE switch
ON-OFF switch
AUTO switch
Fan switch
A/C switch
DUAL switch
Temperature control switch (passenger side)
DEF switch
REAR switch	Refer to "REAR AUTOMATIC AIR CONDITIONING SYSTEM : SWITCH NAME AND FUNCTION ".
