Exploded View: Disassembly

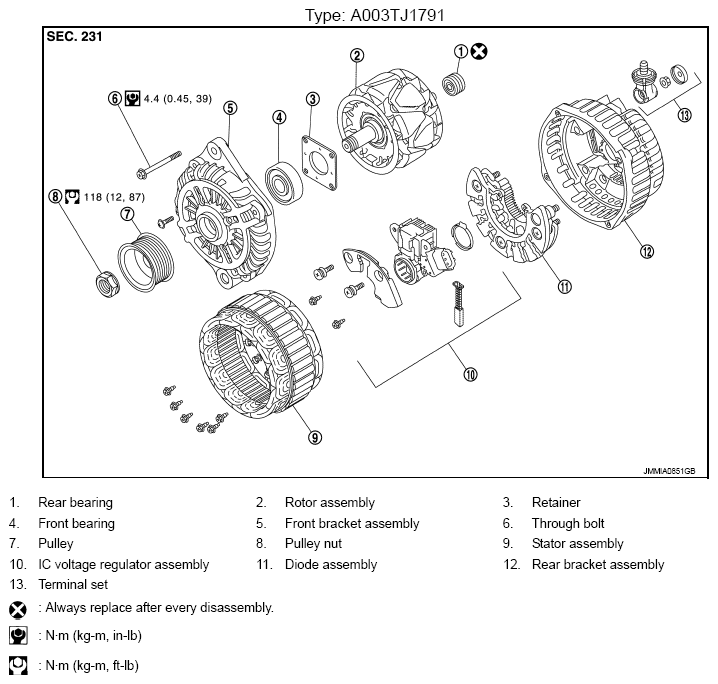

Fig 1: Disassembled View Of Alternator With Torque Specifications
G07053890Courtesy of NISSAN MOTOR CO., U.S.A.
