Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
SRS Airbag Control System
>>
System Description
>>
System
>>
System Description
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

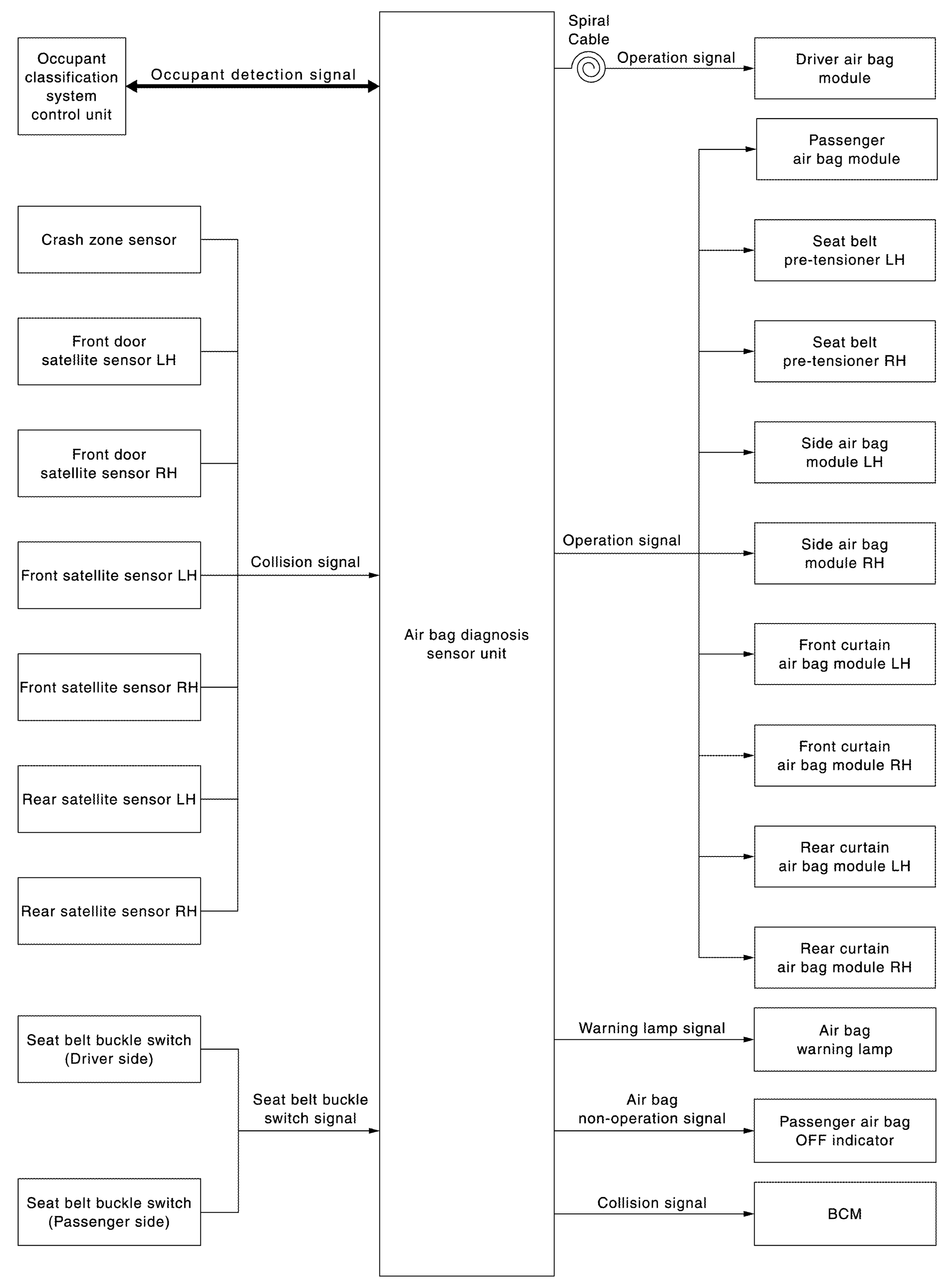

Fig 1: SRS Airbag Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
