Component Parts Location

Fig 1: Air Conditioning Cut Control System Components Location

Courtesy of NISSAN MOTOR CO., U.S.A.

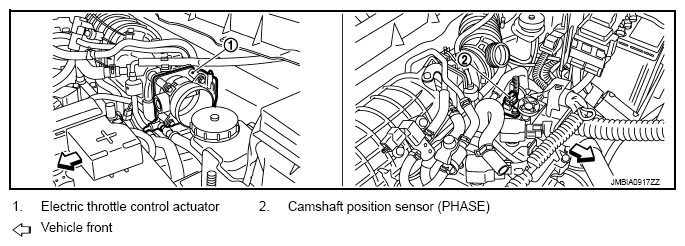

Fig 2: Electric Throttle Control Actuator And Camshaft Position Sensor (PHASE) Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: View Of Mass Air Flow Sensor And Engine Coolant Temperature Sensor Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

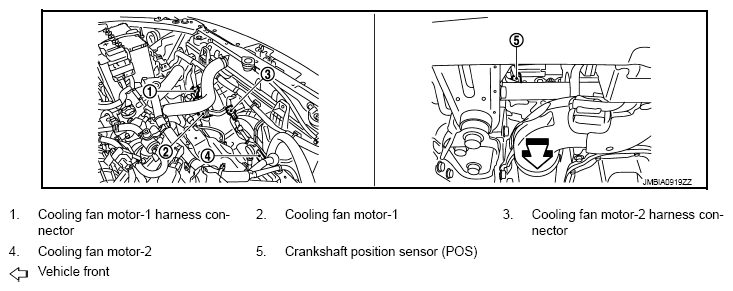

Fig 4: View Of Cooling Fan Motor 1 And 2 Component Locations With Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

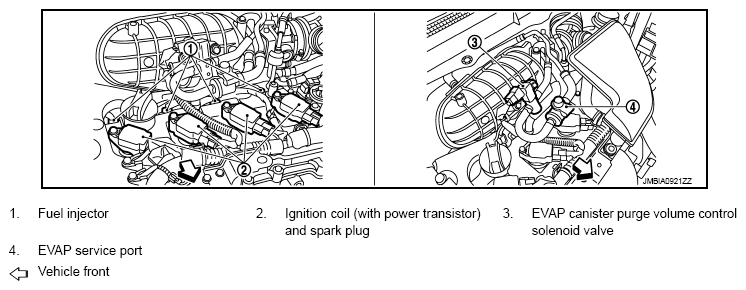

Fig 5: Fuel Injector, Ignition Coil And EVAP Canister Purge Volume Control Solenoid Valve Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

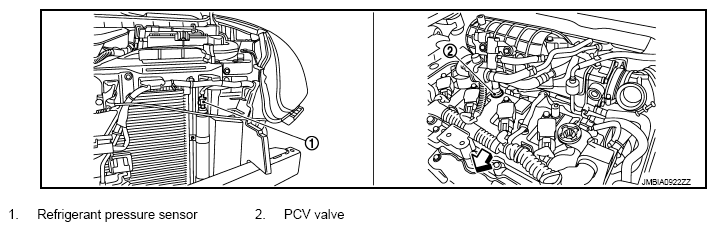

Fig 6: Refrigerant Pressure Sensor And PCV Valve Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

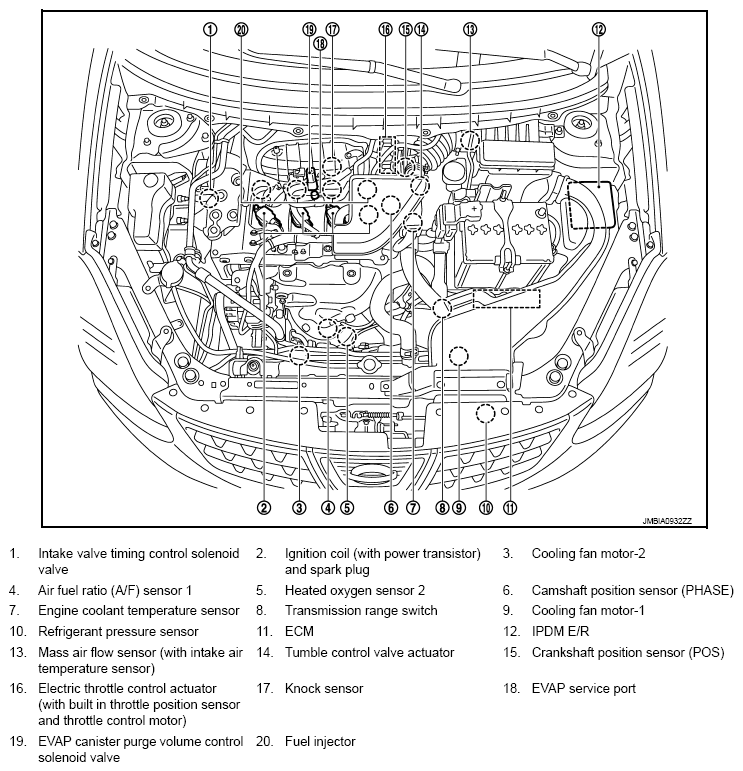

Fig 7: Sensors & Related Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

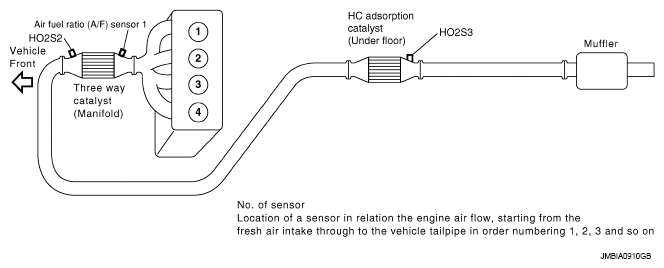

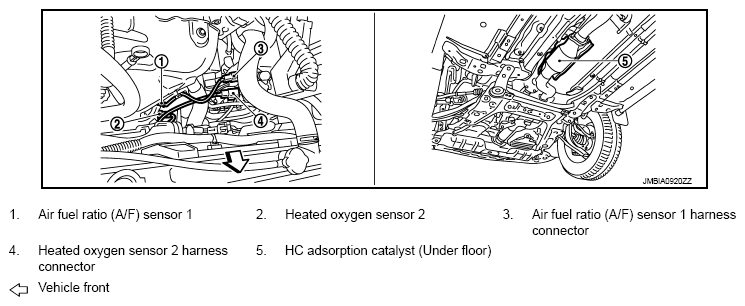

Fig 8: Air Fuel Ratio Sensor 1 And Heated Oxygen Sensor 2 Component Locations With Harness Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

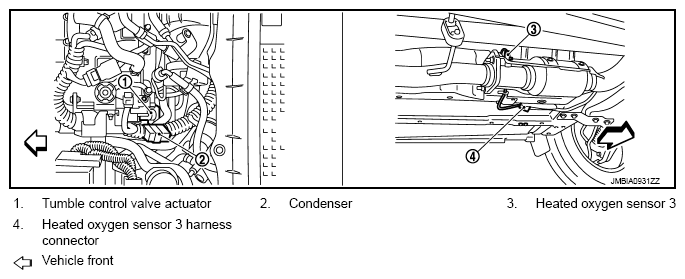

Fig 9: View Of Tumble Control Valve Actuator, Condenser And Heated Oxygen Sensor 3 Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

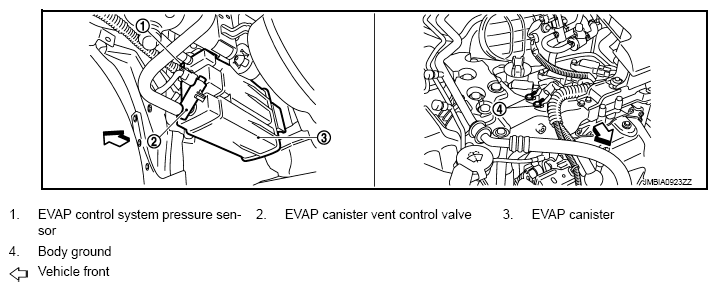

Fig 10: View Of EVAP Control System Pressure Sensor, Canister Vent Control Valve And EVAP Canister Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

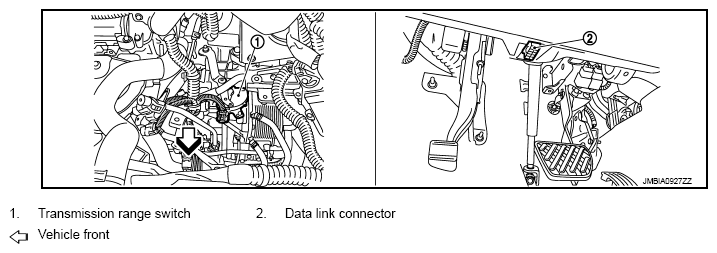

Fig 11: Transmission Range Switch And Data Link Connector Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: View Of Stop Lamp Switch, ASCD Brake Switch And Accelerator Pedal Position Sensor Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: View Of ASCD Steering, Resume/Accelerate And Set/Coast Switches Component Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Location Of Fuel Level Sensor Unit And Fuel Pump And Fuel Pressure Regulator Components

Courtesy of NISSAN MOTOR CO., U.S.A.
