System - Basic Engine Control System

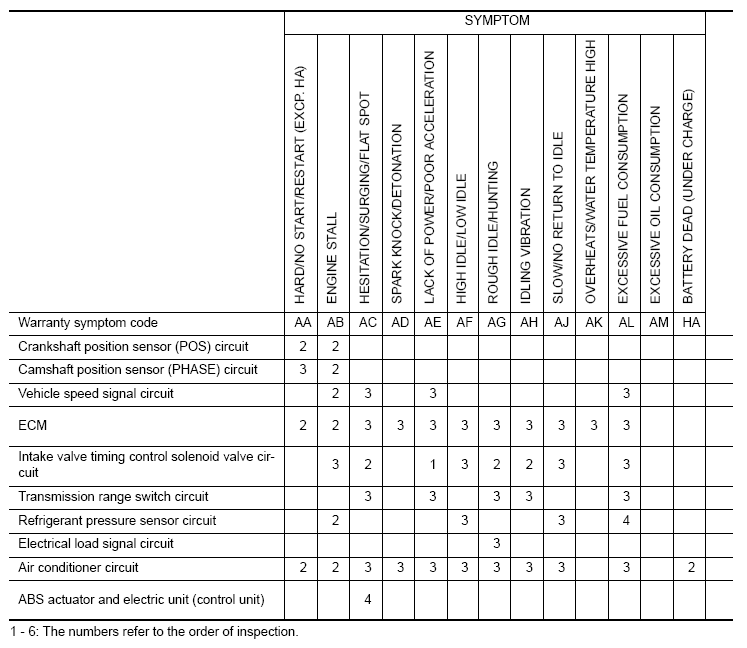

Fig 1: Basic Engine Control System Symptom Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

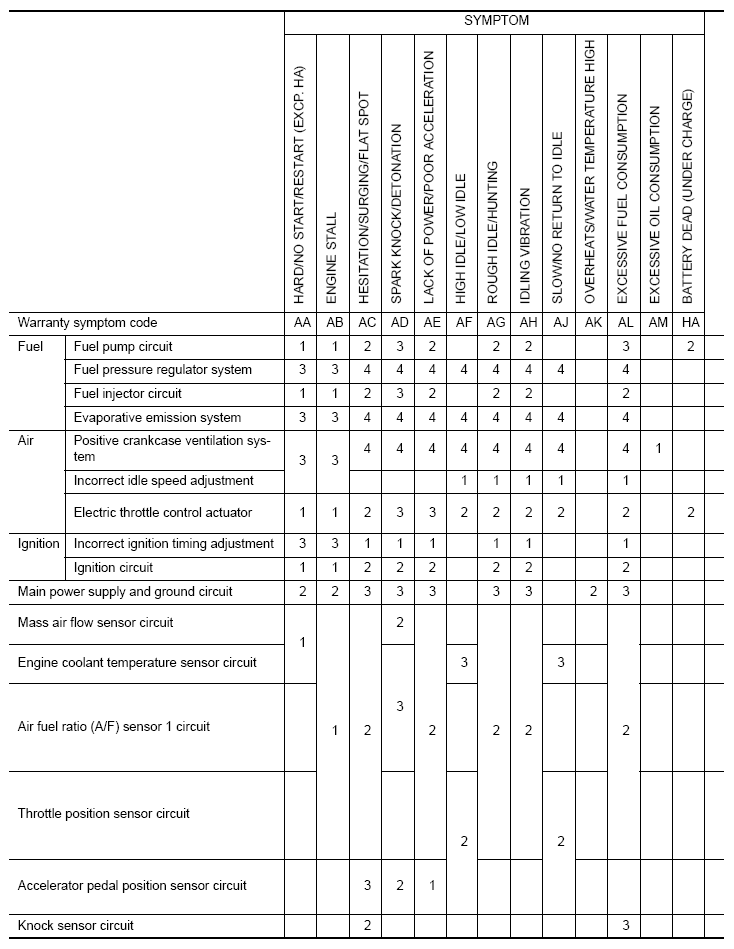

Fig 2: Basic Engine Control System Symptom Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

SYSTEM - ENGINE MECHANICAL & OTHER

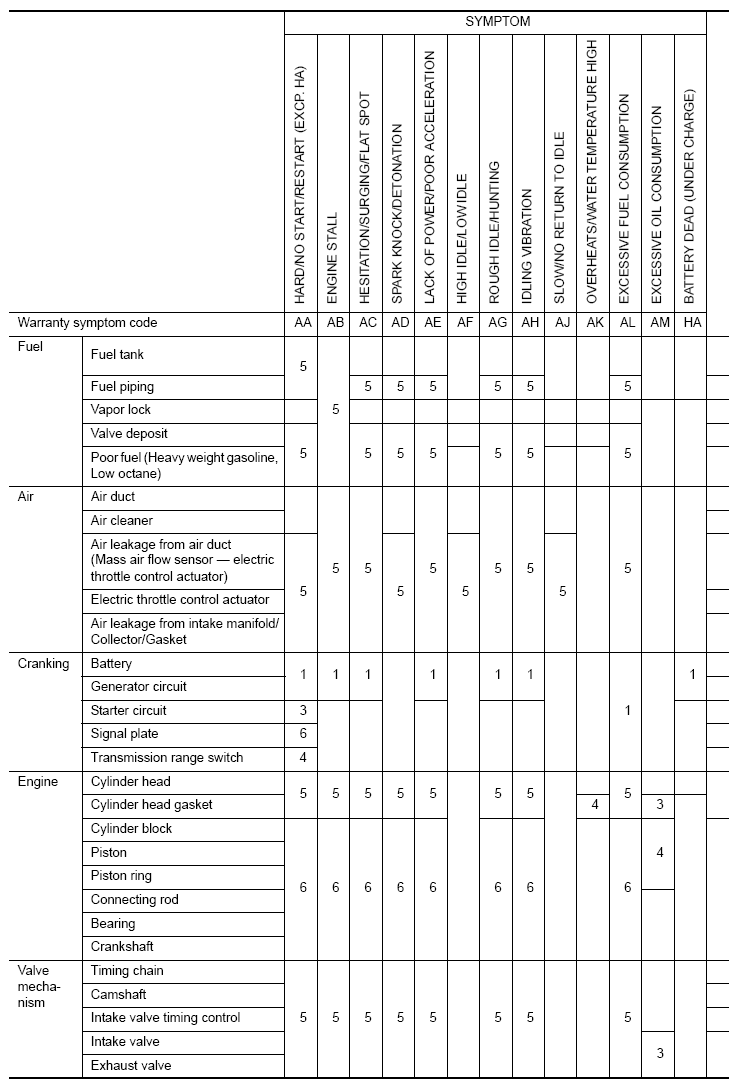

Fig 3: Engine Control System Symptom Chart - Engine Mechanical & Other (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

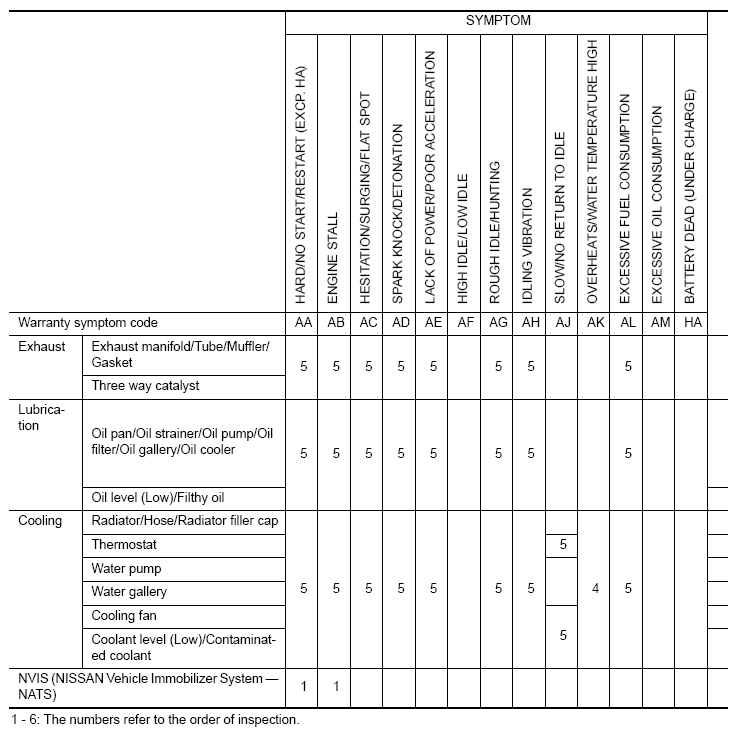

Fig 4: Engine Control System Symptom Chart - Engine Mechanical & Other (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
