Passenger Select Unlock Relay Circuit Inspection (With Intelligent Key)

CHECK PASSENGER SELECT UNLOCK RELAY CIRCUIT
NOTE: Passenger select unlock relay must remain connected during this step.
1. Turn ignition switch OFF.
2. Disconnect BCM and inoperative rear door lock actuator.
3. Check continuity between BCM connector M20 (A) terminal 65 and rear door lock actuator LH connector D202 (B) terminal 1 or rear door lock actuator RH connector D302 (C) Terminal 2.
  65 - 1 : Continuity should exist.

  65 - 2 : Continuity should exist.
4. Check continuity between BCM connector M20 (A) terminal 65 and body ground.
  65 - Ground : Continuity should not exist.

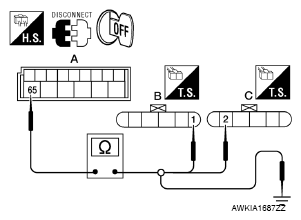

  Fig 1: Checking Continuity Between BCM Connector Terminal And Body Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG

  OK: GO TO 4.

  NG: GO TO 2.
CHECK PASSENGER SELECT UNLOCK RELAY INPUT
1. Disconnect passenger select unlock relay.
2. Check continuity between BCM connector M20 (A) terminal 66 and passenger select unlock relay connector M14 (B) terminal 3.
  66 - 3 : Continuity should exist.
3. Check continuity between BCM connector M20 (A) terminal 66 and body ground.
  66 - Ground : Continuity should not exist.

  Fig 2: Checking Continuity Between BCM Connector Terminals & Body Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG

  OK: GO TO 3.

  NG: Repair or replace harness between BCM and relay.
CHECK PASSENGER SELECT UNLOCK RELAY OUTPUT
1. Disconnect inoperative rear door lock actuator.
2. Check continuity between passenger select unlock relay connector M14 (A) terminal 4 and rear door lock actuator LH connector D202 (B) terminal 2 or rear door lock actuator RH connector D302 (C) terminal 1.
  4 - 2 : Continuity should exist.

  4 - 1 : Continuity should exist.
3. Check continuity between passenger select unlock relay connector M14 (A) terminal 4 and ground.
  4 - Ground : Continuity should not exist.

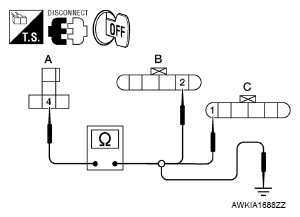

  Fig 3: Checking Continuity Between Passenger Select Unlock Relay Connector Terminals And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG

  OK: Replace passenger select unlock relay.

  NG: Repair or replace harness between relay and actuator.

CHECK REAR DOOR LOCK ACTUATOR ASSEMBLY

Reconnect BCM.

Check voltage between rear door lock actuator connector LH D202 (A) or rear door lock actuator connector RH D302 (B) terminals 1 and 2.

VOLTAGE AND CONTINUITY SPECIFICATIONS

Connector	Terminals		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
A: D202 (LH)	1	2	Main power window and door lock/unlock switch is turned to LOCK	0 → Battery voltage
B: D302 (RH)	2	1		0 → Battery voltage

Fig 4: Checking Voltage Between Rear Door Lock Actuator Connector LH And Connector RH Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Check voltage between rear door lock actuator connector LH D202 (A) or rear door lock actuator connector RH D302 (B) terminals 1 and 2.

VOLTAGE AND CONTINUITY SPECIFICATIONS

Connector	Terminals		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
A: D202 (LH)	2	1	Main power window and door lock/unlock switch is turned to UNLOCK	0 → Battery voltage
B: D302 (RH)	1	2		0 → Battery voltage

Fig 5: Checking Voltage Between Connector LH Or Rear Door Lock Actuator Connector Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace rear door lock actuator. Refer to "REMOVAL AND INSTALLATION ".

NG: Repair or replace harness between actuator and splice.
