Control Valve: Notes

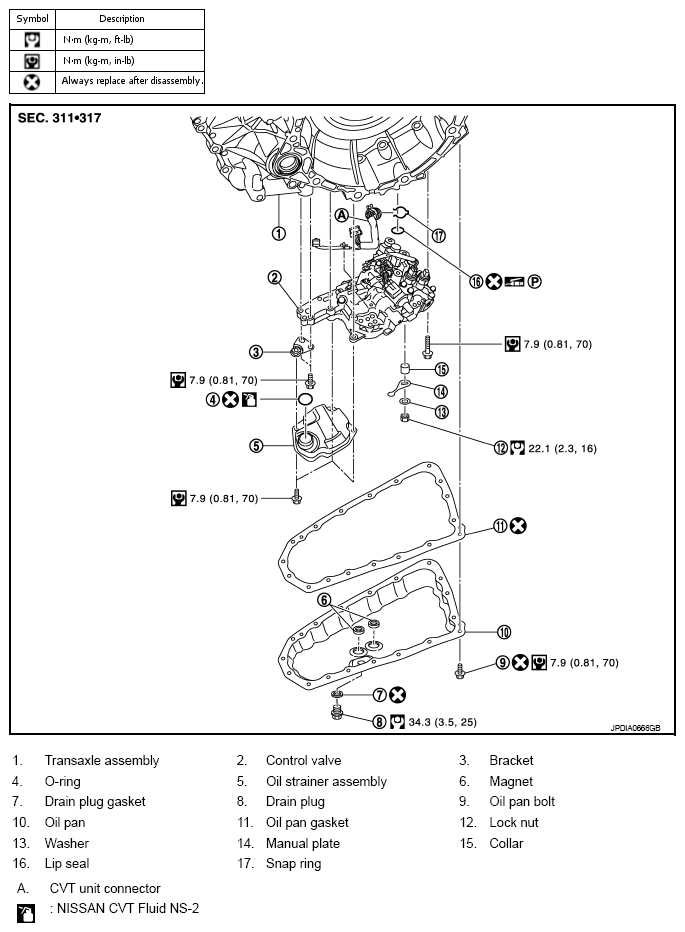

Fig 1: Exploded View Of Control Valve Components With Torque Specifications
G07139228Courtesy of NISSAN MOTOR CO., U.S.A.
