Cross-Sectional View

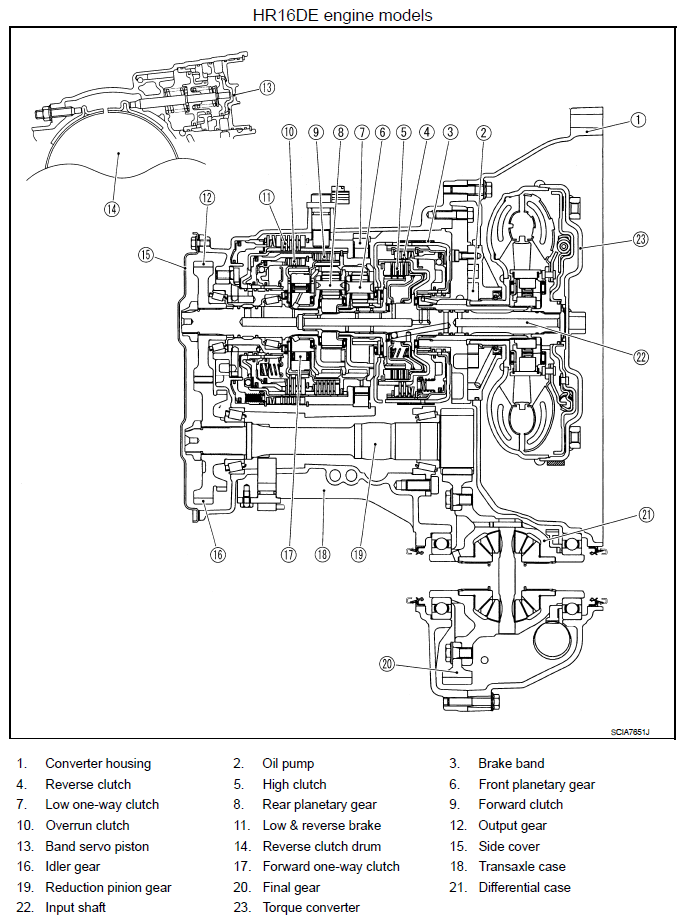

Fig 1: Cross-Sectional View Of A/T Control System - HR16DE Engine
Courtesy of NISSAN MOTOR CO., U.S.A.

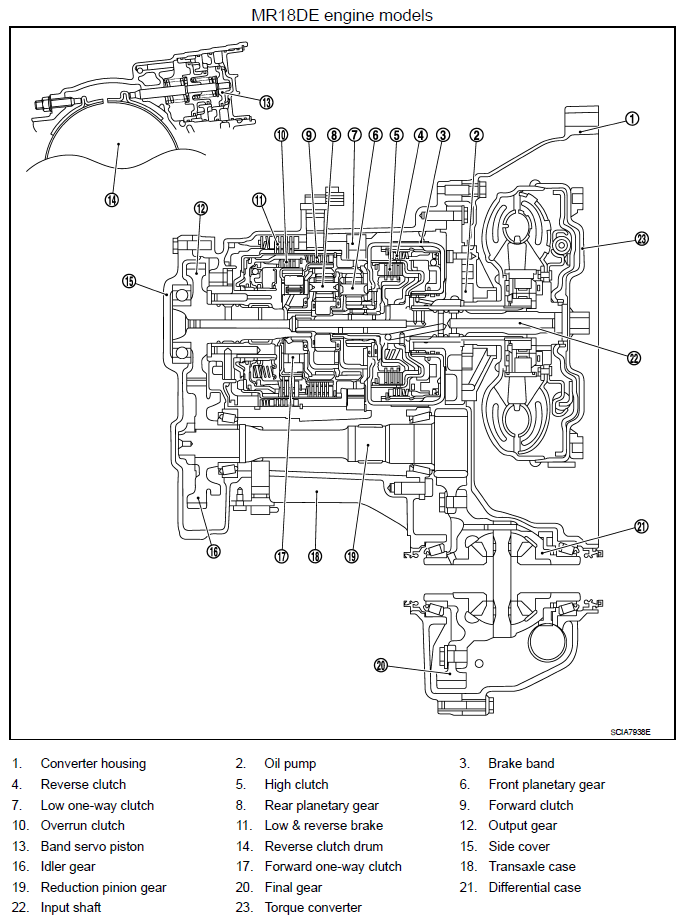

Fig 2: Cross-Sectional View Of A/T Control System - MR18DE Engine
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
