Output Speed Sensor: Components

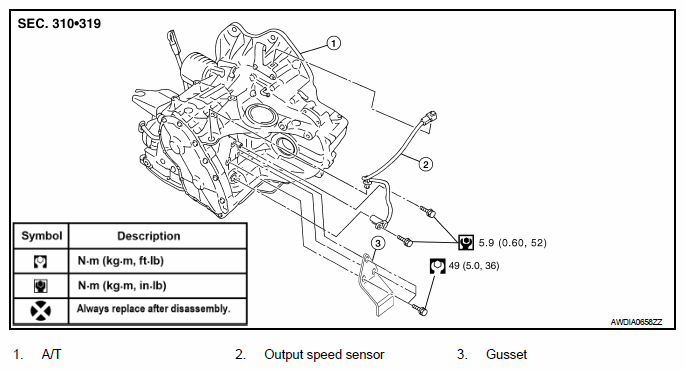

Fig 1: Output Speed Sensor Replacement Components With Torque Specifications
G06538614Courtesy of NISSAN MOTOR CO., U.S.A.
