Final Drive: Components

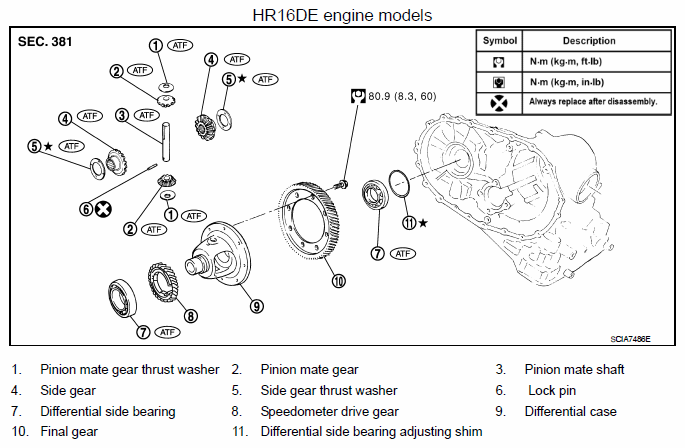

Fig 1: Exploded View Of Final Drive Components With Torque Specifications (HR16DE Engine Models)
G06538954Courtesy of NISSAN MOTOR CO., U.S.A.

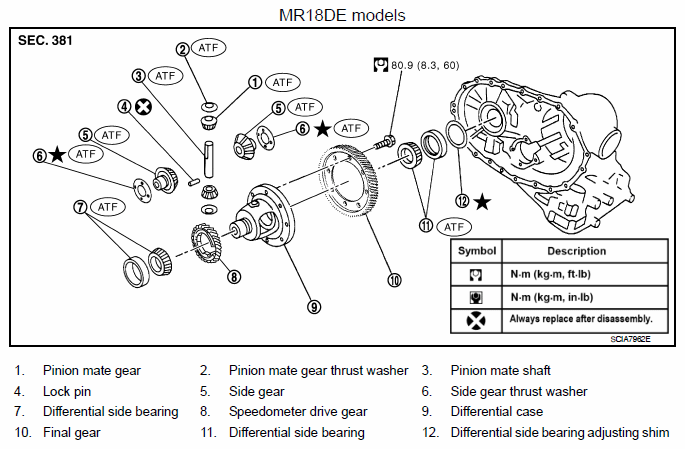

Fig 2: Exploded View Of Final Drive Components With Torque Specifications (MR18DE Engine Models)
G06538955Courtesy of NISSAN MOTOR CO., U.S.A.
