A/T Shift Selector Removal and Installation
>>
Control Cable Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control Cable Components

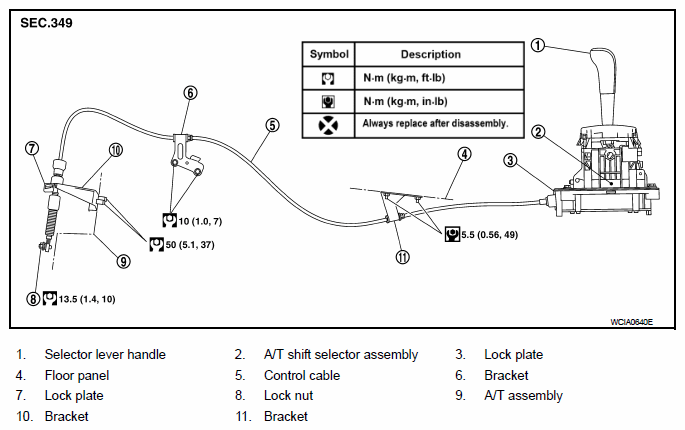

Fig 1: Identifying Control Cable Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
