Removal and Installation: Components

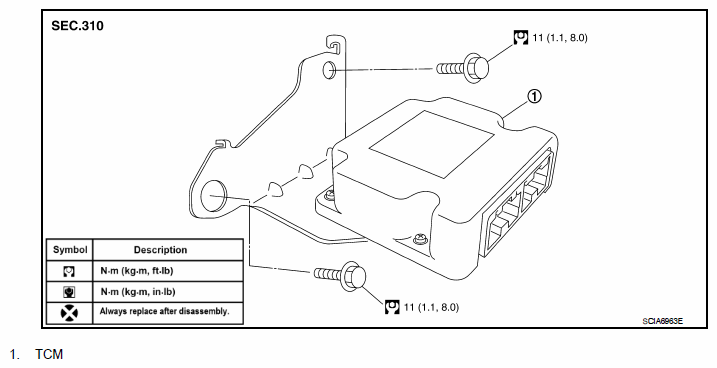

Fig 1: Transmission Control Module Replacement Components With Torque Specifications
G06538574Courtesy of NISSAN MOTOR CO., U.S.A.
