Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

For connector terminal arrangements, harness layouts, and alphabets in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to , CONNECTOR INFORMATION .

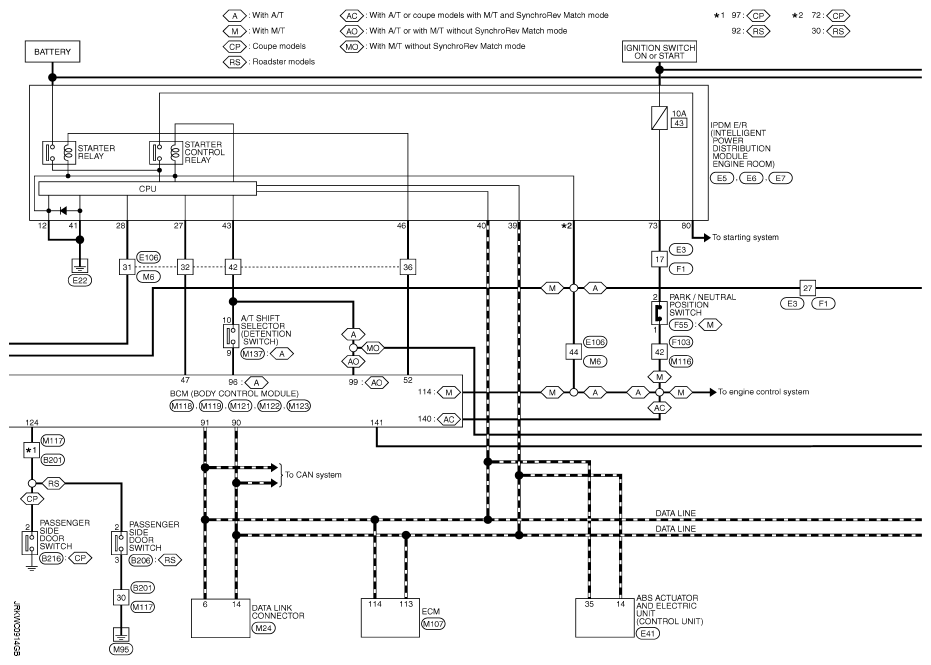

Fig 1: Identifying Intelligent Key System/Engine Start Function Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

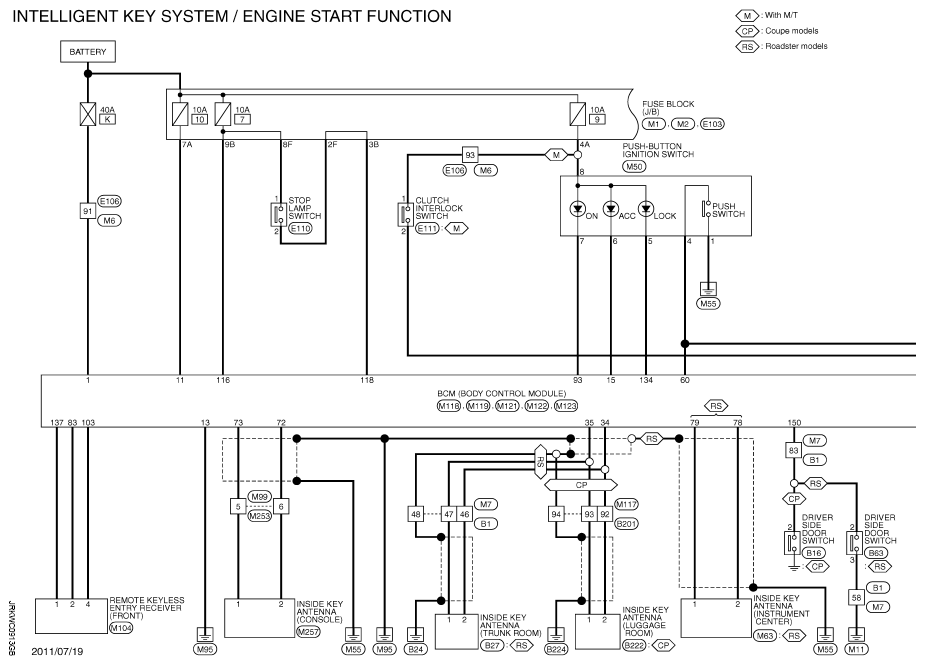

Fig 2: Identifying Intelligent Key System/Engine Start Function Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

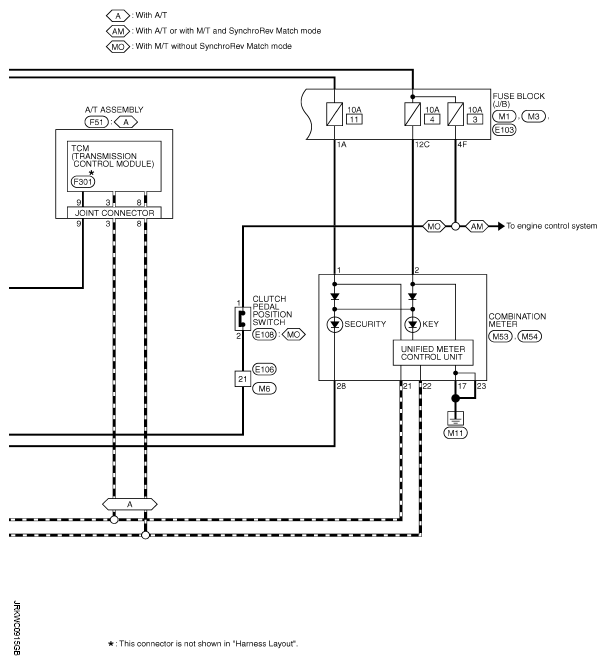

Fig 3: Identifying Intelligent Key System/Engine Start Function Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
