Component Function Check

1. Turn ignition switch OFF.
2. Disconnect "fuel level sensor unit and fuel pump" harness connector.
3. Remove fuel level sensor unit. Refer to EXPLODED VIEW .
4. Check resistance between "fuel level sensor unit and fuel pump" terminals by heating with hot water as shown in the figure below.

   Terminals	Condition		Resistance (kΩ)
   4 and 5	Temperature [°C (°F)]	20 (68)	2.3 - 2.7
   		50 (122)	0.79 - 0.90

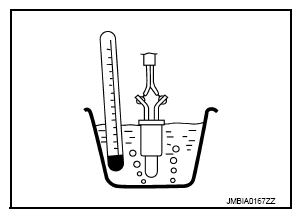

   Fig 1: Checking Fuel Level Sensor Unit By Heating With Hot Water

   Courtesy of NISSAN NORTH AMERICA, INC.

   Is the inspection result normal?

   YES: GO TO 2.

   NO: Proceed to "DIAGNOSIS PROCEDURE ".

Check intermittent incident. Refer to INTERMITTENT INCIDENT .

Is the inspection result normal?

YES: INSPECTION END

NO: Proceed to "DIAGNOSIS PROCEDURE ".
