Component Inspection

CHECK GEAR LEVER POSITION SENSOR-I
1. Turn ignition switch OFF.
2. Disconnect gear lever position sensor harness connector.
3. Remove the sensor. refer to EXPLODED VIEW .
4. Visually check the sensor for chipping.

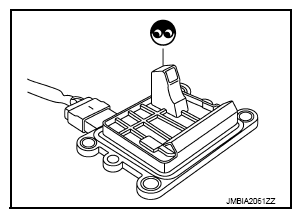

  Fig 1: Checking Gear Lever Position Sensor-I
  Courtesy of NISSAN NORTH AMERICA, INC.

  Is the inspection result normal?

  YES: GO TO 2.

  NO: GO TO 3.

CHECK GEAR LEVER POSITION SENSOR-II

Check resistance between gear lever position sensor terminals as per the following items.

Terminals (Polarity)	Resistance (Ω)
1 (+) - 2 (-)	Except 0 or ∞ [at 25°C (77°F)]
1 (+) - 3 (-)
1 (+) - 4 (-)
2 (+) - 3 (-)
2 (+) - 4 (-)
3 (+) - 4 (-)

Is the inspection result normal?

YES: INSPECTION END

NO: GO TO 3.

REPLACE GEAR LEVER POSITION SENSOR
Replace gear lever position sensor. Refer to EXPLODED VIEW .

INSPECTION END
