Component Parts Location

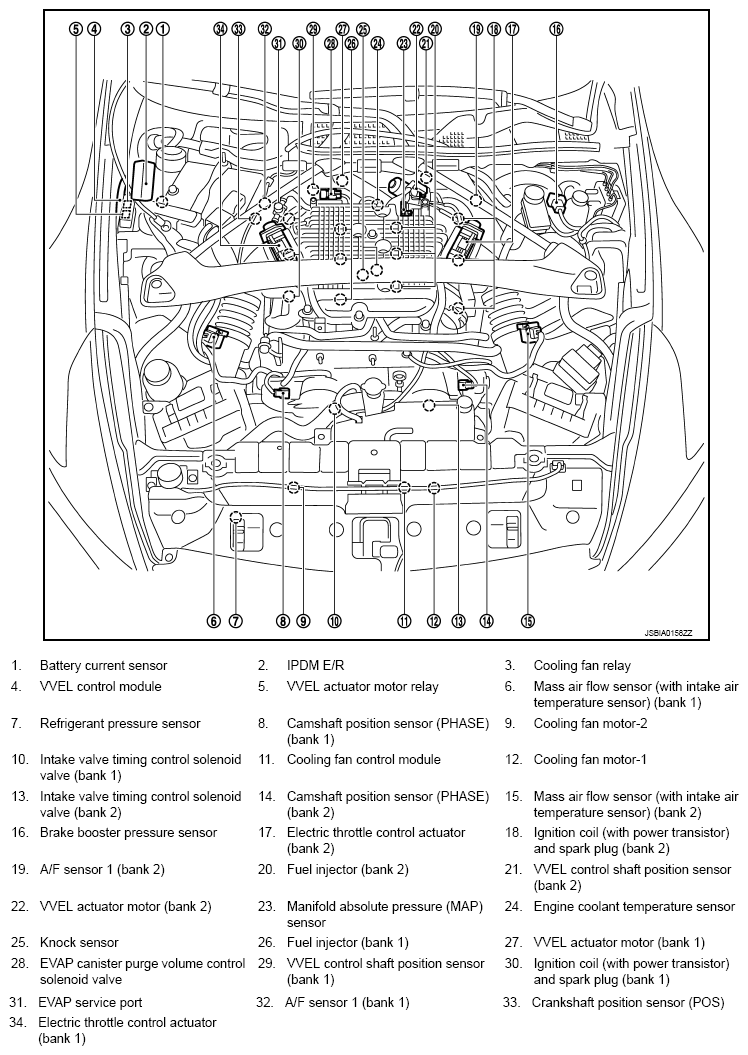

Fig 1: Identifying Engine Control System Component Location

G08102442

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)

G08102443

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Electric Throttle Control Actuator On Both Banks

G08102444

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Cooling Fan Motor, Cooling Fan Control Module And Cooling Fan Relay

G08102445

Courtesy of NISSAN NORTH AMERICA, INC.

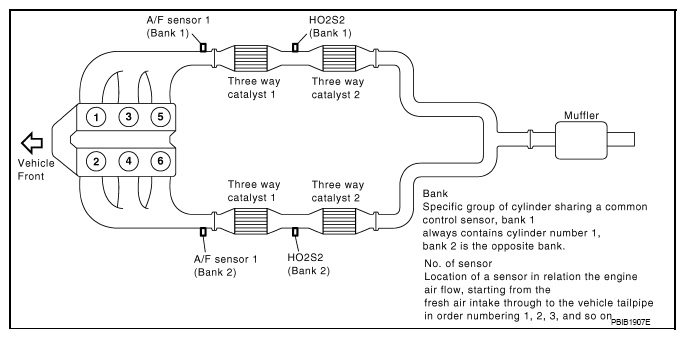

Fig 5: Engine Exhaust Control Component Location

G08102446

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor On Both Banks

G08102447

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor Harness Connector On Both Banks

G08102448

Courtesy of NISSAN NORTH AMERICA, INC.

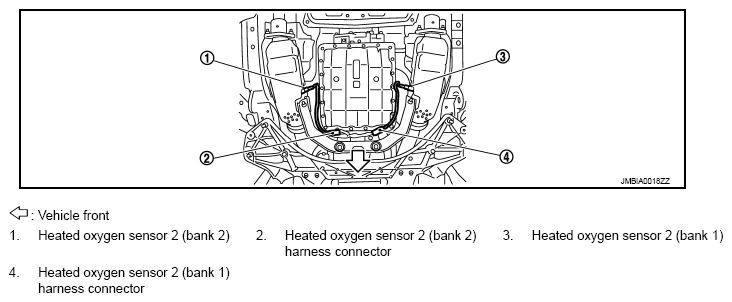

Fig 8: Identifying Heated Oxygen Sensor And Heated Oxygen Sensor Harness Connector On Both Banks

G08102449

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Manifold Absolute Pressure Sensor, Brake Booster Pressure Sensor And VVEL Control Module

G08102450

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Control Shaft Position Sensor And VVEL Actuator Motor On Both Banks

G08102451

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector

G08102452

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Ignition Coils And Fuel Injectors

G08102453

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Coolant Temperature Sensor And Crankshaft Position Sensor

G08102454

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor

G08102455

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor

G08102456

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying EVAP Service Port, EVAP Canister And EVAP Canister Vent Control Valve

G08102457

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump And Fuel Tank Temperature Sensor

G08102458

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM

G08102459

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying ASCD Steering Switch, Cancel Switch, Resume/Accelerate Switch And Main Switch

G08102460

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying S-Mode Switch, Input Speed Sensor And Gear Lever Position Sensor

G08102461

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Stop Lamp Switch, ASCD Brake Switch, Clutch Interlock Switch And Brake Pedal

G08102462

Courtesy of NISSAN NORTH AMERICA, INC.
