System Diagram

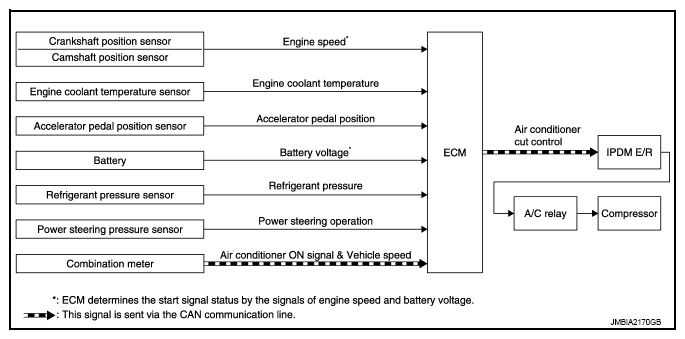

Fig 1: Air Conditioning Cut Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
