Component Parts Location

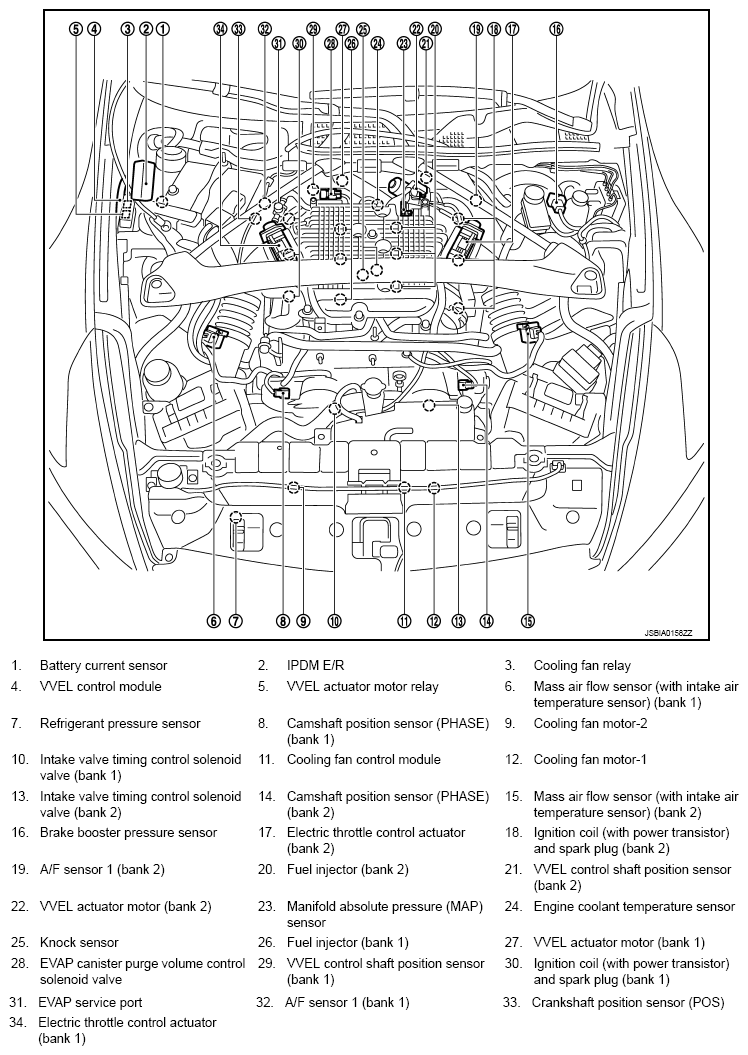

Fig 1: Identifying ACSD System Component Location

G08102464

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)

G08102465

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Electric Throttle Control Actuator On Both Banks

G08102466

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Heated Oxygen Sensor And Heated Oxygen Sensor Harness Connector On Both Banks

G08102467

Courtesy of NISSAN NORTH AMERICA, INC.

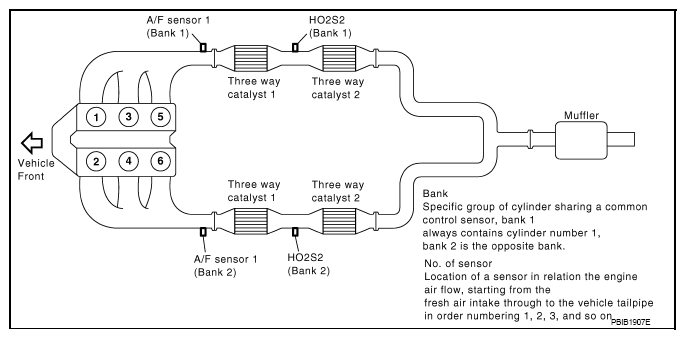

Fig 5: Engine Exhaust Control Component Location

G08102468

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor On Both Banks

G08102469

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor Harness Connector On Both Banks

G08102470

Courtesy of NISSAN NORTH AMERICA, INC.

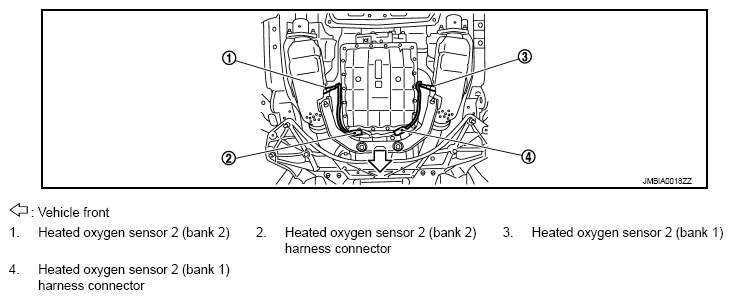

Fig 8: Identifying Heated Oxygen Sensor And Heated Oxygen Sensor Harness Connector On Both Banks

G08102471

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Manifold Absolute Pressure Sensor, Brake Booster Pressure Sensor And VVEL Control Module

G08102472

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Control Shaft Position Sensor And VVEL Actuator Motor On Both Banks

G08102473

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector

G08102474

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Ignition Coils And Fuel Injectors

G08102475

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Coolant Temperature Sensor, A/F Sensor And Crankshaft Position Sensor

G08102476

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor

G08102477

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor

G08102478

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying EVAP Service Port, EVAP Canister And EVAP Canister Vent Control Valve

G08102479

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump And Fuel Tank Temperature Sensor

G08102480

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM

G08102481

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying ASCD Steering Switch, Cancel Switch, Set/Coast Switch And Main Switch

G08102482

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying S-Mode Switch, Input Speed Sensor And Gear Lever Position Sensor

G08102483

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Stop Lamp Switch, ASCD Brake Switch, Clutch Interlock Switch And Clutch Pedal

G08102484

Courtesy of NISSAN NORTH AMERICA, INC.
