Component Parts Location

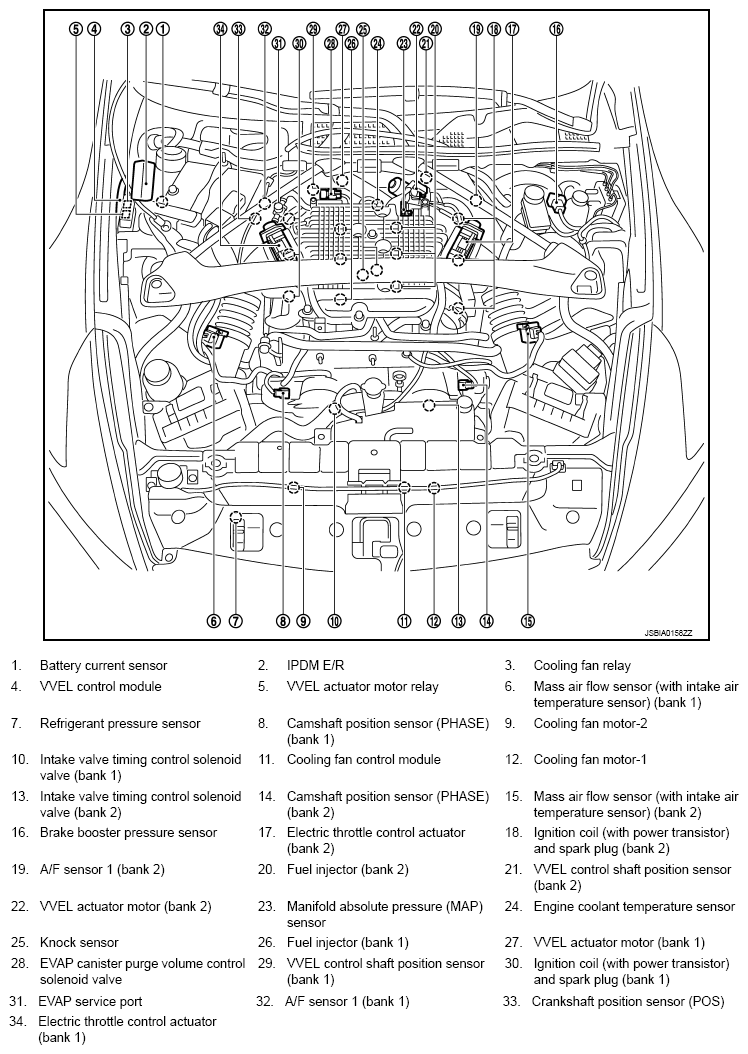

Fig 1: Engine Control System Component Parts Location
G08102486Courtesy of NISSAN NORTH AMERICA, INC.

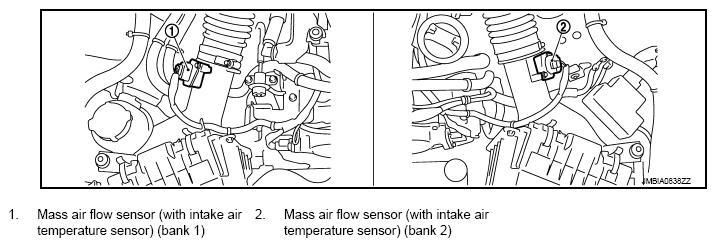

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)
G08102487Courtesy of NISSAN NORTH AMERICA, INC.

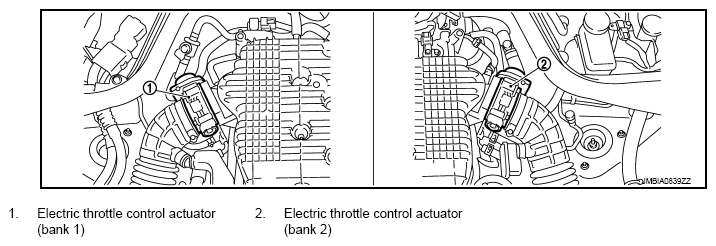

Fig 3: Identifying Electric Throttle Control Actuator On Both Banks
G08102488Courtesy of NISSAN NORTH AMERICA, INC.

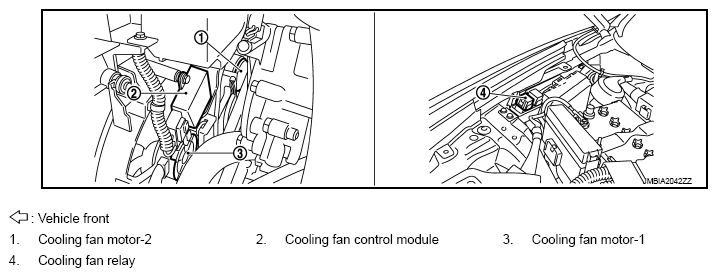

Fig 4: Identifying Cooling Fan Motor, Cooling Fan Control Module And Cooling Fan Relay
G08102489Courtesy of NISSAN NORTH AMERICA, INC.

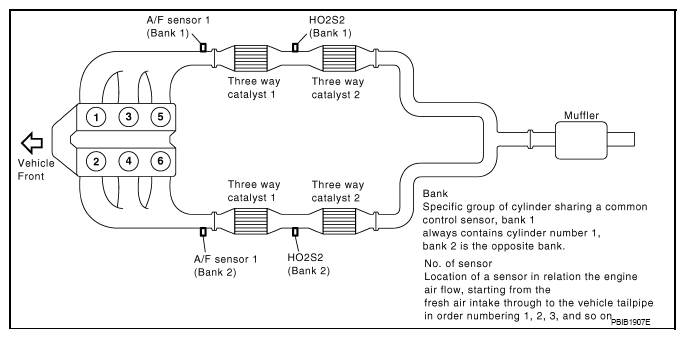

Fig 5: Identifying Engine Exhaust Control Component Parts Location
G08102490Courtesy of NISSAN NORTH AMERICA, INC.

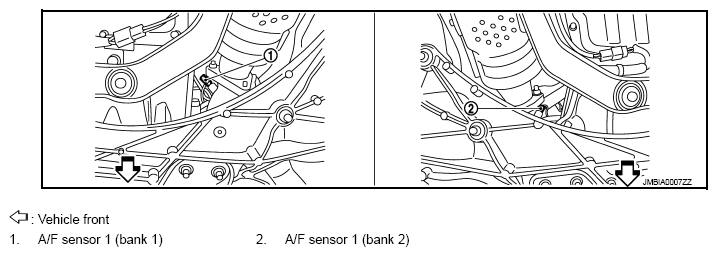

Fig 6: Identifying A/F Sensor On Both Banks
G08102491Courtesy of NISSAN NORTH AMERICA, INC.

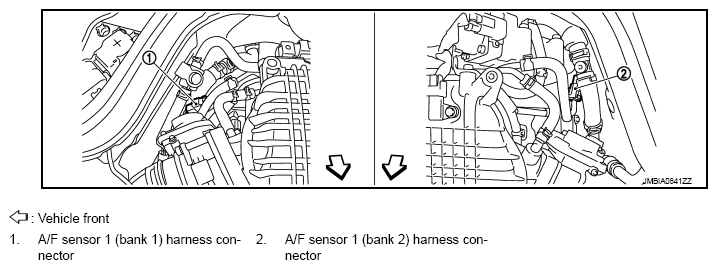

Fig 7: Identifying A/F Sensor Harness Connector On Both Banks
G08102492Courtesy of NISSAN NORTH AMERICA, INC.

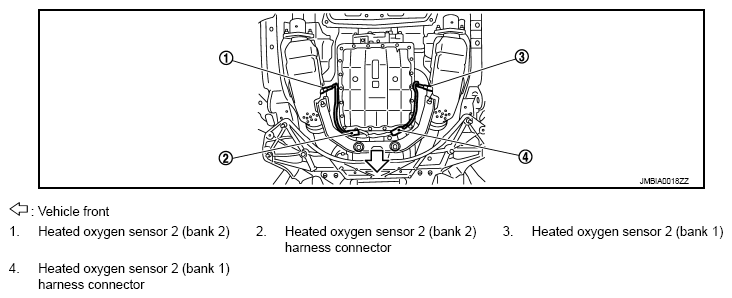

Fig 8: Identifying Heated Oxygen Sensor And Heated Oxygen Sensor Harness Connector
G08102493Courtesy of NISSAN NORTH AMERICA, INC.

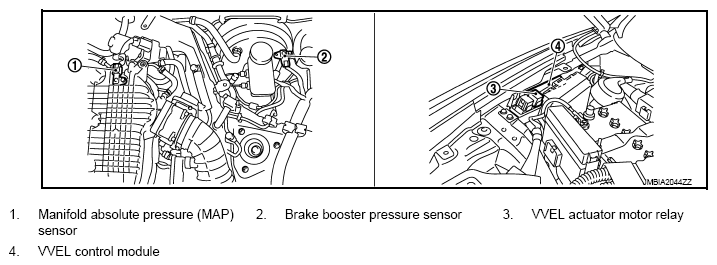

Fig 9: Identifying Manifold Absolute Pressure Sensor, Brake Booster Pressure Sensor And VVEL Control Module
G08102494Courtesy of NISSAN NORTH AMERICA, INC.

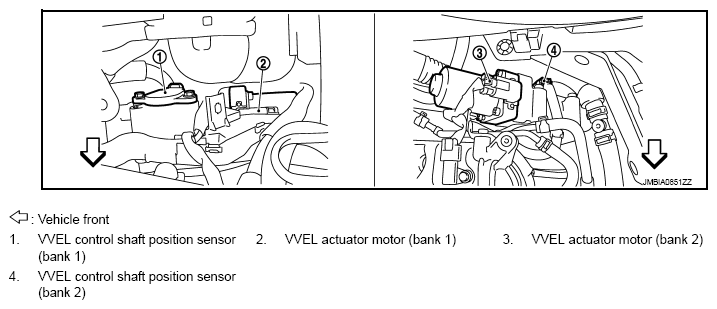

Fig 10: Identifying VVEL Control Shaft Position Sensor And VVEL Actuator Motor On Both Banks
G08102495Courtesy of NISSAN NORTH AMERICA, INC.

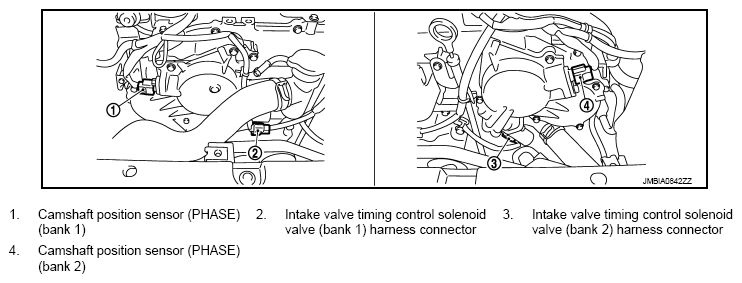

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector
G08102496Courtesy of NISSAN NORTH AMERICA, INC.

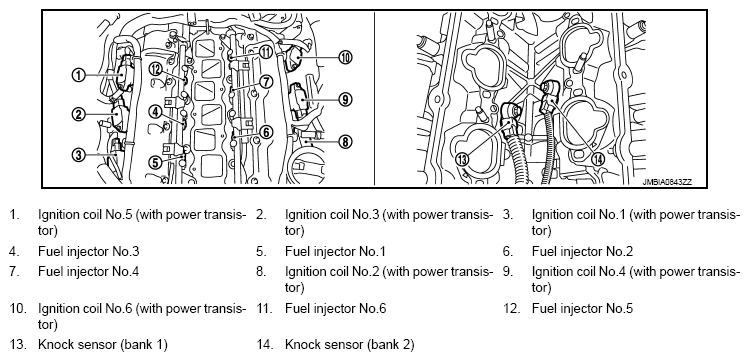

Fig 12: Identifying Ignition Coils And Fuel Injectors
G08102497Courtesy of NISSAN NORTH AMERICA, INC.

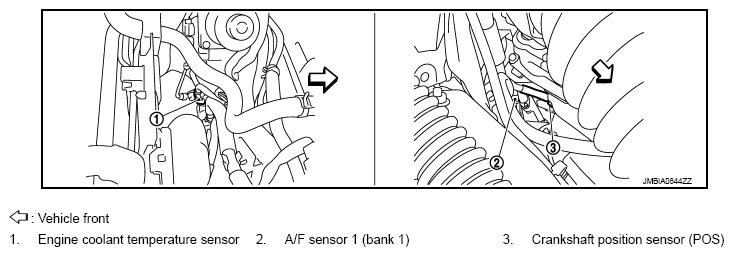

Fig 13: Identifying Engine Coolant Temperature Sensor And Crankshaft Position Sensor
G08102498Courtesy of NISSAN NORTH AMERICA, INC.

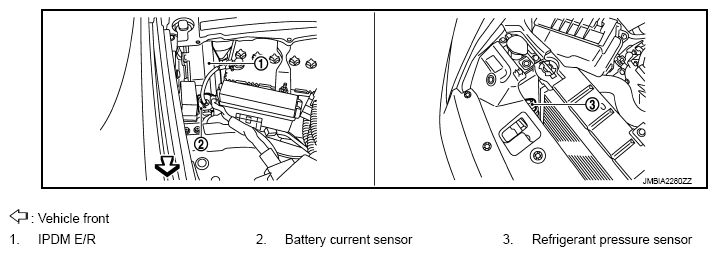

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor
G08102499Courtesy of NISSAN NORTH AMERICA, INC.

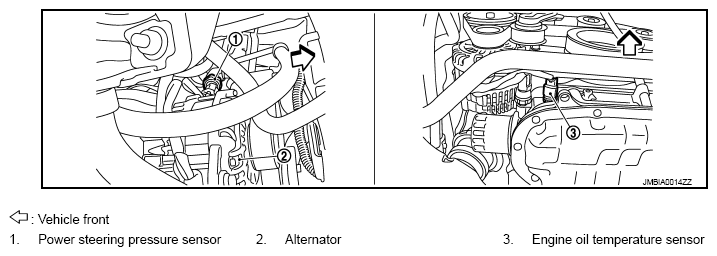

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor
G08102500Courtesy of NISSAN NORTH AMERICA, INC.

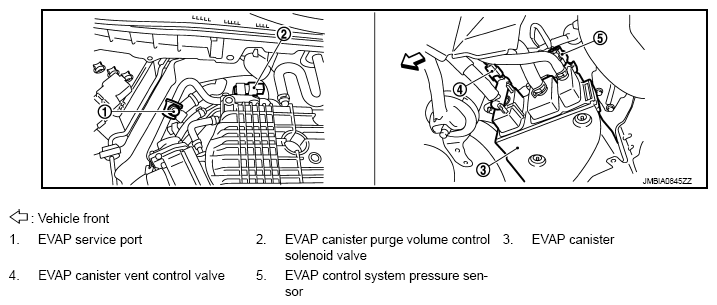

Fig 16: Identifying EVAP Service Port, EVAP Canister And EVAP Canister Vent Control Valve
G08102501Courtesy of NISSAN NORTH AMERICA, INC.

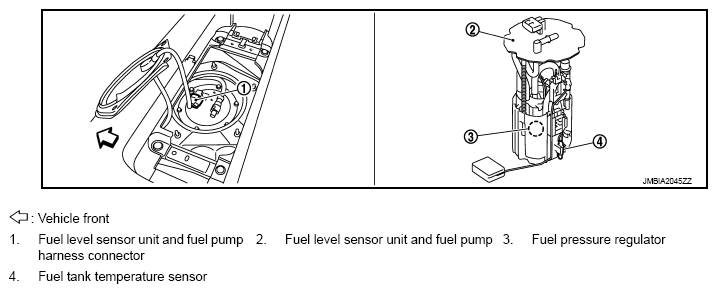

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump And Fuel Tank Temperature Sensor
G08102502Courtesy of NISSAN NORTH AMERICA, INC.

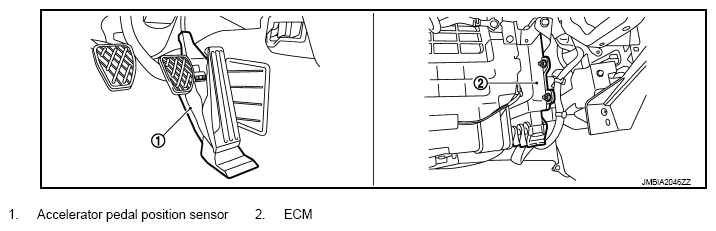

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM
G08102503Courtesy of NISSAN NORTH AMERICA, INC.

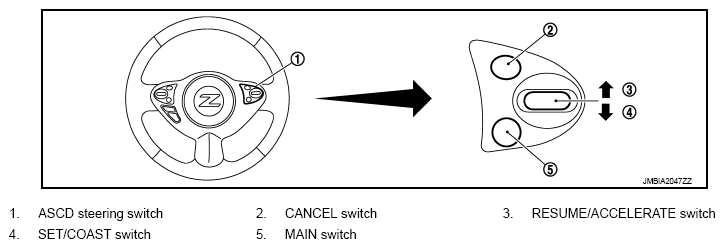

Fig 19: Identifying ASCD Steering Switch, Cancel Switch, Set/Coast Switch And Main Switch
G08102504Courtesy of NISSAN NORTH AMERICA, INC.

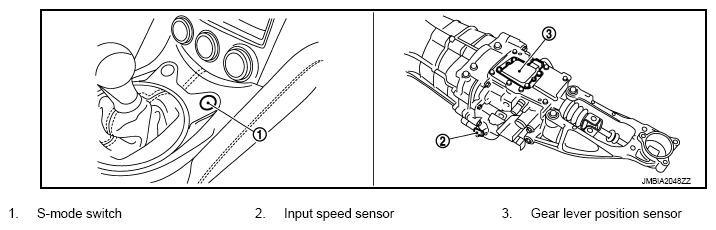

Fig 20: Identifying S-Mode Switch, Input Speed Sensor And Gear Lever Position Sensor
G08102505Courtesy of NISSAN NORTH AMERICA, INC.

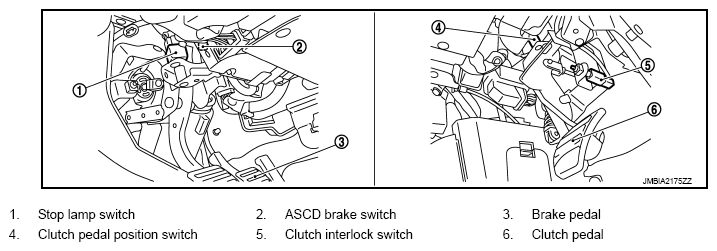

Fig 21: Identifying Stop Lamp Switch, ASCD Brake Switch, Brake Pedal And Clutch Interlock Switch
G08102506Courtesy of NISSAN NORTH AMERICA, INC.
