Component Parts Location

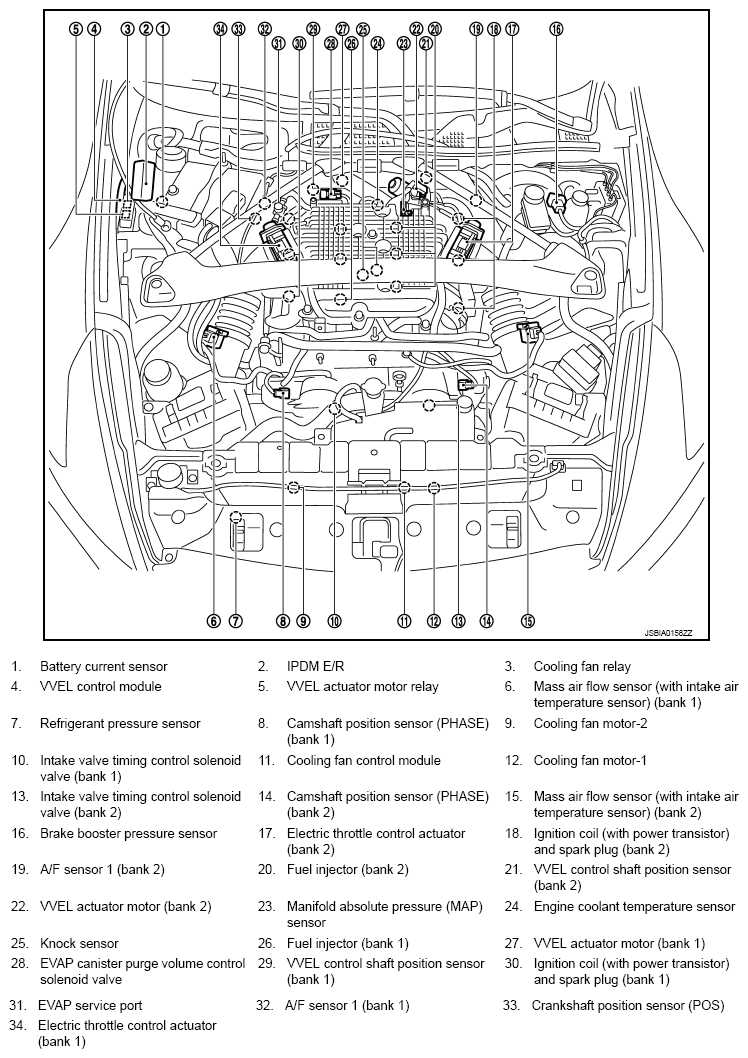

Fig 1: Identifying Engine Control System Component Parts Location

G08102420

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor) On Both Banks

G08102421

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Electric Throttle Control Actuator On Both Banks

G08102422

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Cooling Fan Motor, Cooling Fan Control Module And Cooling Fan Relay

G08102423

Courtesy of NISSAN NORTH AMERICA, INC.

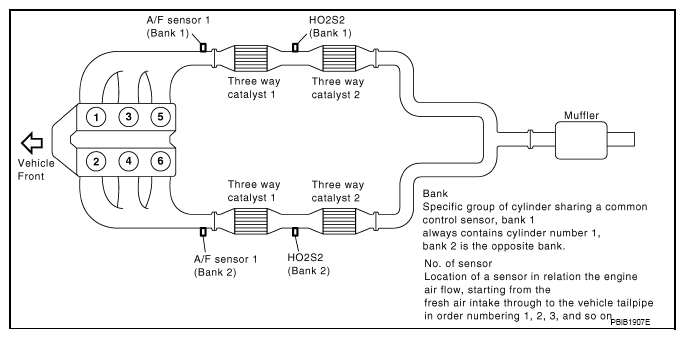

Fig 5: Engine Exhaust Control Components Location

G08102424

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor On Both Banks

G08102425

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor Harness Connector On Both Banks

G08102426

Courtesy of NISSAN NORTH AMERICA, INC.

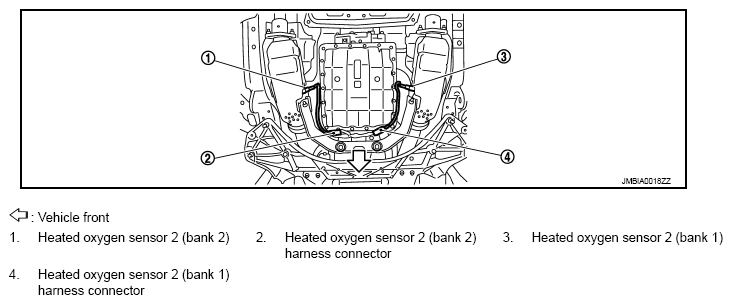

Fig 8: Identifying Heated Oxygen Sensor And Heated Oxygen Sensor Harness Connector On Both Banks

G08102427

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Manifold Absolute Pressure Sensor And Brake Booster Pressure Sensor

G08102428

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Control Shaft Position Sensor And VVEL Actuator Motor On Both Banks

G08102429

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector

G08102430

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Ignition Coils And Fuel Injectors

G08102431

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Coolant Temperature Sensor And Crankshaft Position Sensor

G08102432

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor

G08102433

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor

G08102434

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying EVAP Service Port, EVAP Canister And EVAP Canister Vent Control Valve

G08102435

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump, Fuel Pressure Regulator And Fuel Tank Temperature Sensor

G08102436

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM

G08102437

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying ASCD Steering Switch, Cancel Switch, Resume/Accelerate Switch And Main Switch

G08102438

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying S-Mode Switch, Input Speed Sensor And Gear Lever Position Sensor

G08102439

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Stop Lamp Switch, ASCD Brake Switch, Brake Pedal And Clutch Interlock Switch

G08102440

Courtesy of NISSAN NORTH AMERICA, INC.
