Component Parts Location

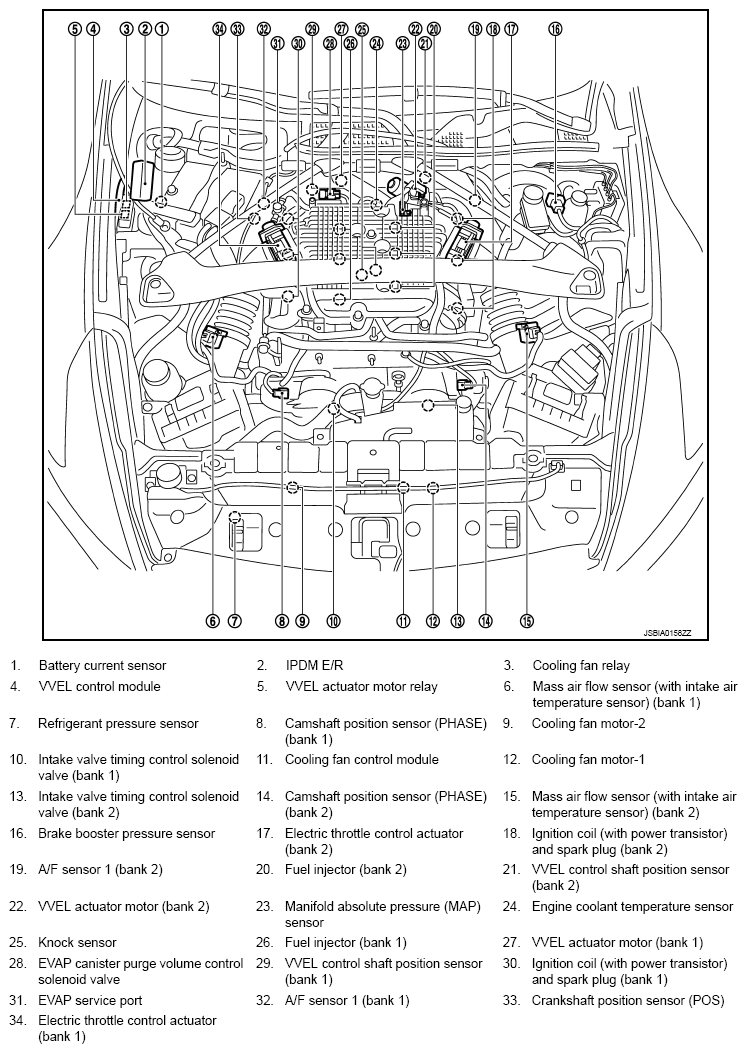

Fig 1: Identifying Engine Control System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Mass Air Flow Sensors Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Electric Throttle Control Actuator Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

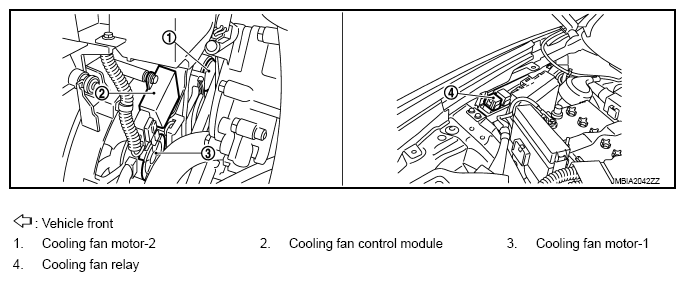

Fig 4: Identifying Cooling Fan Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

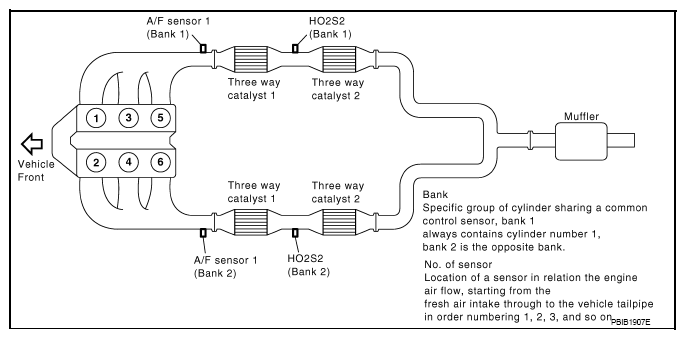

Fig 5: Identifying Engine Exhaust System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

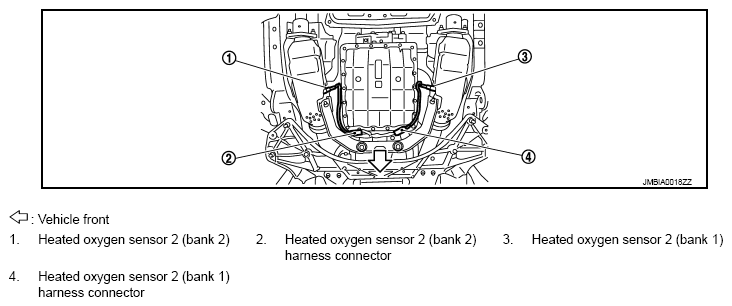

Fig 8: Identifying Heated Oxygen Sensor Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Manifold Absolute Pressure, Brake Booster Pressure Sensor & VVEL Actuator Motor Relay Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Actuator Motor & VVEL Control Shaft Position Sensor Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Camshaft Position Sensor & Intake Valve Timing Control Solenoid Valve Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Fuel Injector & Ignition Coil Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Coolant Temperature Sensor, A/F Sensor & Crank Sensor Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Battery Current Sensor And Refrigerant Pressure Sensor Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Power Steering Pressure Sensor & Engine Oil Temperature Sensor Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

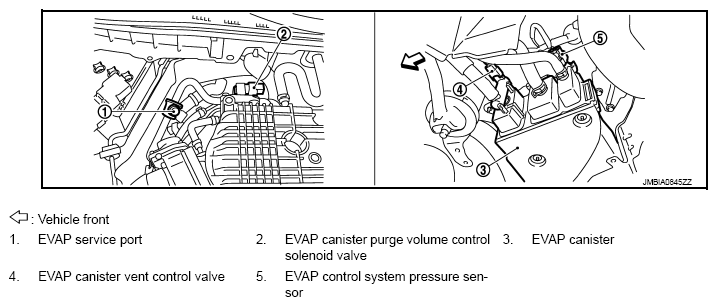

Fig 16: Identifying EVAP Service Port, EVAP Canister & EVAP Canister Vent Control Valve Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

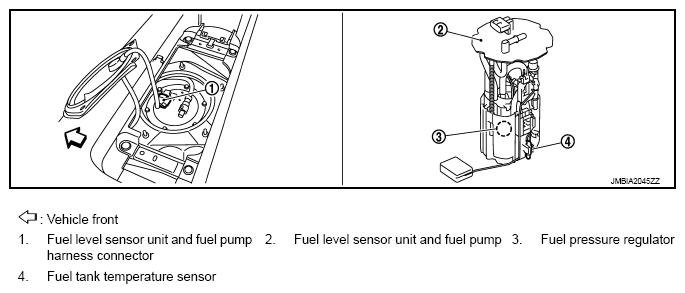

Fig 17: Identifying Fuel Level Sensor, Fuel Pump, Fuel Pressure Regulator & Fuel Tank Temperature Sensor Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

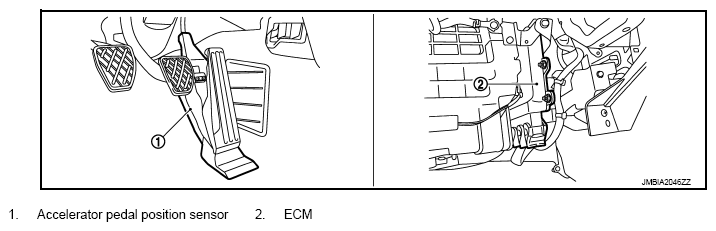

Fig 18: Identifying Accelerator Pedal Position Sensor & ECM Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

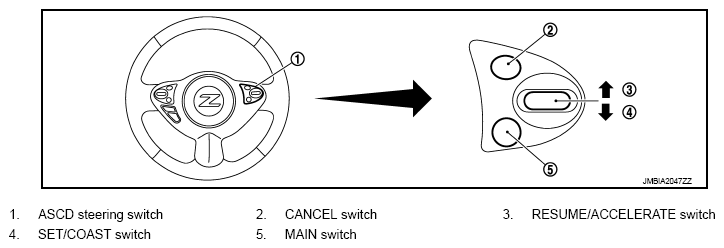

Fig 19: Identifying ASCD Steering Switch, Cancel Switch, Set/Coast Switch & Main Switch Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying S-Mode Switch, Input Speed Sensor & Gear Lever Position Sensor Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

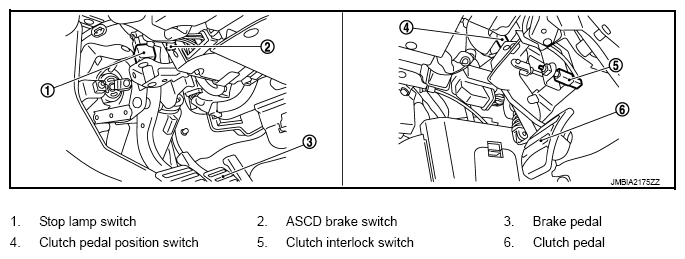

Fig 21: Identifying Stop Lamp Switch, ASCD Brake Switch, Brake Pedal & Clutch Pedal Position Switch Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.
