Component Parts Location

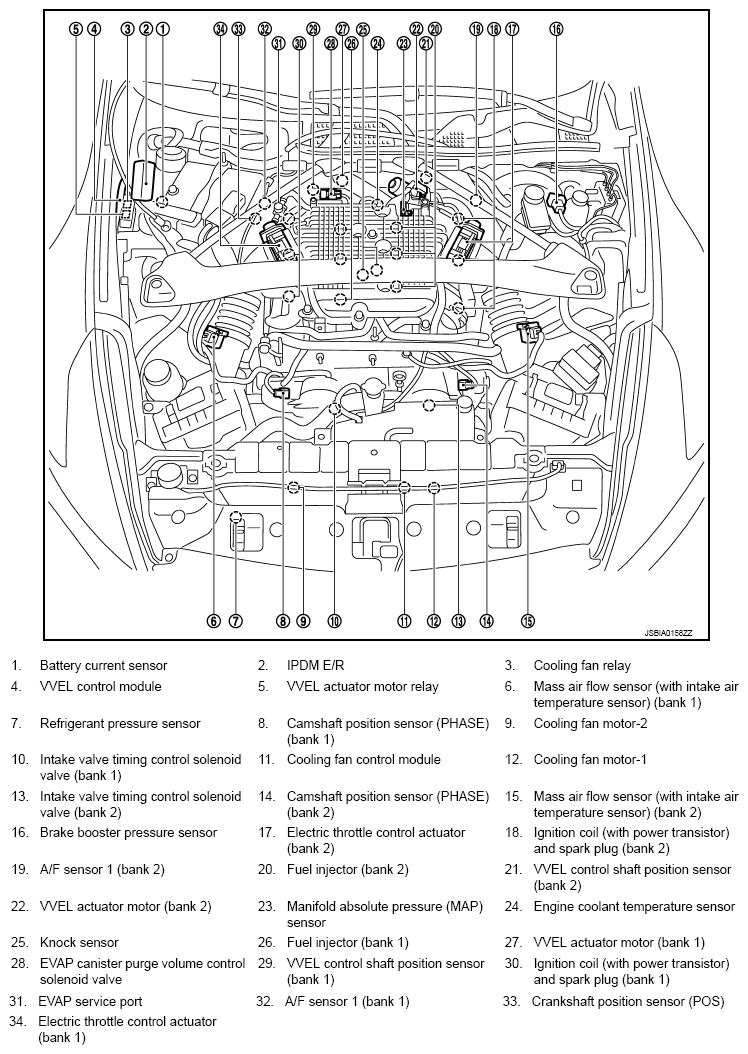

Fig 1: Identifying Engine Control System Component Parts Location

G08102509

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)

G08102510

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Electric Throttle Control Actuator

G08102511

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Cooling Fan Motor, Cooling Fan Control Module And Cooling Fan Relay

G08102512

Courtesy of NISSAN NORTH AMERICA, INC.

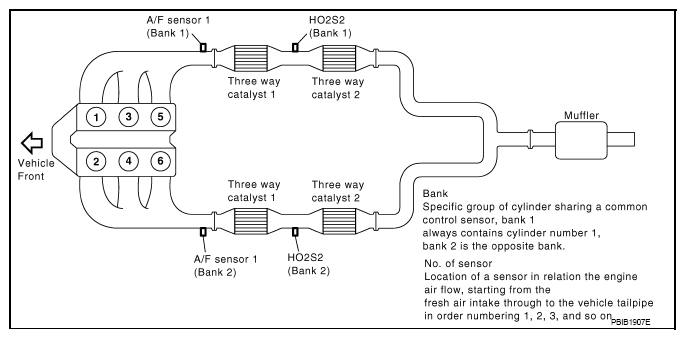

Fig 5: Identifying Engine Exhaust Control Component Parts Location

G08102513

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor On Both Banks

G08102514

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor Harness Connector On Both Banks

G08102515

Courtesy of NISSAN NORTH AMERICA, INC.

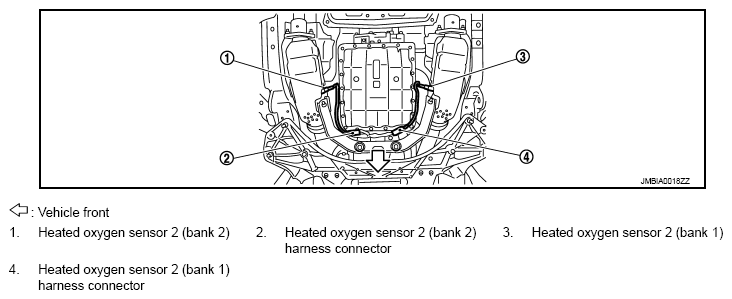

Fig 8: Identifying Heated Oxygen Sensor And Heated Oxygen Sensor Harness Connector On Both Banks

G08102516

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Manifold Absolute Pressure Sensor, Brake Booster Pressure Sensor And VVEL Control Module

G08102517

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Control Shaft Position Sensor And VVEL Actuator Motor On Both Banks

G08102518

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector

G08102519

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Fuel Injectors And Ignition Coils

G08102520

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Coolant Temperature Sensor, A/F Sensor And Crankshaft Position Sensor

G08102521

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor

G08102522

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor

G08102523

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying EVAP Service Port, EVAP Canister And EVAP Canister Vent Control Valve

G08102524

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump Harness Connector And Fuel Level Sensor Unit And Fuel Pump

G08102525

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM

G08102526

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying ASCD Steering Switch, Cancel Switch, Set/Coast Switch And Main Switch

G08102527

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying S-Mode Switch, Input Speed Sensor And Gear Lever Position Sensor

G08102528

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Stop Lamp Switch, ASCD Brake Switch, Brake Pedal And Clutch Pedal Position Switch

G08102529

Courtesy of NISSAN NORTH AMERICA, INC.
