Component Parts Location

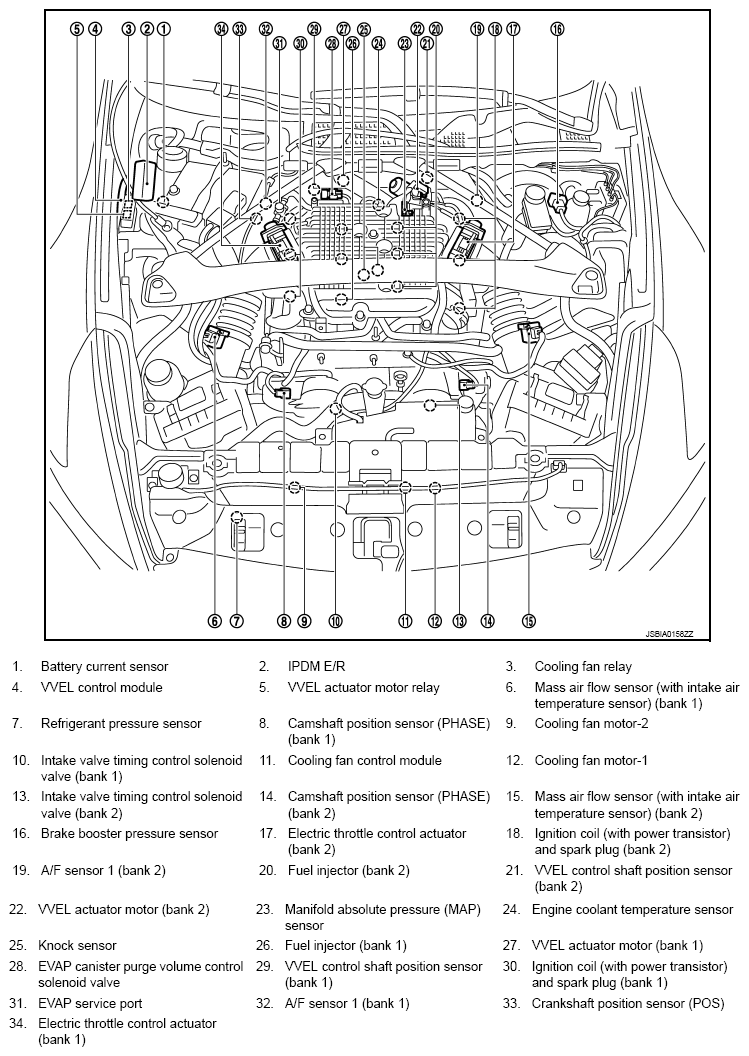

Fig 1: Engine Control System Component Parts Location
G08102599Courtesy of NISSAN NORTH AMERICA, INC.

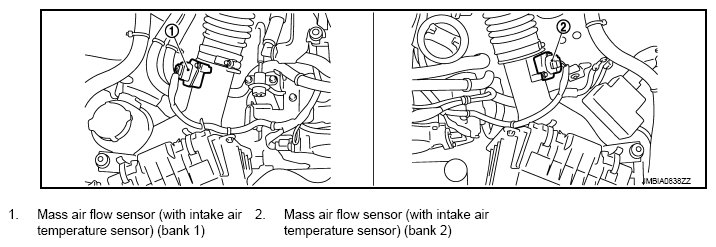

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)
G08102600Courtesy of NISSAN NORTH AMERICA, INC.

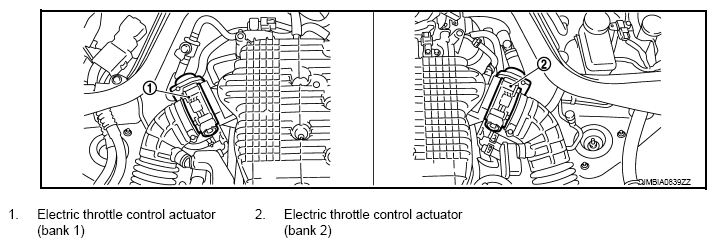

Fig 3: Identifying Electric Throttle Control Actuator On Both Banks
G08102601Courtesy of NISSAN NORTH AMERICA, INC.

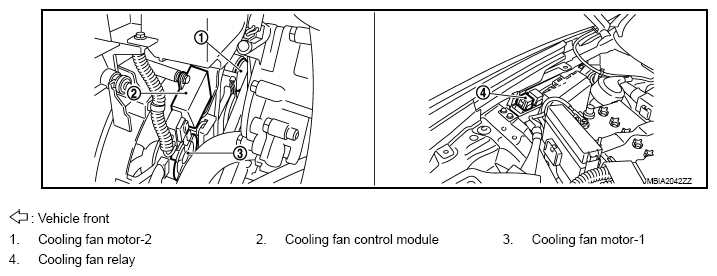

Fig 4: Identifying Cooling Fan Motor, Cooling Fan Control Module And Cooling Fan Relay
G08102602Courtesy of NISSAN NORTH AMERICA, INC.

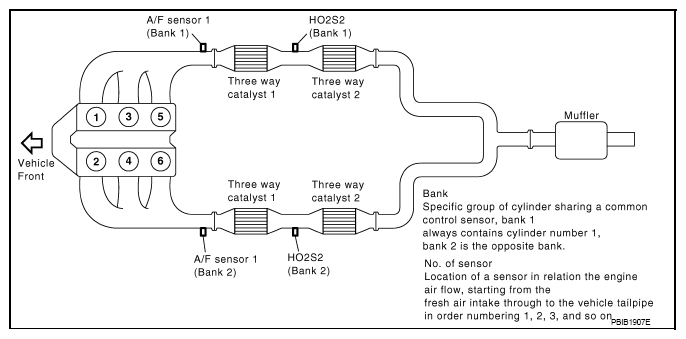

Fig 5: Identifying Engine Exhaust System Control Component Parts Location
G08102603Courtesy of NISSAN NORTH AMERICA, INC.

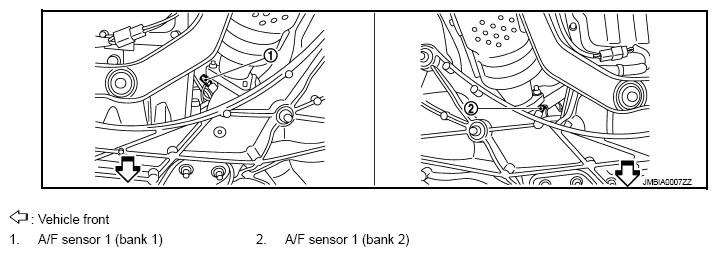

Fig 6: Identifying A/F Sensor On Both Banks
G08102604Courtesy of NISSAN NORTH AMERICA, INC.

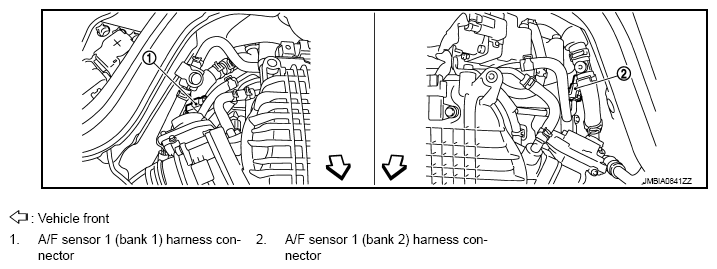

Fig 7: Identifying A/F Sensor Harness Connector On Both Banks
G08102605Courtesy of NISSAN NORTH AMERICA, INC.

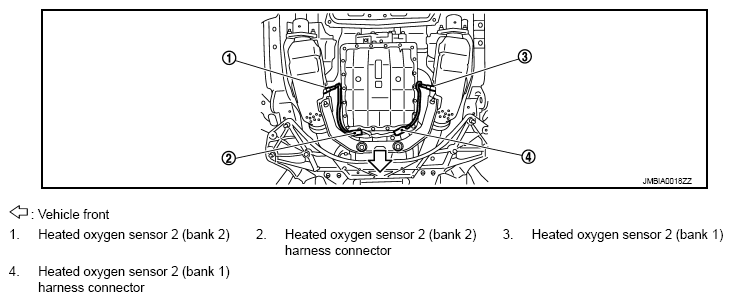

Fig 8: Identifying Heated Oxygen Sensor And Heated Oxygen Sensor Harness Connector On Both Banks
G08102606Courtesy of NISSAN NORTH AMERICA, INC.

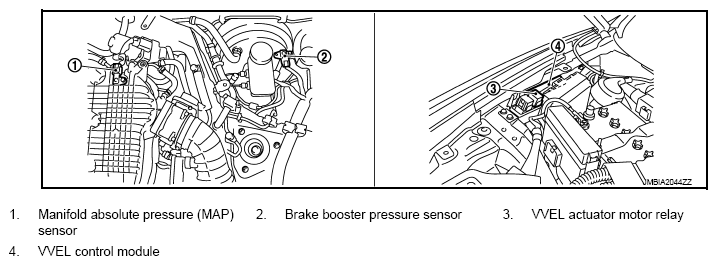

Fig 9: Identifying Manifold Absolute Pressure Sensor, Brake Booster Pressure Sensor And VVEL Control Module
G08102607Courtesy of NISSAN NORTH AMERICA, INC.

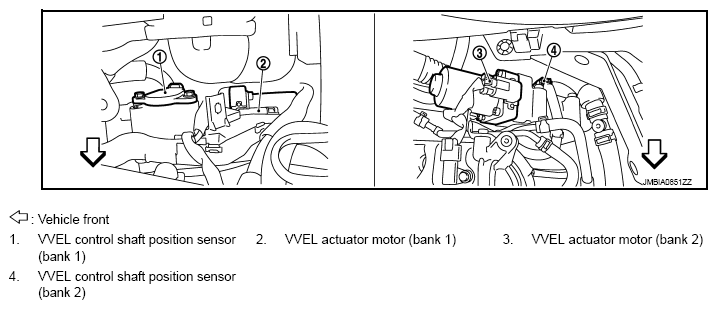

Fig 10: Identifying VVEL Control Shaft Position Sensor And VVEL Actuator Motor
G08102608Courtesy of NISSAN NORTH AMERICA, INC.

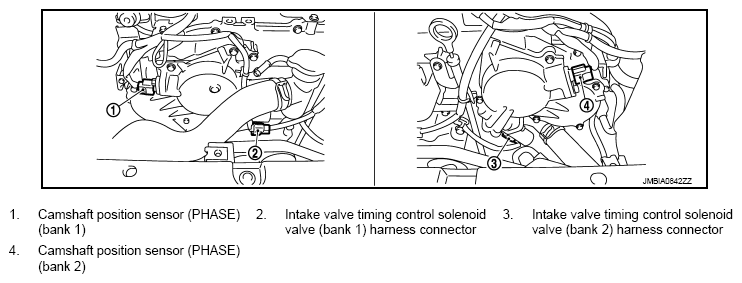

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector
G08102609Courtesy of NISSAN NORTH AMERICA, INC.

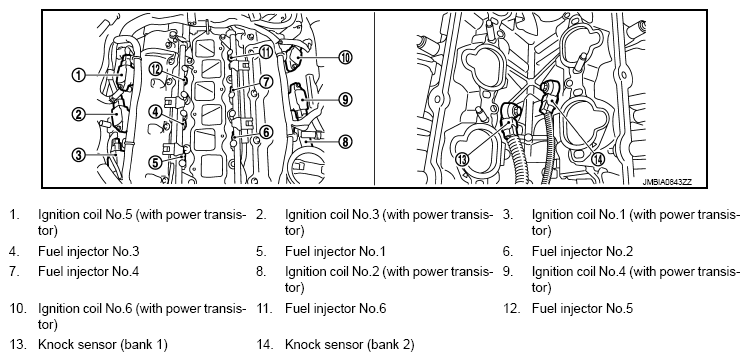

Fig 12: Identifying Ignition Coils And Fuel Injectors
G08102610Courtesy of NISSAN NORTH AMERICA, INC.

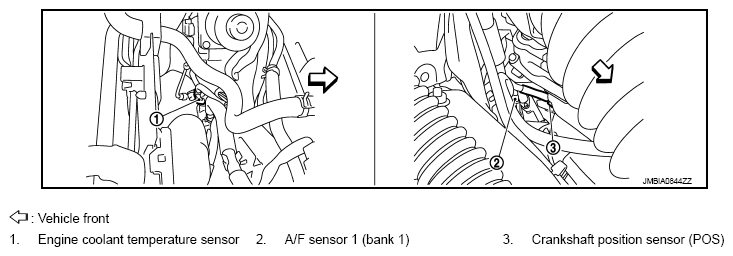

Fig 13: Identifying Engine Coolant Temperature Sensor And A/F Sensor
G08102611Courtesy of NISSAN NORTH AMERICA, INC.

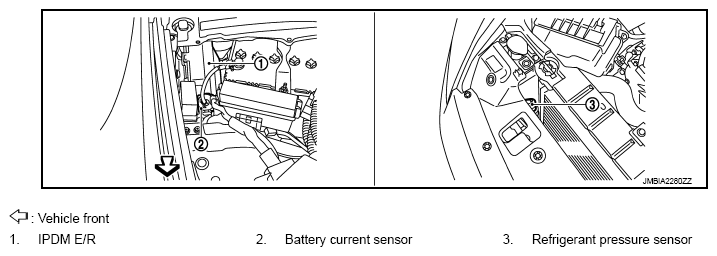

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor
G08102612Courtesy of NISSAN NORTH AMERICA, INC.

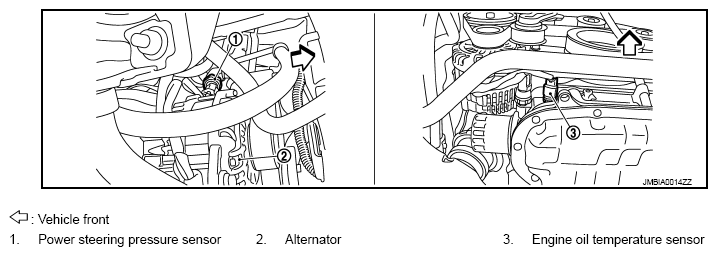

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor
G08102613Courtesy of NISSAN NORTH AMERICA, INC.

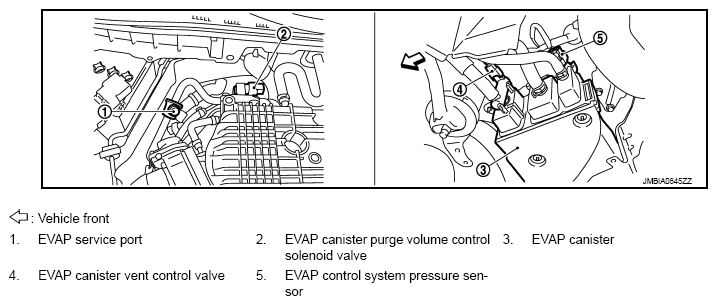

Fig 16: Identifying EVAP Service Port, EVAP Canister And EVAP Canister Vent Control Valve
G08102614Courtesy of NISSAN NORTH AMERICA, INC.

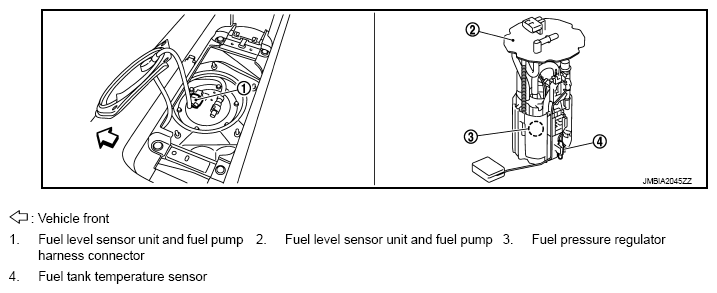

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump And Fuel Pressure Regulator
G08102615Courtesy of NISSAN NORTH AMERICA, INC.

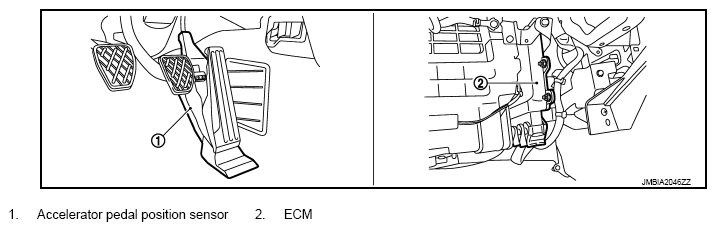

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM
G08102616Courtesy of NISSAN NORTH AMERICA, INC.

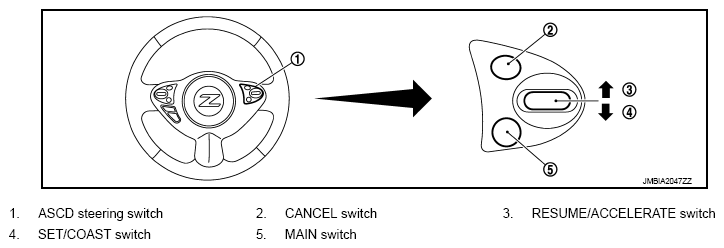

Fig 19: Identifying ASCD Steering Switch, Cancel Switch, Set/Coast Switch And Main Switch
G08102617Courtesy of NISSAN NORTH AMERICA, INC.

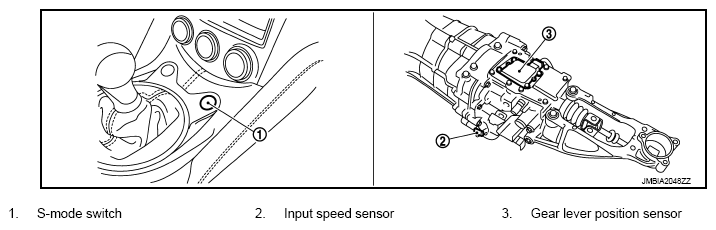

Fig 20: Identifying S-Mode Switch, Input Speed Sensor And Gear Lever Position Sensor
G08102618Courtesy of NISSAN NORTH AMERICA, INC.

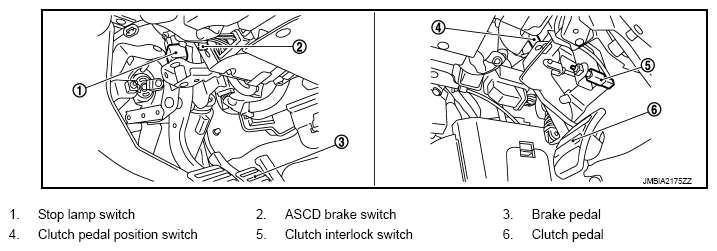

Fig 21: Identifying Stop Lamp Switch, ASCD Brake Switch And Brake Pedal
G08102619Courtesy of NISSAN NORTH AMERICA, INC.
