Component Parts Location

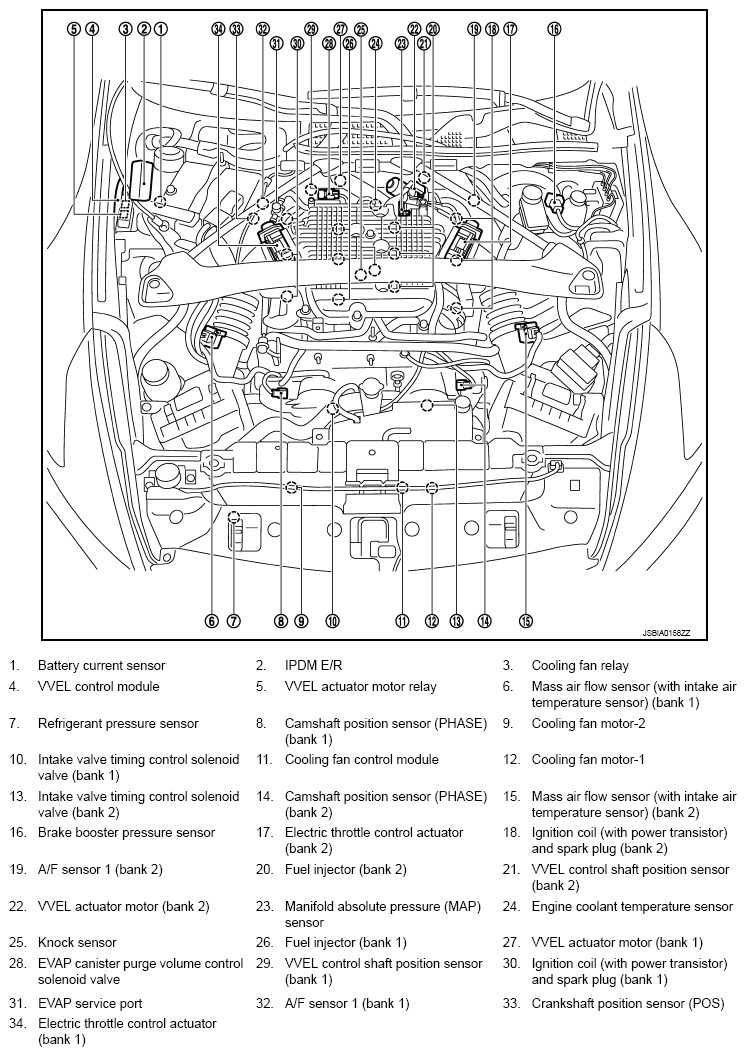

Fig 1: Engine Control System Component Parts Location

G08102555

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)

G08102556

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Electric Throttle Control Actuator On Both Banks

G08102557

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Cooling Fan Motor, Cooling Fan Control Module And Cooling Fan Relay

G08102558

Courtesy of NISSAN NORTH AMERICA, INC.

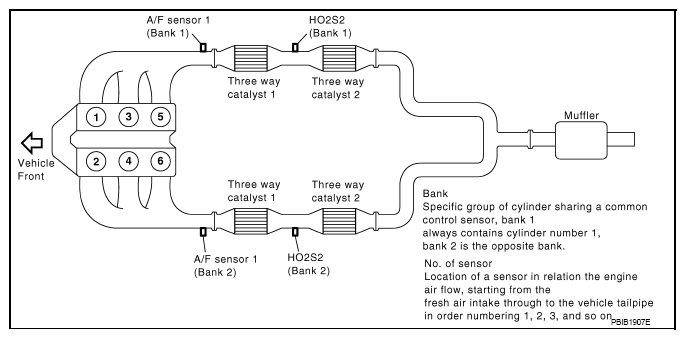

Fig 5: Identifying Engine Exhaust System Components

G08102559

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying A/F Sensor On Both Banks

G08102560

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying A/F Sensor Harness Connector On Both Banks

G08102561

Courtesy of NISSAN NORTH AMERICA, INC.

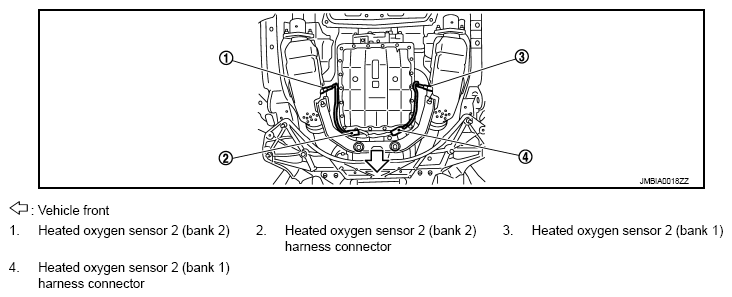

Fig 8: Identifying Heated Oxygen Sensor And Heated Oxygen Sensor Harness Connector

G08102562

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Manifold Absolute Pressure Sensor, Brake Booster Pressure Sensor And VVEL Control Module

G08102563

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying VVEL Control Shaft Position Sensor And VVEL Actuator Motor

G08102564

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Camshaft Position Sensor And Intake Valve Timing Control Solenoid Valve Harness Connector

G08102565

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Ignition Coils And Fuel Injectors

G08102566

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Coolant Temperature Sensor, A/F Sensor And Crankshaft Position Sensor

G08102567

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor

G08102568

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor

G08102569

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying EVAP Service Port, EVAP Canister And EVAP Canister Vent Control Valve

G08102570

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Fuel Level Sensor Unit And Fuel Pump, Fuel Pressure Regulator And Fuel Tank Temperature Sensor

G08102571

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Accelerator Pedal Position Sensor And ECM

G08102572

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying ASCD Steering Switch, Cancel Switch And Main Switch

G08102573

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying S-Mode Switch, Input Speed Sensor And Gear Lever Position Sensor

G08102574

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Stop Lamp Switch, ASCD Brake Switch, Brake Pedal And Clutch Interlock Switch

G08102575

Courtesy of NISSAN NORTH AMERICA, INC.
