System - Basic Engine Control System

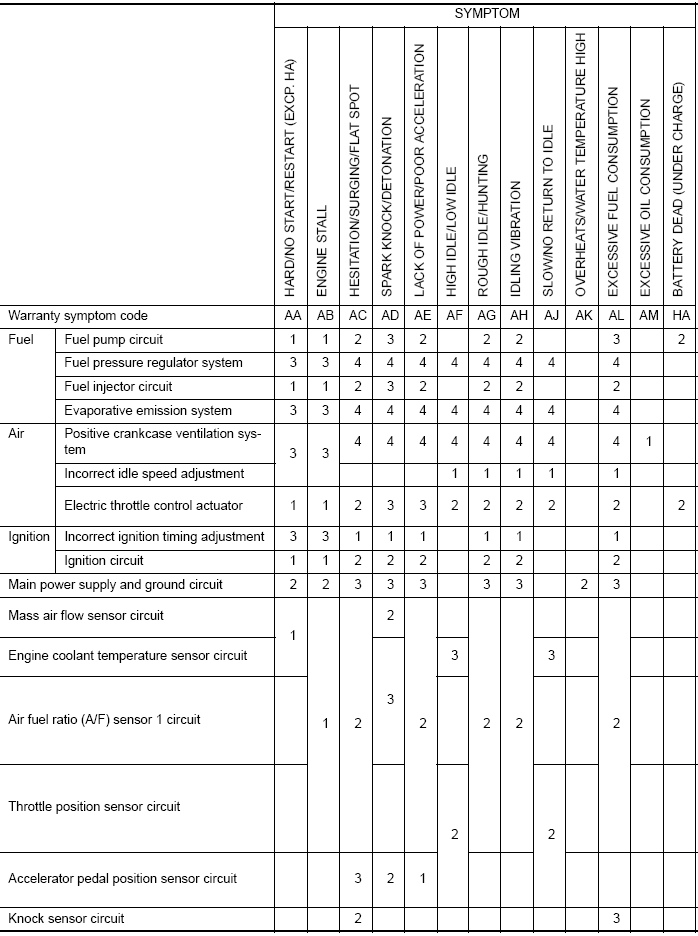

Fig 1: Identifying Engine Control System Symptom Chart
G08102835Courtesy of NISSAN NORTH AMERICA, INC.

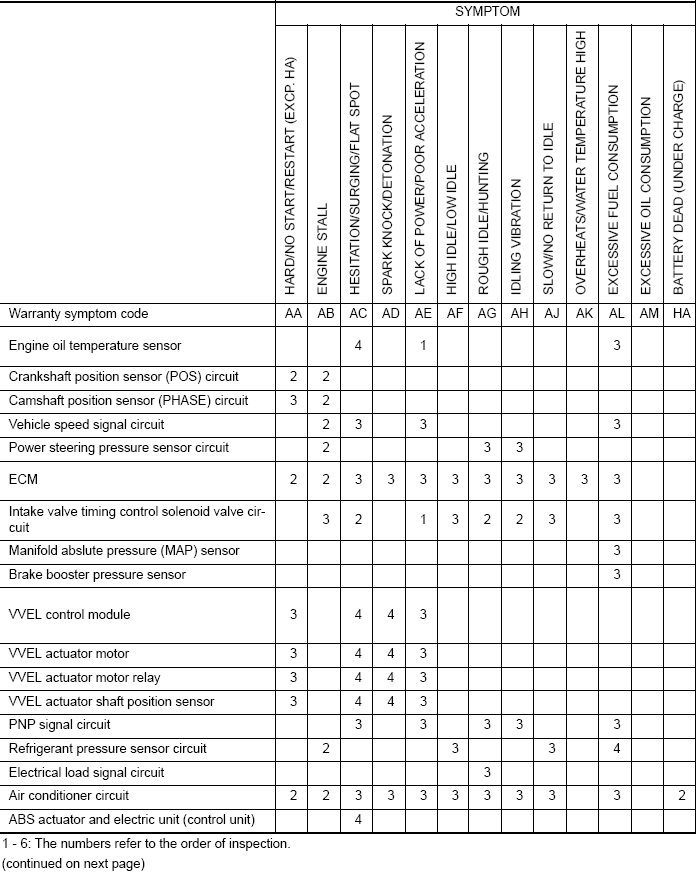

Fig 2: Identifying Engine Control System Symptom Chart
G08102836Courtesy of NISSAN NORTH AMERICA, INC.
