Exploded View

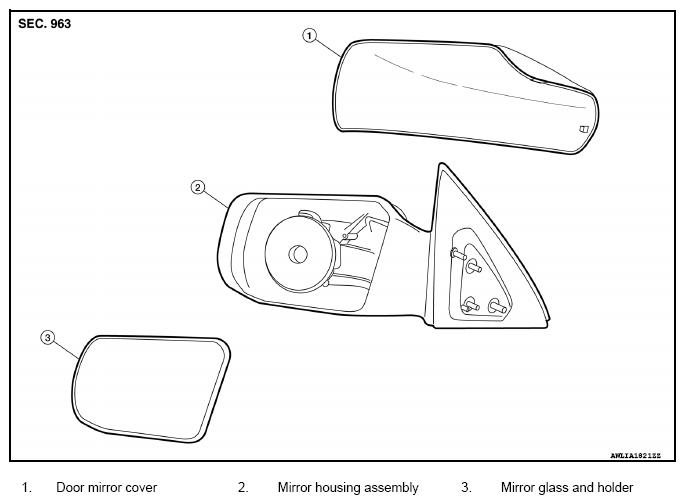

Fig 1: Identifying Door Mirror Cover, Mirror Housing Assembly, Mirror Glass And Holder
G08434765Courtesy of NISSAN NORTH AMERICA, INC.
