Front Regulator: Components

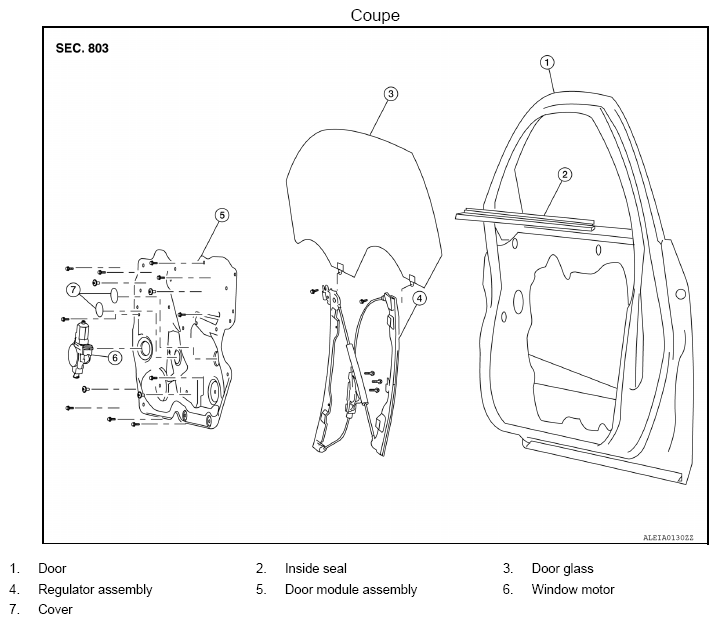

Fig 1: Identifying Front Regulator Components - Coupe
G08438570Courtesy of NISSAN NORTH AMERICA, INC.

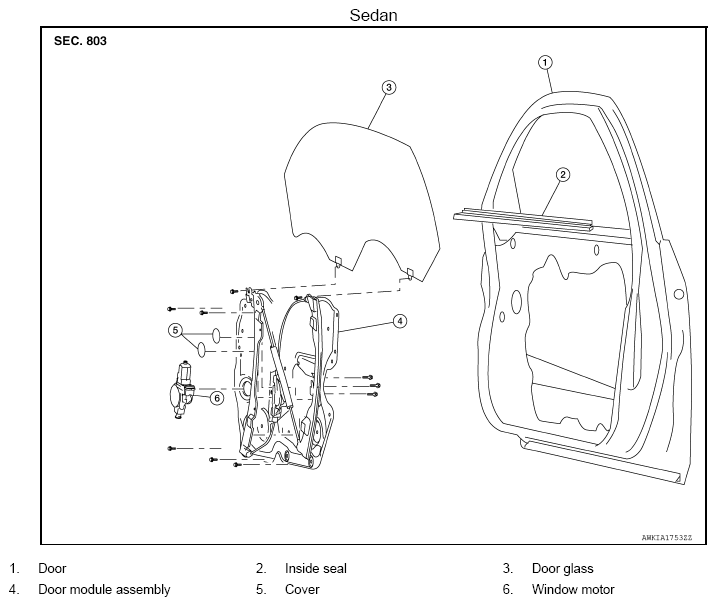

Fig 2: Identifying Front Regulator Components - Sedan
G08438571Courtesy of NISSAN NORTH AMERICA, INC.
