Rear Regulator: Components

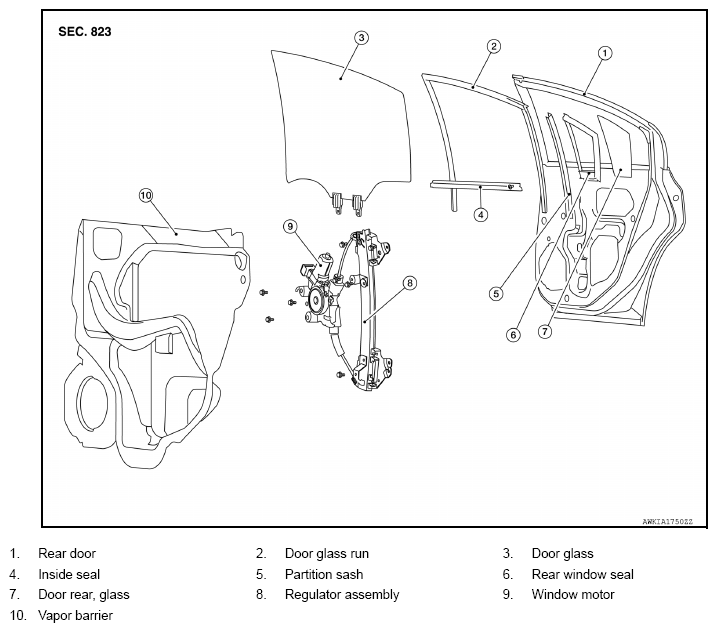

Fig 1: Identifying Rear Regulator Components
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
