Rear Window Glass: Components

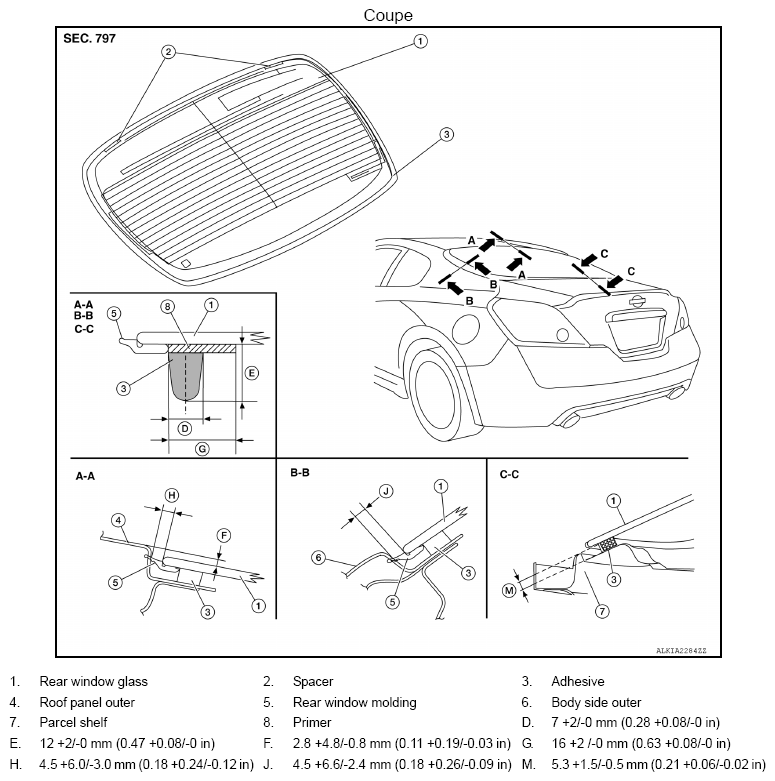

Fig 1: Identifying Rear Window Glass Components - Coupe
G08438563Courtesy of NISSAN NORTH AMERICA, INC.

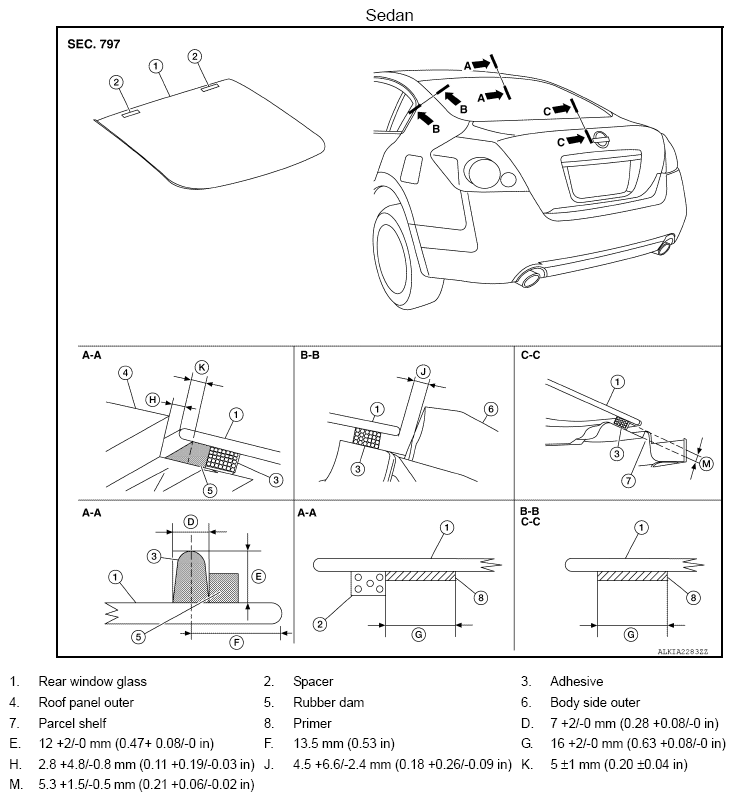

Fig 2: Identifying Rear Window Glass Components - Sedan
G08438564Courtesy of NISSAN NORTH AMERICA, INC.
