Exploded View

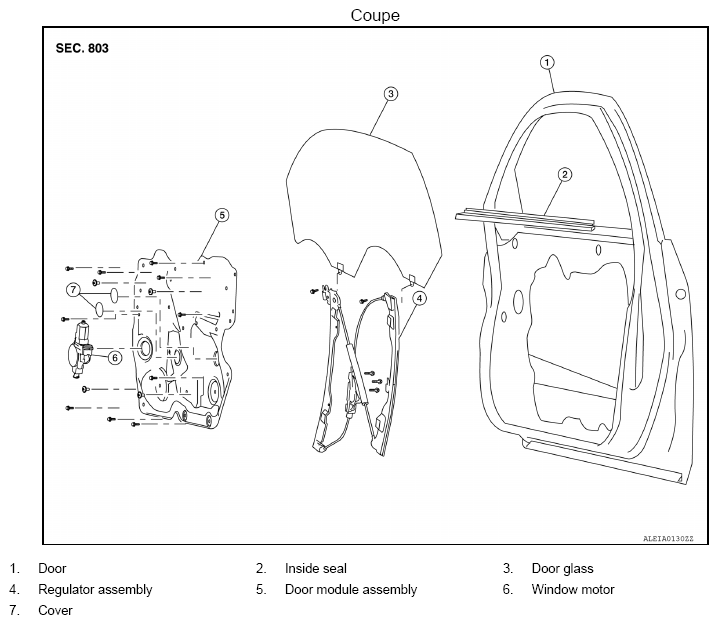

Fig 1: Exploded View Of Front Regulator - Coupe
G08438588Courtesy of NISSAN NORTH AMERICA, INC.

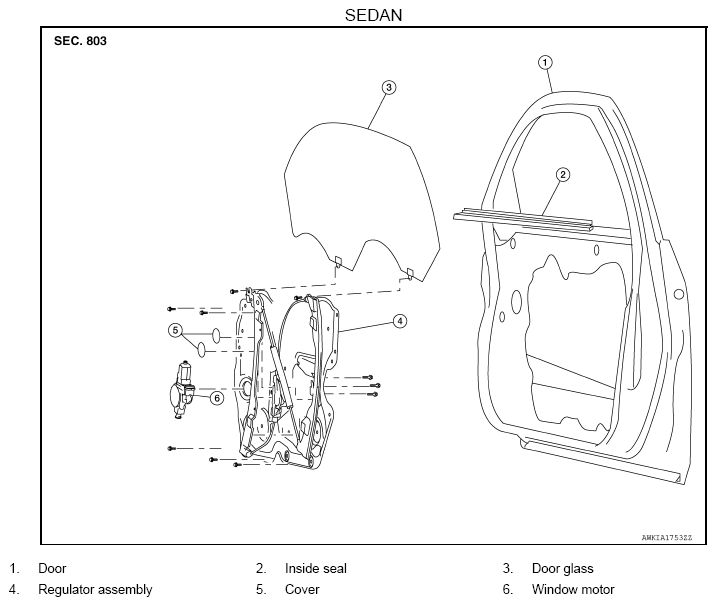

Fig 2: Exploded View Of Front Regulator - Sedan
G08438589Courtesy of NISSAN NORTH AMERICA, INC.
