Connector Terminal Identification - Coupe

WARNING: This page is about a different variant/trim than selected.

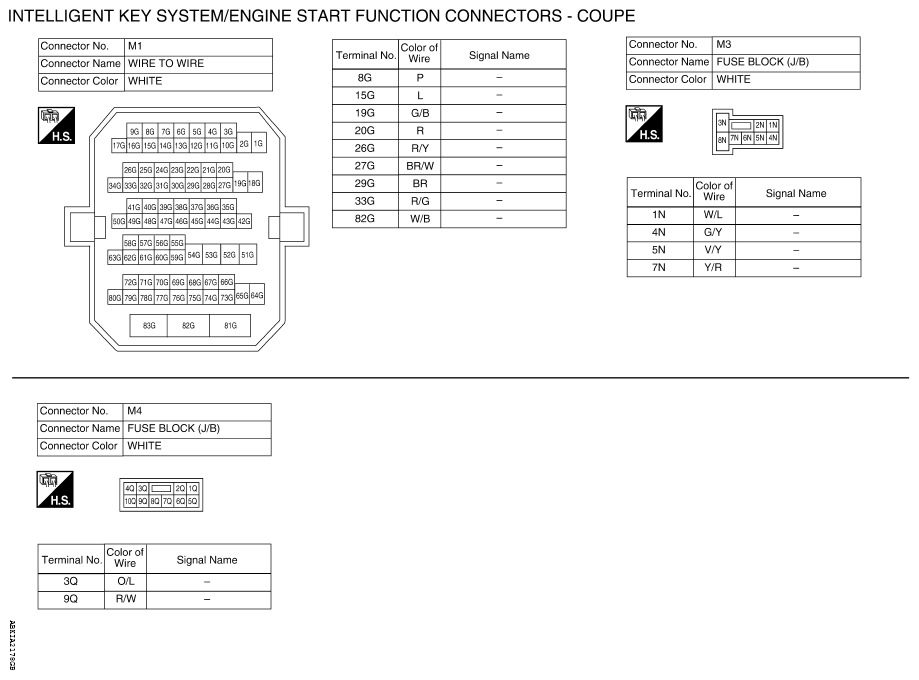

Fig 1: Identifying Intelligent Key System/Engine Start Function Connectors - Coupe (1 Of 10)
G06559312Courtesy of NISSAN NORTH AMERICA, INC.

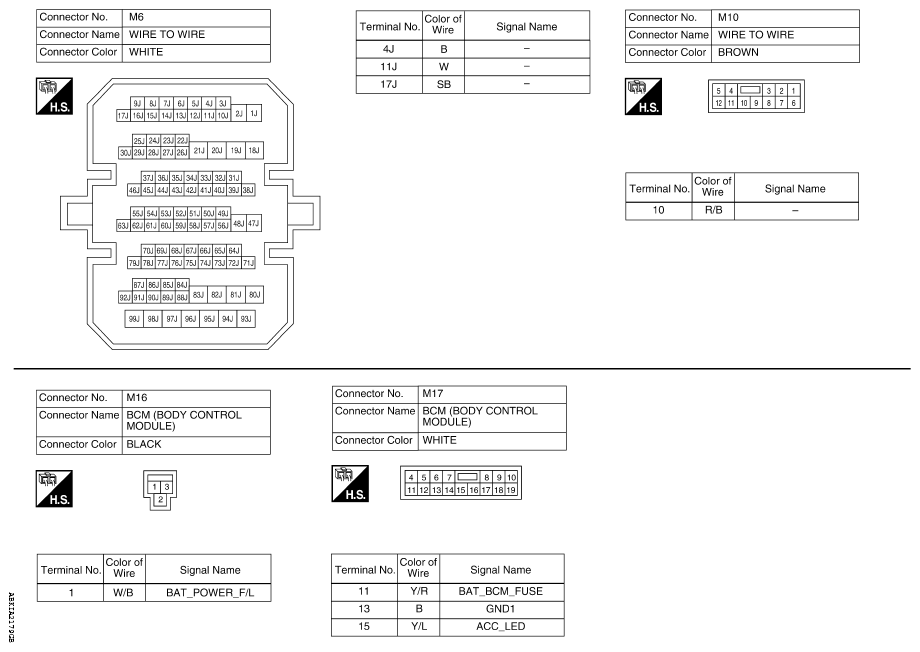

Fig 2: Identifying Intelligent Key System/Engine Start Function Connectors - Coupe (2 Of 10)
G06559313Courtesy of NISSAN NORTH AMERICA, INC.

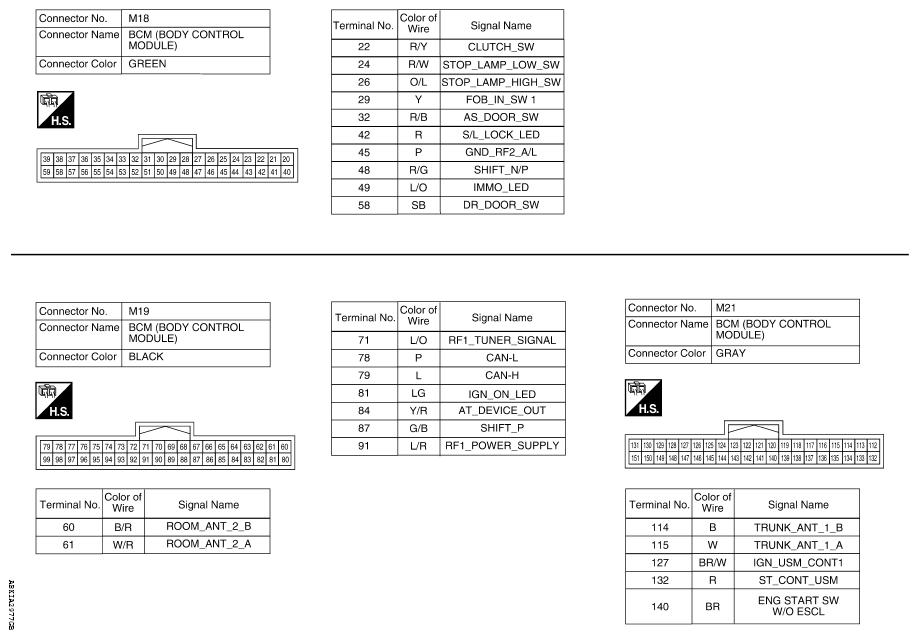

Fig 3: Identifying Intelligent Key System/Engine Start Function Connectors - Coupe (3 Of 10)
G06999778Courtesy of NISSAN NORTH AMERICA, INC.

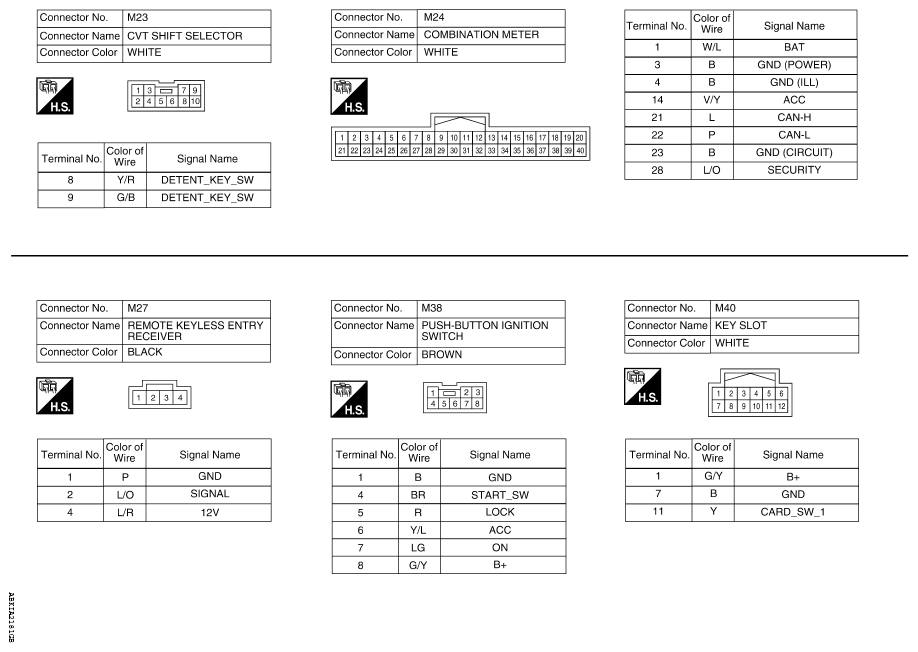

Fig 4: Identifying Intelligent Key System/Engine Start Function Connectors - Coupe (4 Of 10)
G06559315Courtesy of NISSAN NORTH AMERICA, INC.

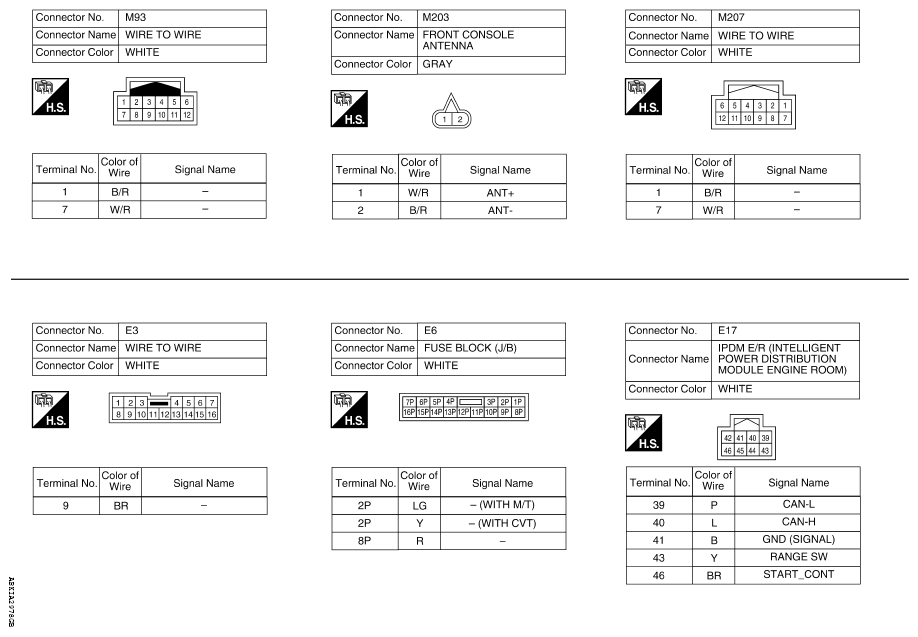

Fig 5: Identifying Intelligent Key System/Engine Start Function Connectors - Coupe (5 Of 10)
G06999780Courtesy of NISSAN NORTH AMERICA, INC.

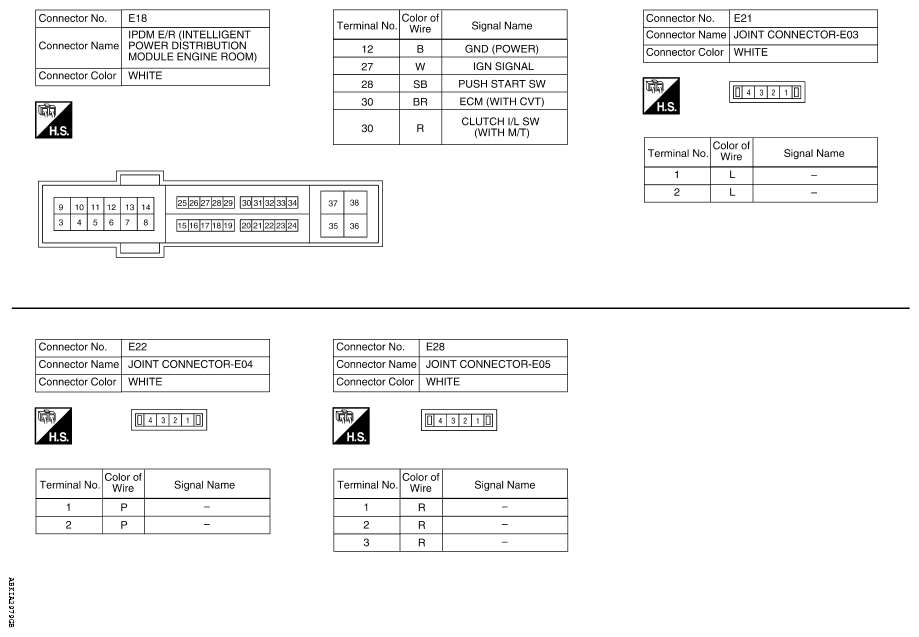

Fig 6: Identifying Intelligent Key System/Engine Start Function Connectors - Coupe (6 Of 10)
G06999781Courtesy of NISSAN NORTH AMERICA, INC.

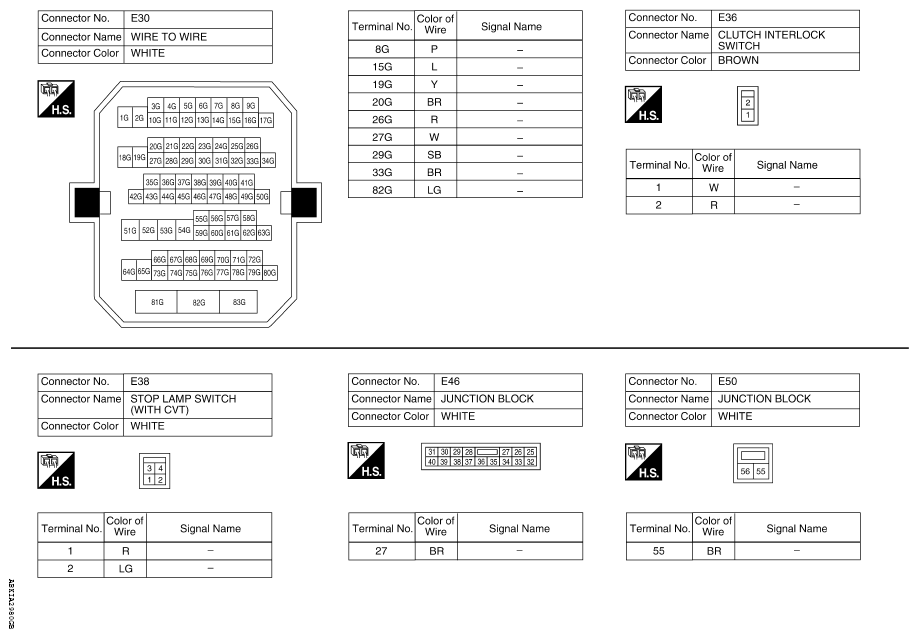

Fig 7: Identifying Intelligent Key System/Engine Start Function Connectors - Coupe (7 Of 10)
G06999782Courtesy of NISSAN NORTH AMERICA, INC.

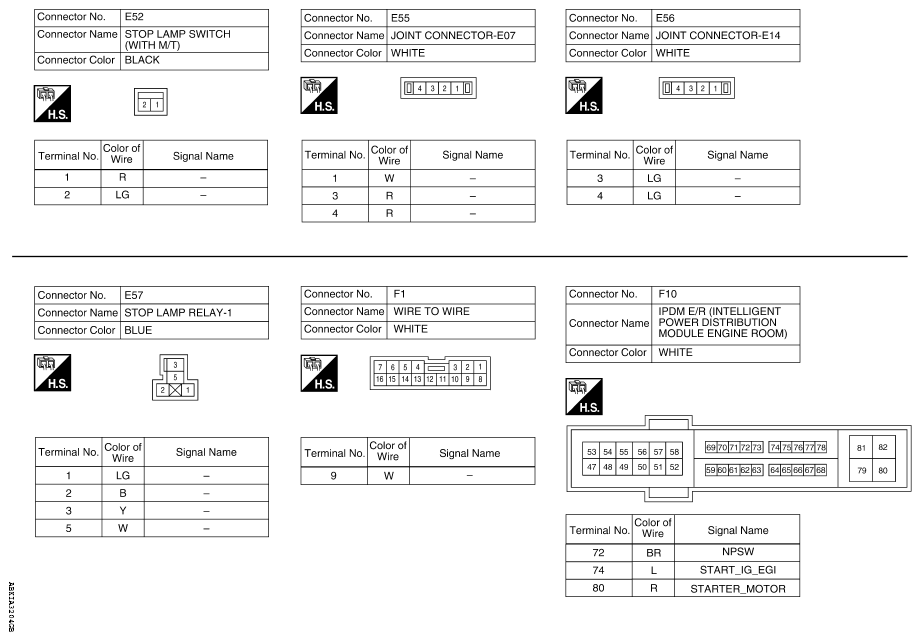

Fig 8: Identifying Intelligent Key System/Engine Start Function Connectors - Coupe (8 Of 10)
G08126506Courtesy of NISSAN NORTH AMERICA, INC.

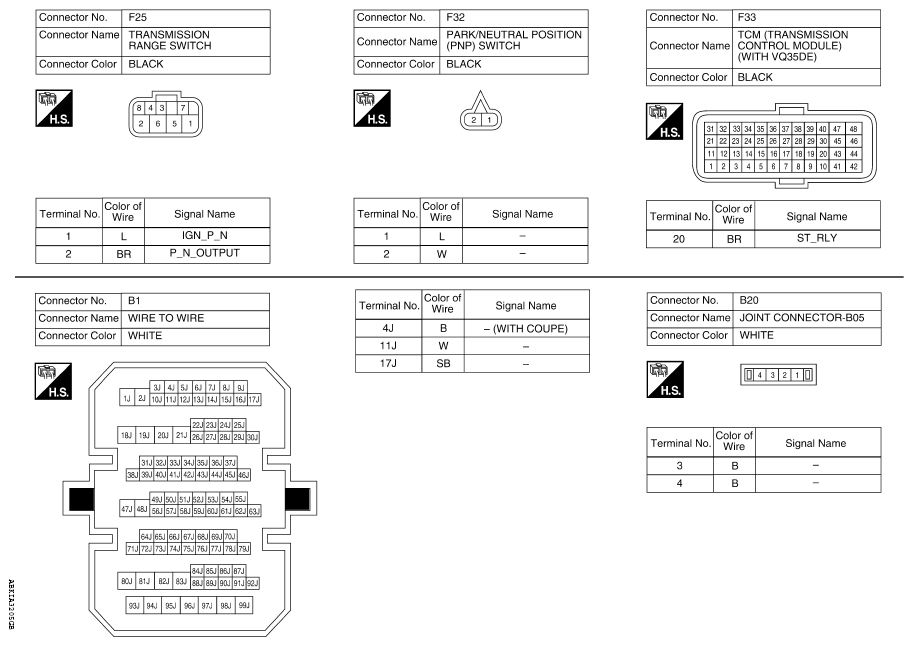

Fig 9: Identifying Intelligent Key System/Engine Start Function Connectors - Coupe (9 Of 10)
G08126507Courtesy of NISSAN NORTH AMERICA, INC.

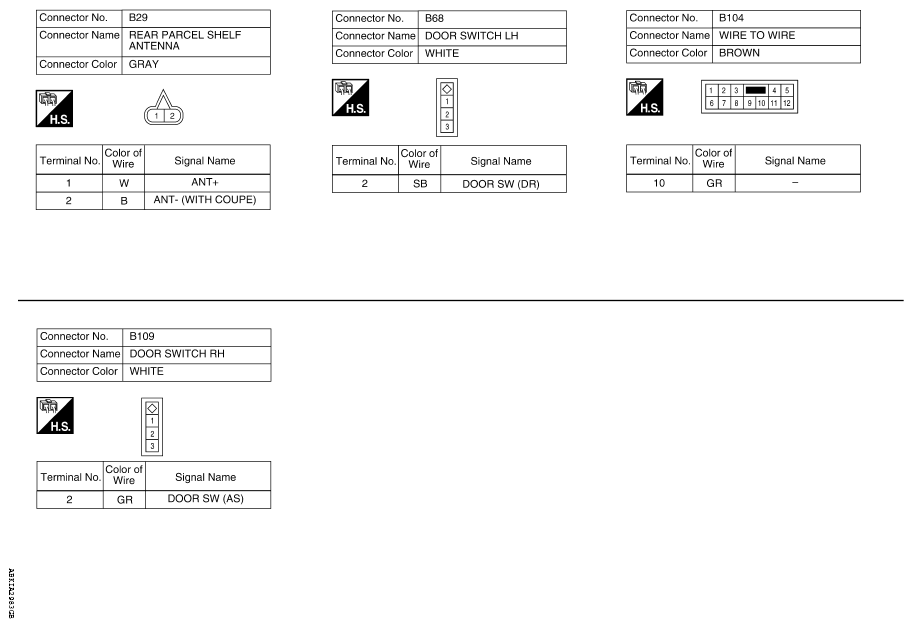

Fig 10: Identifying Intelligent Key System/Engine Start Function Connectors - Coupe (10 Of 10)
G06999785Courtesy of NISSAN NORTH AMERICA, INC.
