Front Seat Belt
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

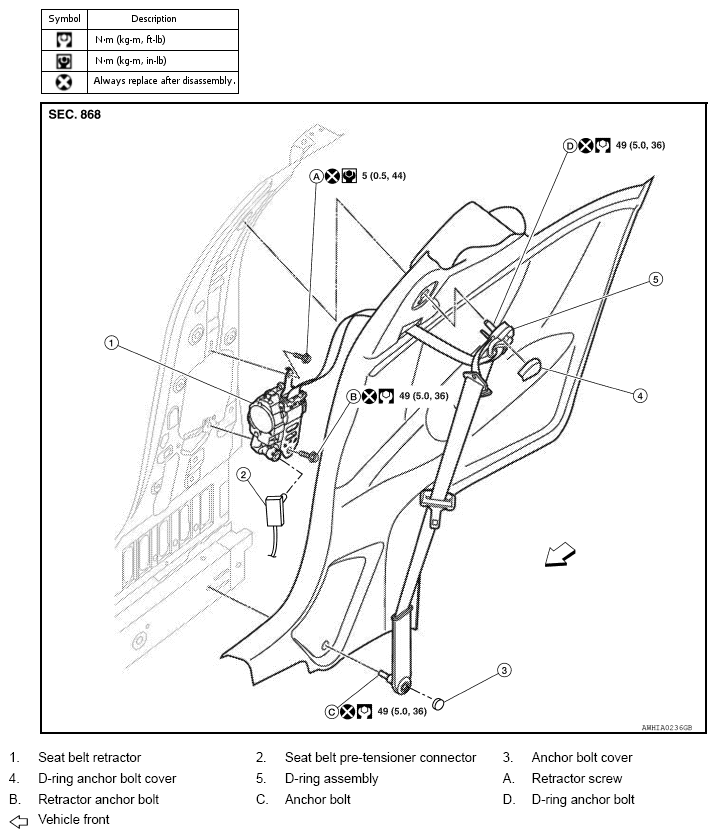

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications (Sedan Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Exploded View Of Front Seat Belt With Torque Specifications (Coupe Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
