Connector Terminal Identification - Sedan With Remote Keyless Entry

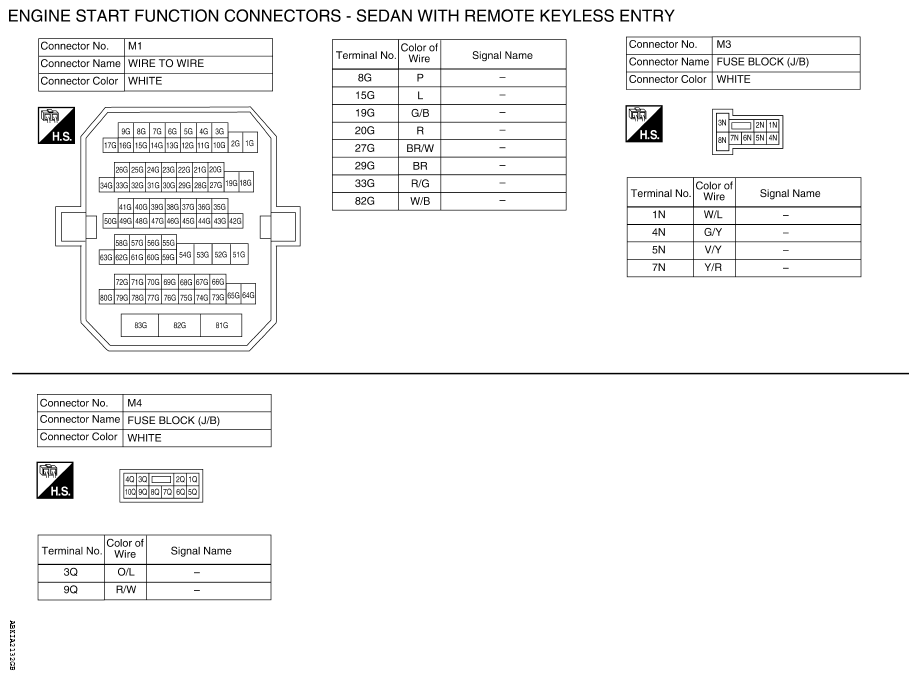

Fig 1: Identifying Engine Start Function Connectors - Sedan With Remote Keyless Entry (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

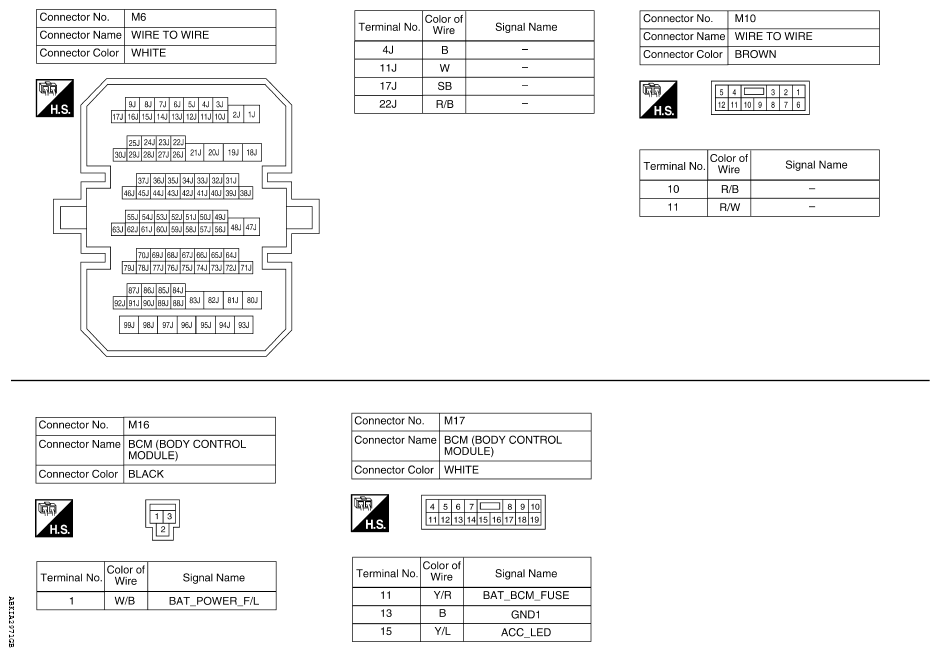

Fig 2: Identifying Engine Start Function Connectors - Sedan With Remote Keyless Entry (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

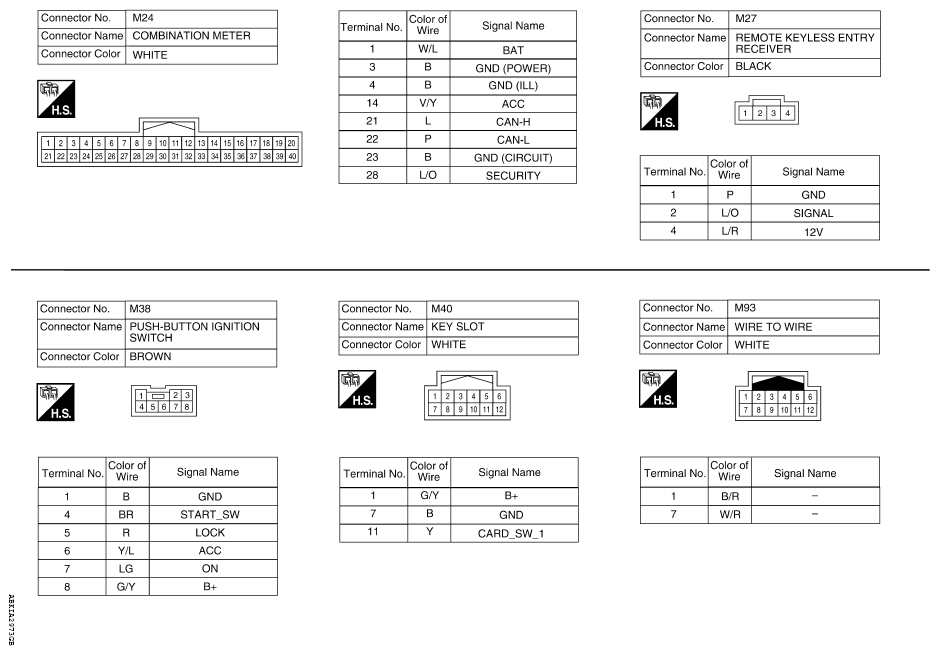

Fig 3: Identifying Engine Start Function Connectors - Sedan With Remote Keyless Entry (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

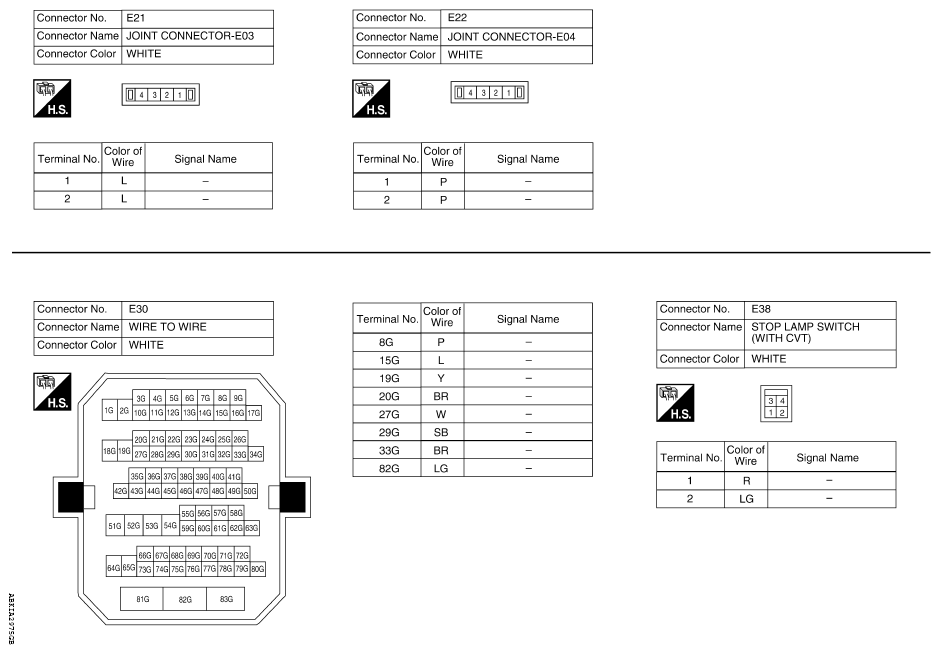

Fig 4: Identifying Engine Start Function Connectors - Sedan With Remote Keyless Entry (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

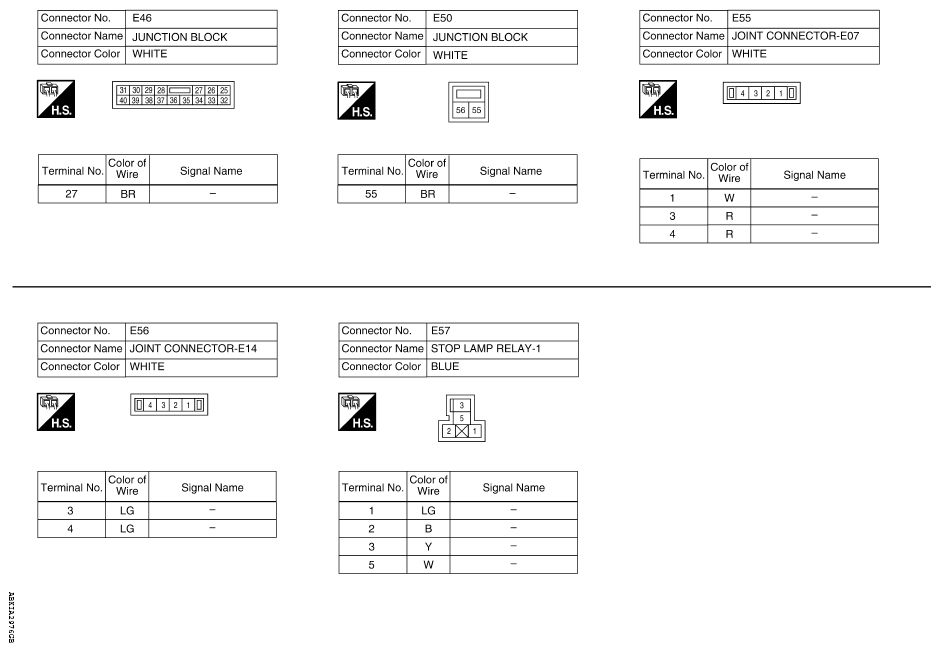

Fig 5: Identifying Engine Start Function Connectors - Sedan With Remote Keyless Entry (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

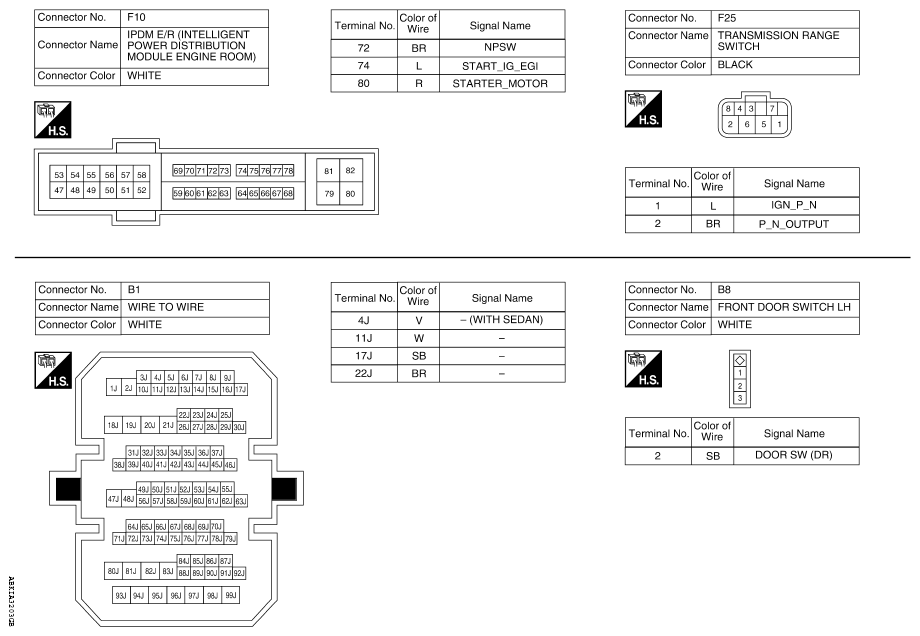

Fig 6: Identifying Engine Start Function Connectors - Sedan With Remote Keyless Entry (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

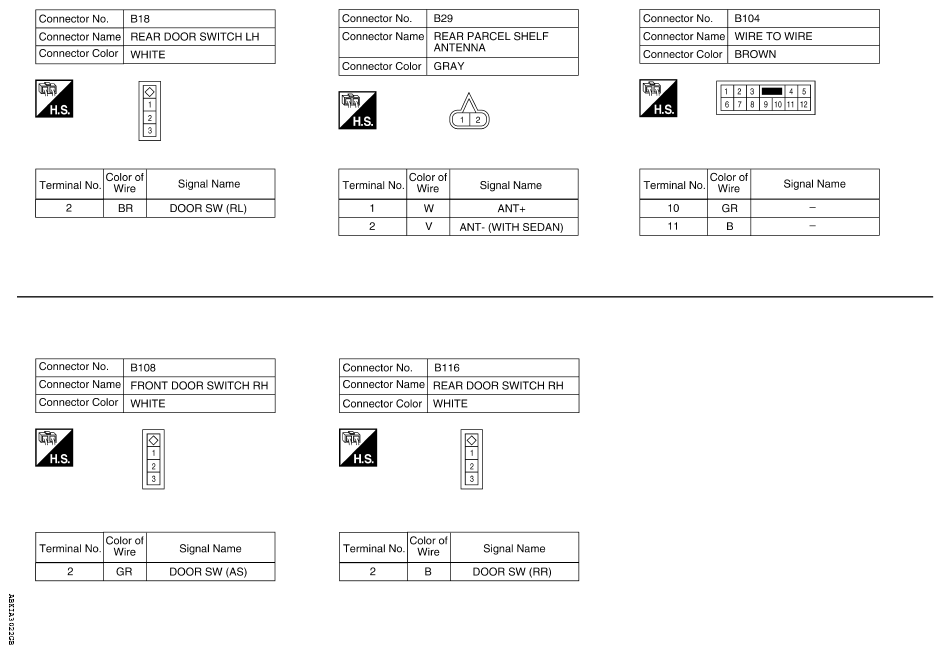

Fig 7: Identifying Engine Start Function Connectors - Sedan With Remote Keyless Entry (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

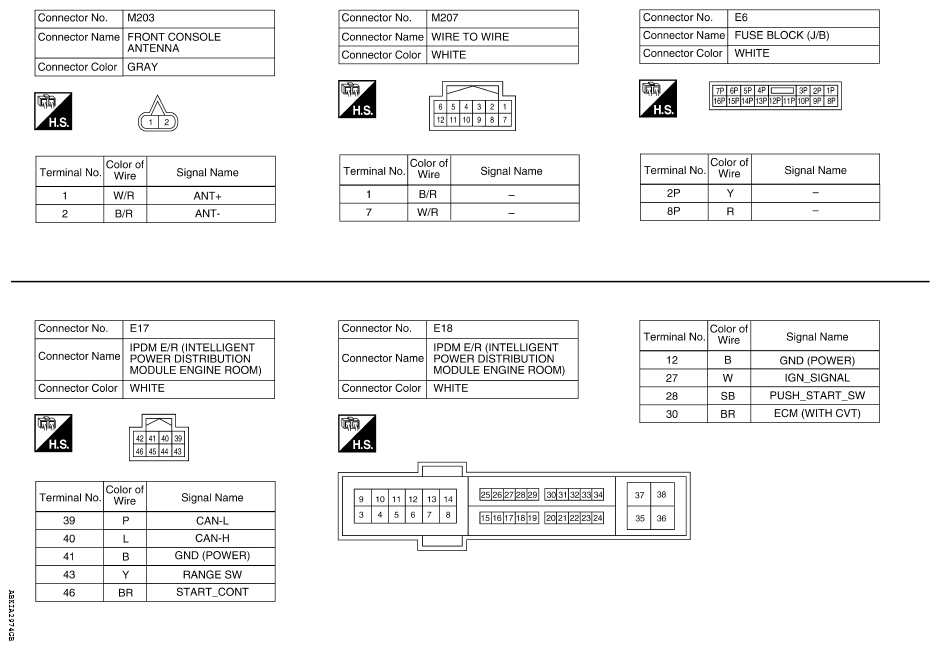

Fig 8: Identifying Engine Start Function Connectors - Sedan With Remote Keyless Entry (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Engine Start Function Connectors - Sedan With Remote Keyless Entry (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
