Worksheet Sample

WARNING: This page is about a different variant/trim than selected.

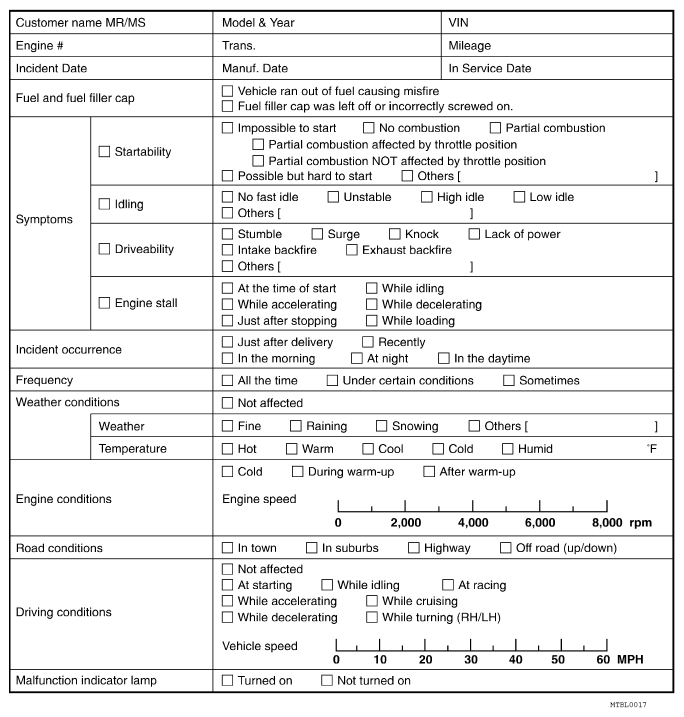

Fig 1: Diagnostic Work Sheet
G08433269Courtesy of NISSAN NORTH AMERICA, INC.
