System Diagram

WARNING: This page is about a different variant/trim than selected.

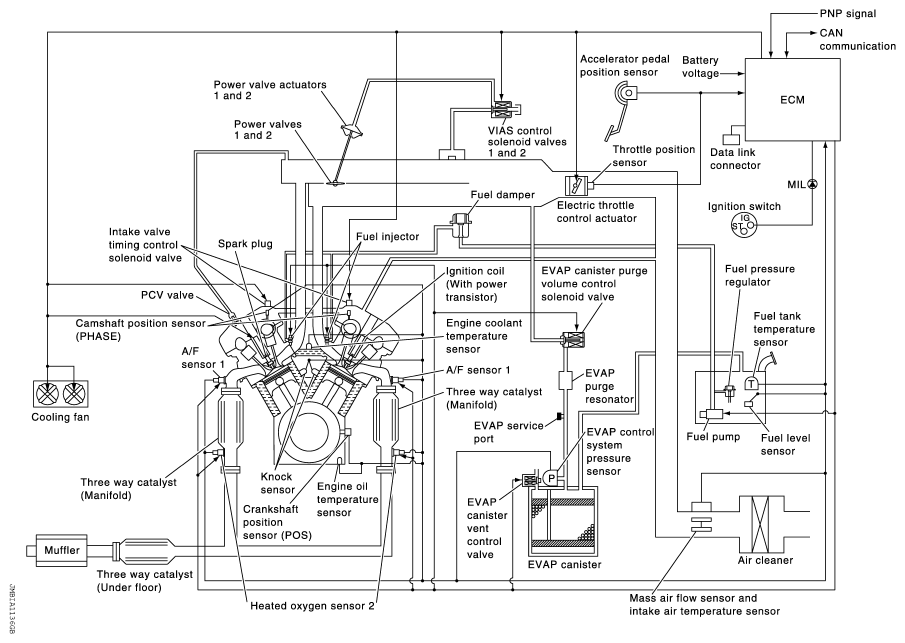

Fig 1: Engine Control System Diagram
G08433285Courtesy of NISSAN NORTH AMERICA, INC.
