Exploded View

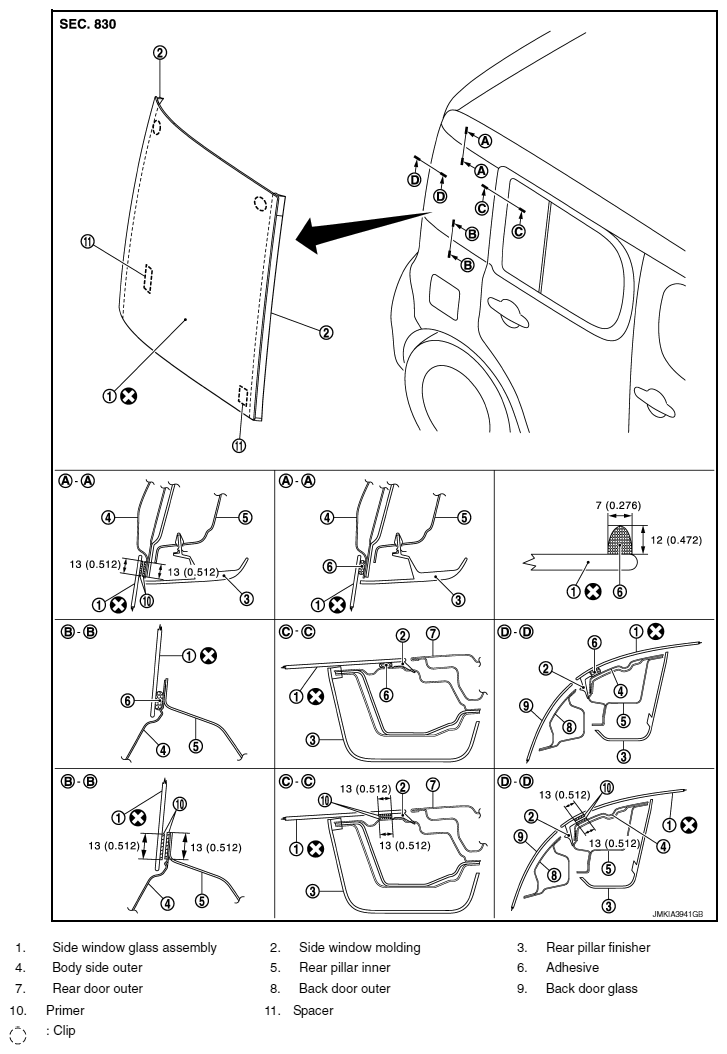

Fig 1: Exploded View Of Side Window Glass
G08136660Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
